Programming manual.
CNC 8070
TOOL COMPENSATION
13.
Tool radius compensation
·249·
(REF: 1709)

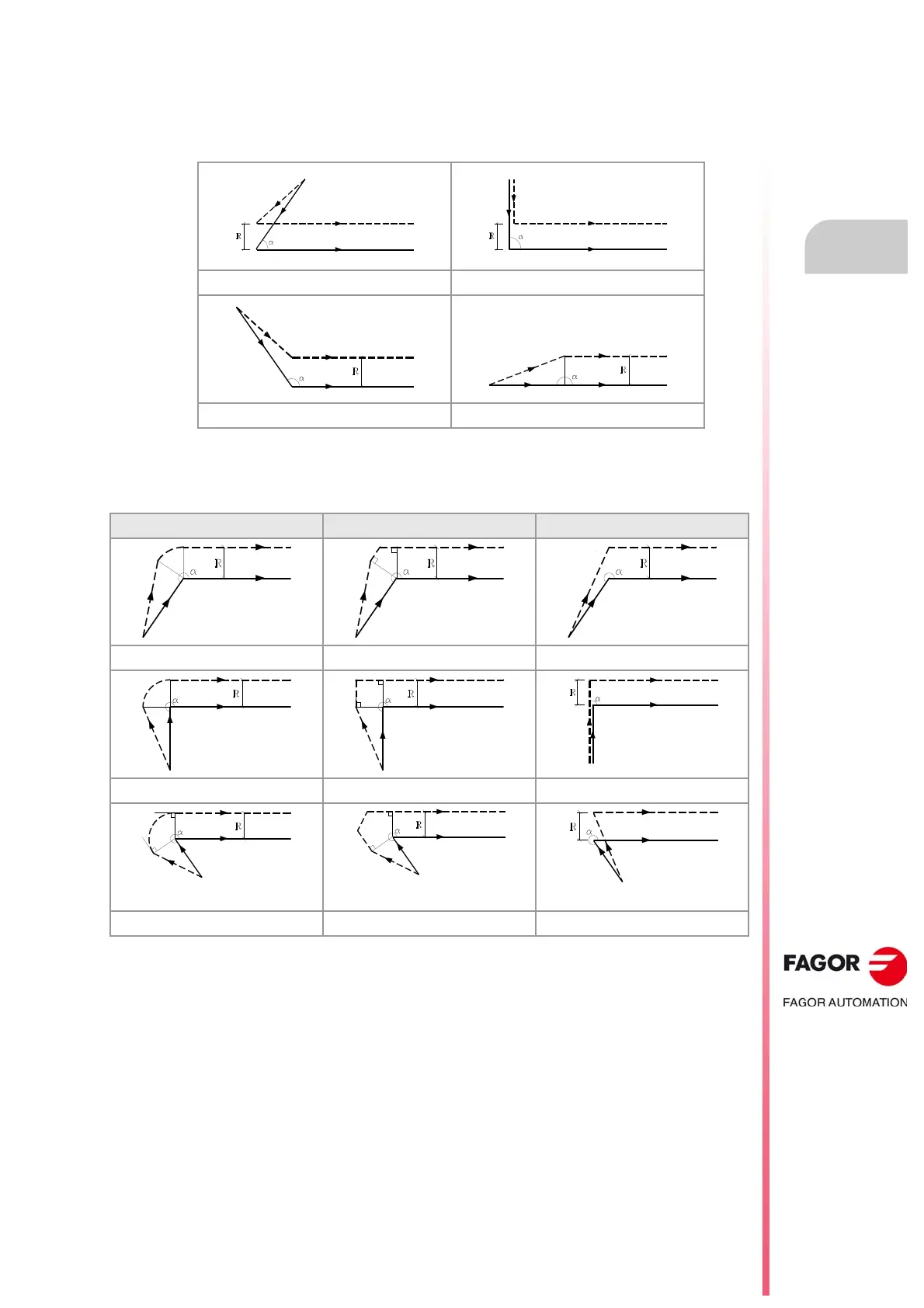

STRAIGHT-TO-STRAIGHT PATH
When the angle between paths is smaller than or equal to 180º, the way radius compensation
is activated is independent from the functions G136/G137 or G138/G139 selected.
When the angle between paths is greater than 180º, the way radius compensation is
activated depends on the functions selected for type of beginning (G138/G139) and type of
transition (G136/G137).
0º < < 90º = 90º
90º <
< 180º = 180º
G139/G136 G139/G137 G138
180º <
< 270º 180º < < 270º 180º < < 270º
= 270º = 270º = 270º
270º <
< 360º 270º < < 360º 270º < < 360º
