Right-hand rule

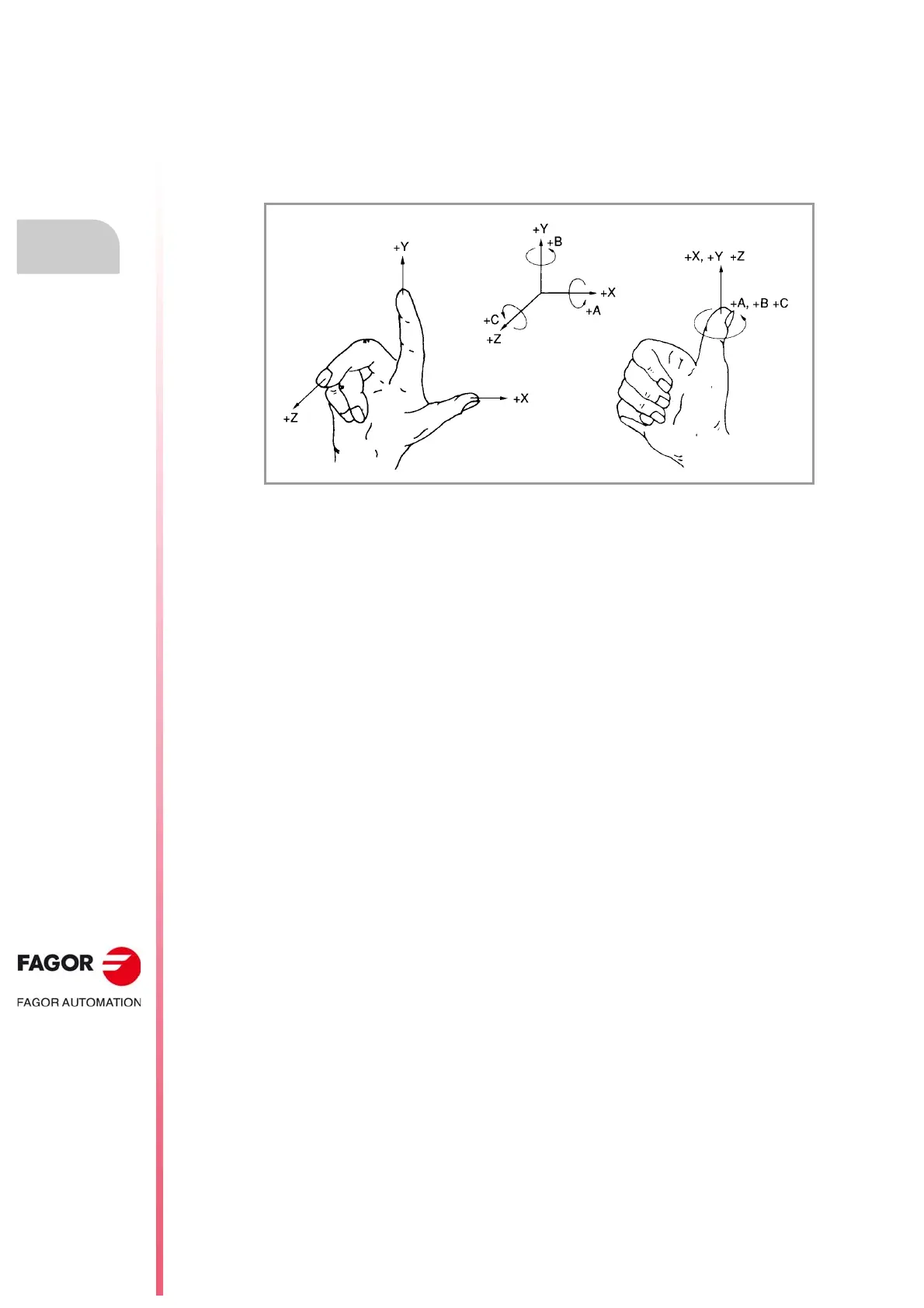

The direction of the X-Y-Z axes can easily be remembered using the right-hand rule (see
the drawing below).
On rotary axes, the positive turning direction is determined by the direction pointed by your
fingers when holding the rotary axis with your hand while your thumb points in the positive
direction of the linear axis.
