Programming manual.
CNC 8070
ORIGIN SELECTION
5.
Zero offsets (G54-G59/G159)
·91·
(REF: 1709)
Only one incremental zero may be active at a time for each axis; therefore, applying an
incremental zero offset on an axis cancels the one that was active on that axis. The offsets
on the rest of the axes are not affected.
The incremental zero offset is not canceled after applying a new absolute zero offset (G54-
G59 or G159).
Considerations
An incremental zero offset, by itself, does not cause any axis movement.
When homing an axis in JOG mode, the incremental zero offset for that axis is canceled.
Function properties
Function G158 is modal.
On power-up, the CNC assumes the incremental zero offset that was active when the CNC
was turned off. On the other hand, the incremental zero offset is neither affected by functions
M02 and M30 nor by RESETTING the CNC.
··· (Machining of profile A2)
N300 G55 (It applies the second absolute zero offset)
(The incremental zero offset stays active)
··· (Machining of profile A3)
N200 G158 Z-180 (It applies the second incremental zero offset)
··· (Machining of profile A4)

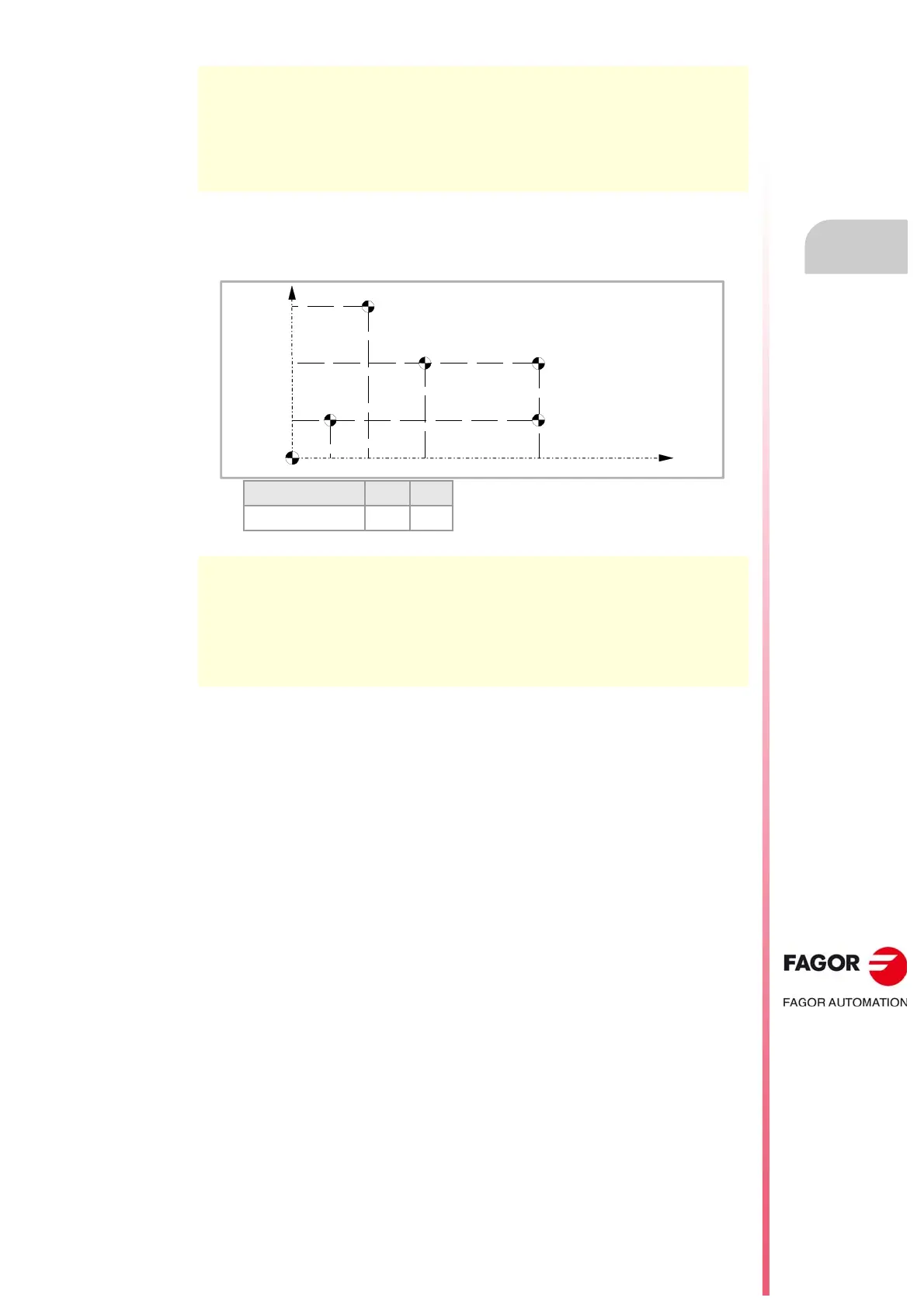

N100 G54 (Apply absolute zero offset)
N200 G158 X20 Y60 (It applies the first incremental zero offset)
N300 G158 X50 Y30 (It applies the second incremental zero offset)
N400 G158 X100 (It applies the third incremental zero offset)
N500 G158 Y0 (It applies the fourth incremental zero offset)
N600 G158 X0 (Cancel incremental zero offset)
Y
X
80
W
50
20
20 40 70 120
W
W
W
W
M
