IDEA Auto-SYNC with RGB/VGA/DVI Analog Video
112 TIMS MVP™ Setup and Configuration Guide
To correct the above example, change the HTOTAL value to a lower number by entering a lower
number in the field or using the down arrow key to change the value. Keep changing the value
until the shapes appear correct.
In this last example, you will see the aspect ratio distorted when viewing a video image with
text.

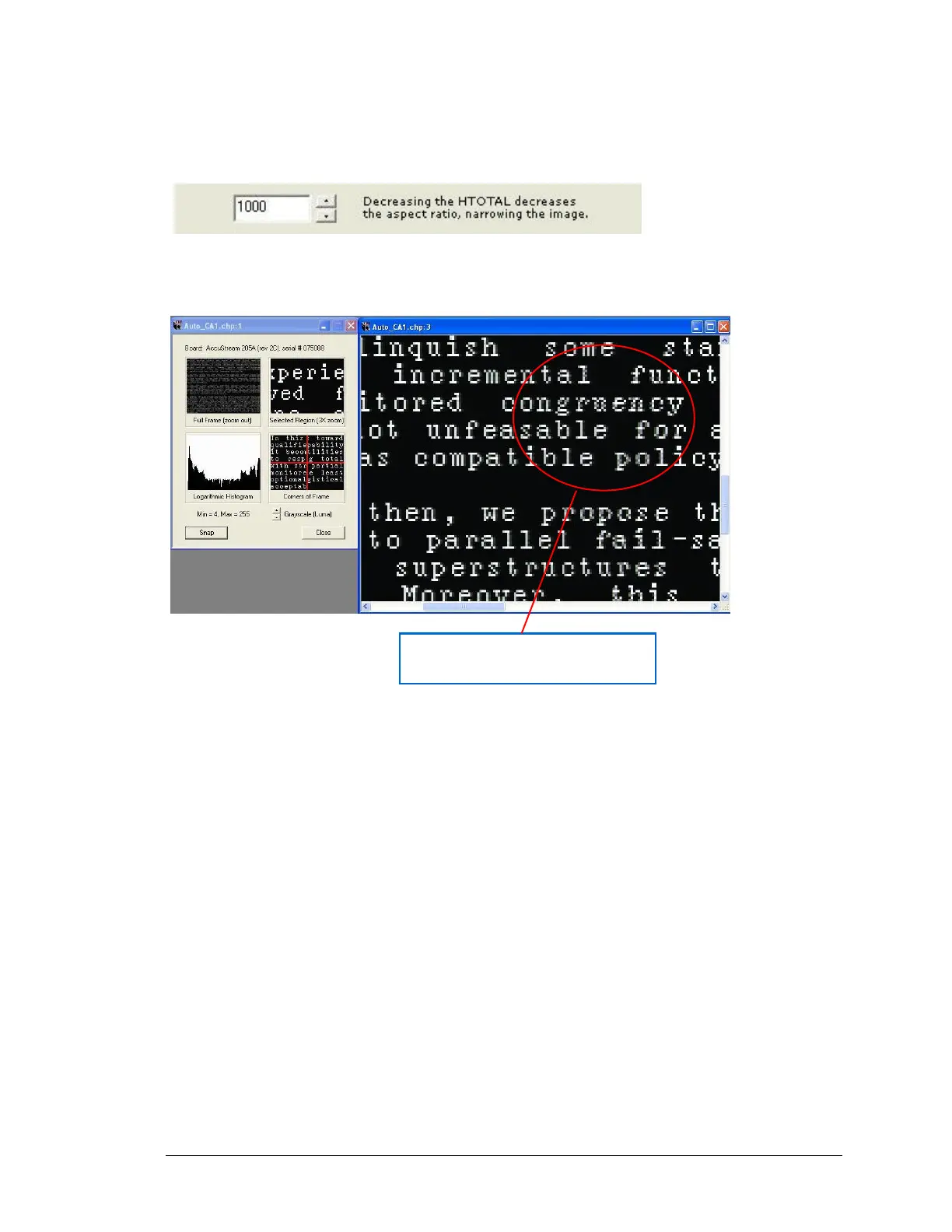

Figure 22: Example of Aspect Ratio with text that needs adjustment
When text is distorted, it is recommended that you change the Field Polarity.
