Using Auto-SYNC for Digital Input Connections
194 TIMS MVP™ Setup and Configuration Guide
Using Auto-SYNC for SDTV Connections
This chapter describes using Auto-SYNC for SDTV connections with AccuStream HD+ and HD+C
frame grabbers
Select the Connection Type
When you click OK, IDEA Auto-SYNC will first prompt you to identify the AccuStream board
mode. Select the connection you have to the AccuStream board and then click OK. If you want
to keep the selection as your default, click the checkbox below the connection selection so that
this dialog does not appear again.

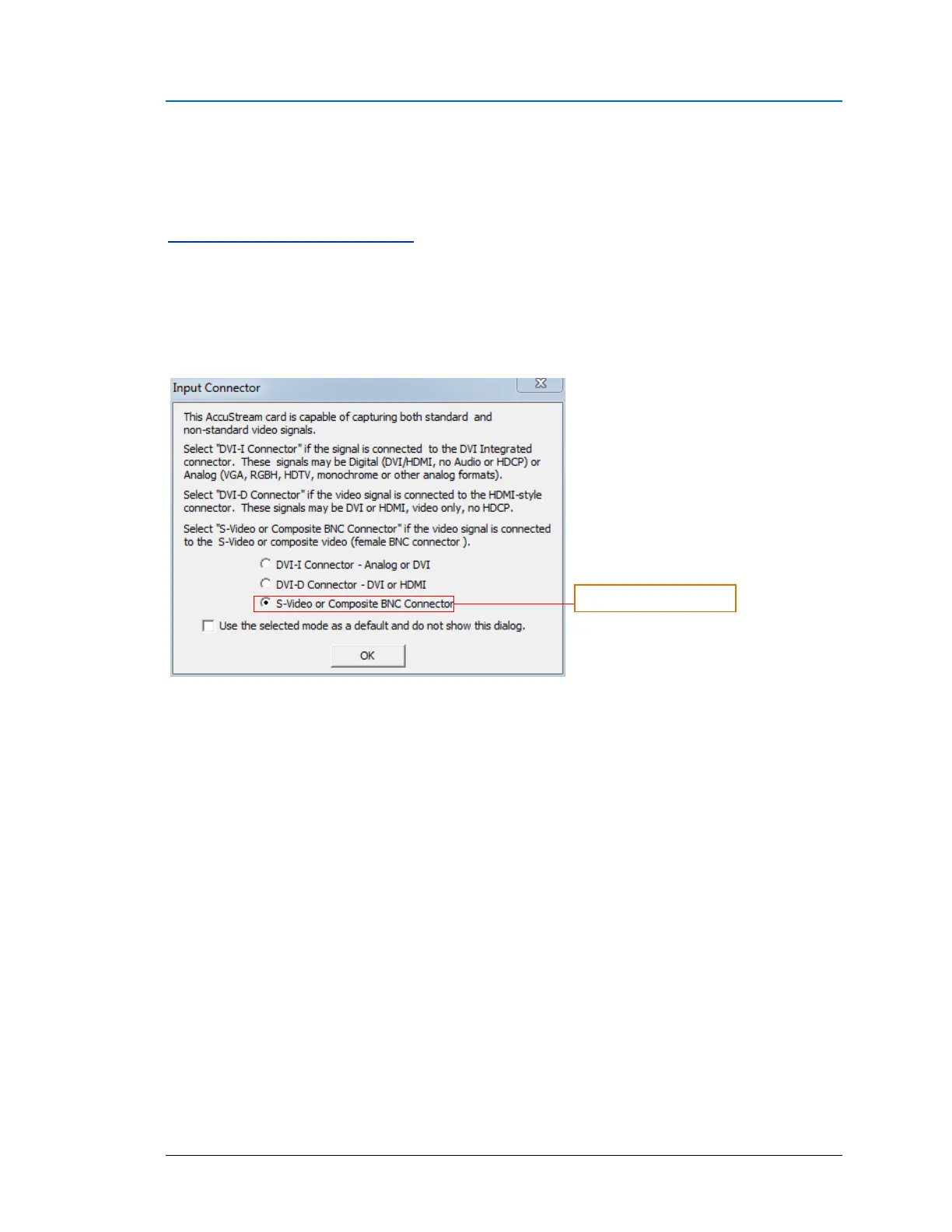

Figure 95: AccuStream Input Connector
After you make your selection and click OK, the Hints dialog appears. It is recommended that
you read the dialog and click OK. If you do not want this dialog to appear each time you start an
Auto-SYNC session, uncheck the Always display hints before an Auto-SYNC session box.
Note: SDTV is defined as Standard Definition Television formats:
RS170Yus, NTSC Color/Monochrome 640x480 or PAL 768x576, S-Video or
Composite video signal.
