Using Auto-SYNC for Digital Input Connections
236 TIMS MVP™ Setup and Configuration Guide
Changing Connection Settings
The options in the Connection tab concern the physical connection of the AccuStream board, as
well as its channel and sync source. If there are multiple AccuStream boards installed in the
current system or if you are setting up multiple channels, you should also have multiple CHP
files.

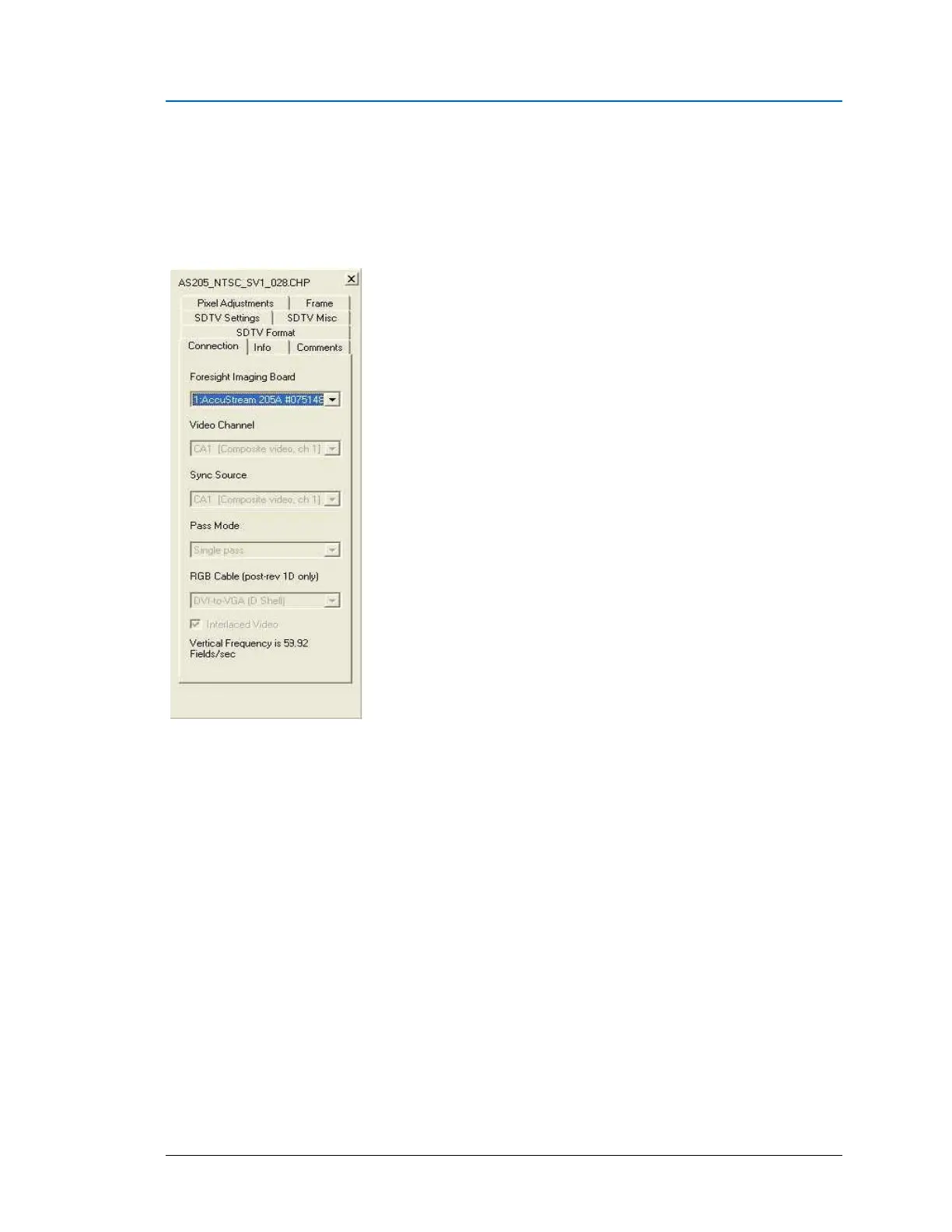

Figure 131: Connection video settings
The Connection tab is used to select boards, but is not used to select the video source; those
selections are grayed out.
