Changing Frame Video Settings
This option allows you to modify options that affect the video frame.

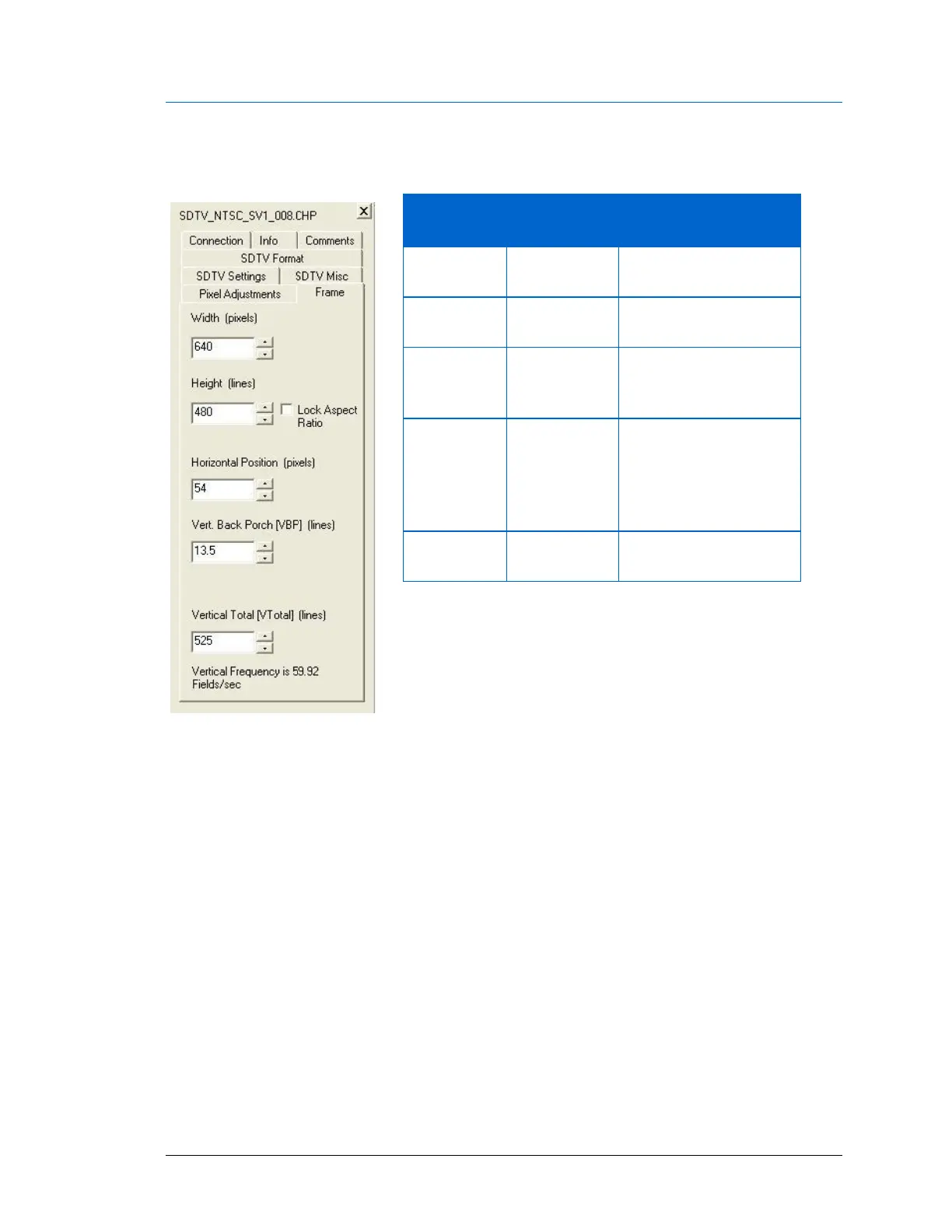

Figure 136: Frame Video Settings
The table defines some of the terms available under the Frame tab.
Option
Default
Value
Description
Width
640
Number of pixels in a
line in the image.
Height
480
Number of lines in the
image.
Horizontal
Position
54 pixels
Accounts and adjusts
for board delays (due to
electronics.
Vertical Back
Porch
13.5 scan
lines
Number of vertical
blanking lines in the
video signal that does
not include any vertical
sync information.
Vertical Total
0 scan lines
Total number of vertical
lines in the video signal.
