Changing Pixel Adjustments Settings
The Pixel Adjustments settings are not adjustable in SDTV mode.

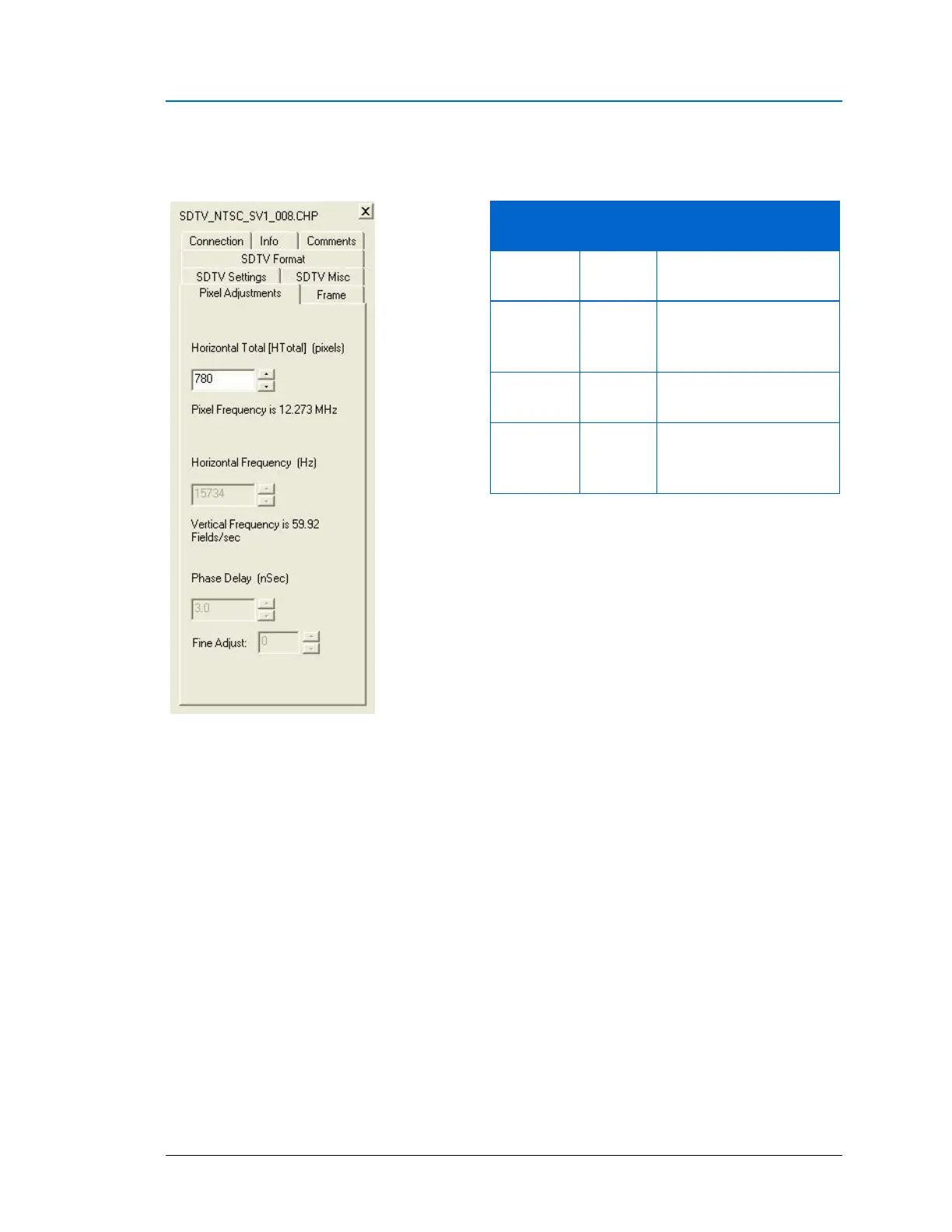

Figure 135: Pixel Adjustment video settings
Option
Default
Value
Description
Horizontal
Total
780 pixel
Total number of pixels
in one video scan-line.
Horizontal
Frequency
15734 Hz
Number of scan lines
transmitted per second
in the video signal.
Phase
Delay
3.0 nSec
Phase of the sampling
clock.
Fine Adjust
0.0
Sets fine phase
adjustment value for
AccuStream boards.
