190 TIMS MVP™ Setup and Configuration Guide
Changing Frame Video Settings
This option allows you to modify options that affect the video frame.
The following table defines some of the terms available under the Frame tab.

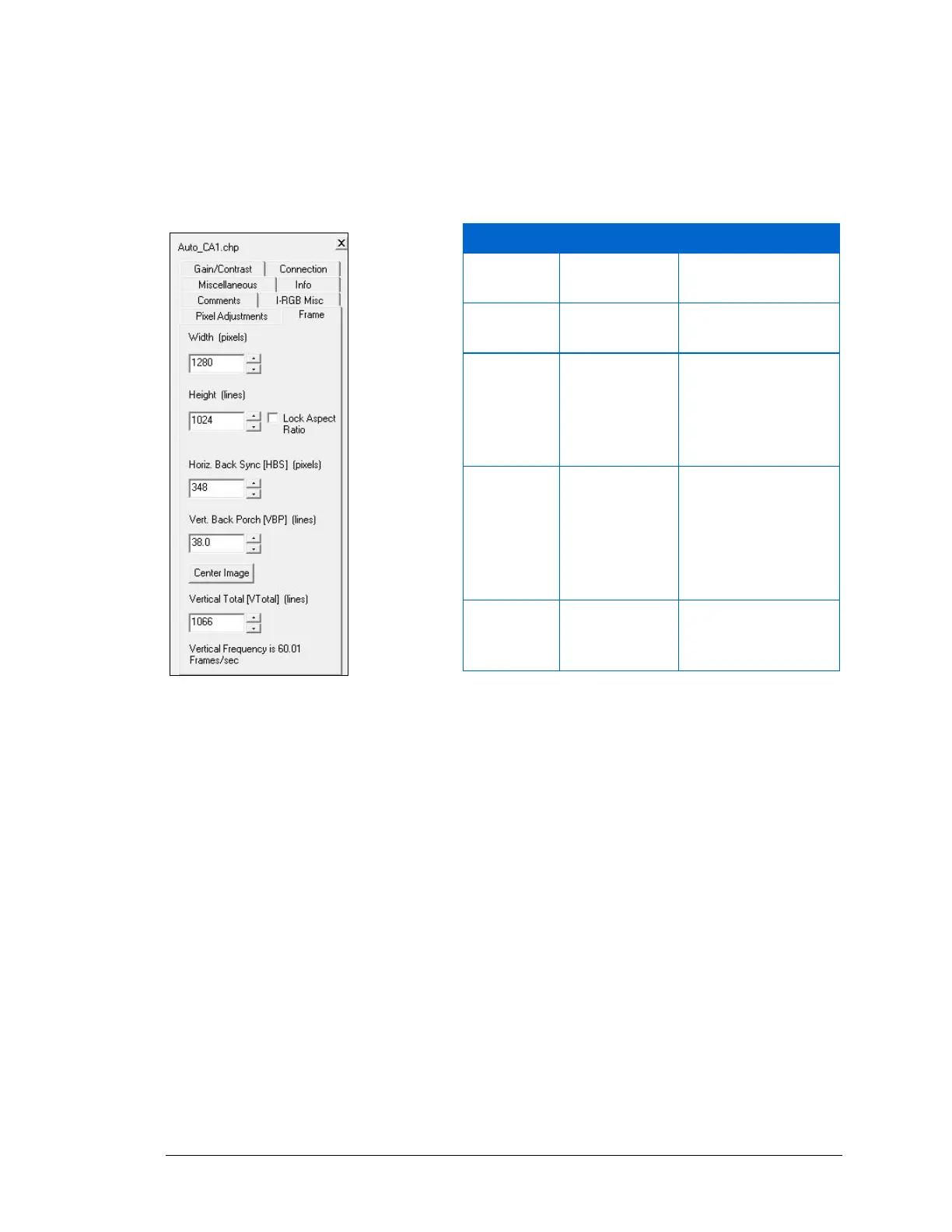

Figure 91: Frame Video Settings
Option
Default Value
Description
Width
1280
Number of pixels in a
line in the image.
Height
1024
Number of lines in
the image.
Horizontal
Back Sync
348 pixels
The time period from
the beginning of the
horizontal sync pulse
to the beginning of
active video
Vertical
Back Porch
38.0
scan lines
Number of vertical
blanking lines in the
video signal that
does not include any
vertical sync
information.
Vertical
Total
1066
scan lines
Total number of
vertical lines in the
video signal.
