Examples
In this example, the video image is too large and extends beyond the top edge.

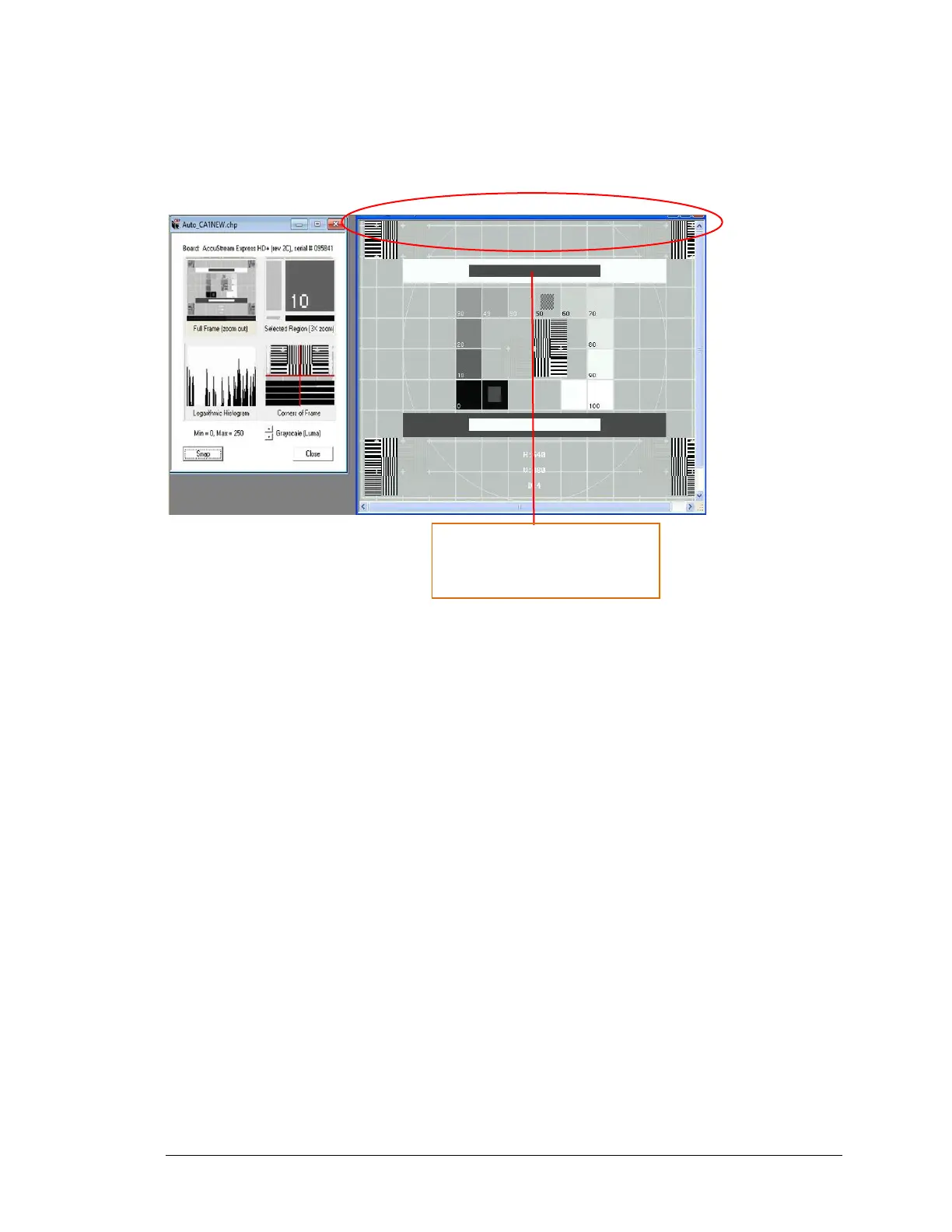

Figure 114: Example of video image that is clipped at the top edge
To adjust the image, decrease the VBP to move the image down. This will align the video image
to the top edge.
The image is clipped at the top
edge. The bottom edge is properly
aligned.
