Using Auto-SYNC for Digital Input Connections
TIMS MVP™ Setup and Configuration Guide 229
AccuStream Auto-SYNC Wizard Step 6: Adjust Miscellaneous
Settings for SDTV Connections
The final step of the Auto-SYNC Wizard attempts to correct some basic problems that can occur
with some video signals.

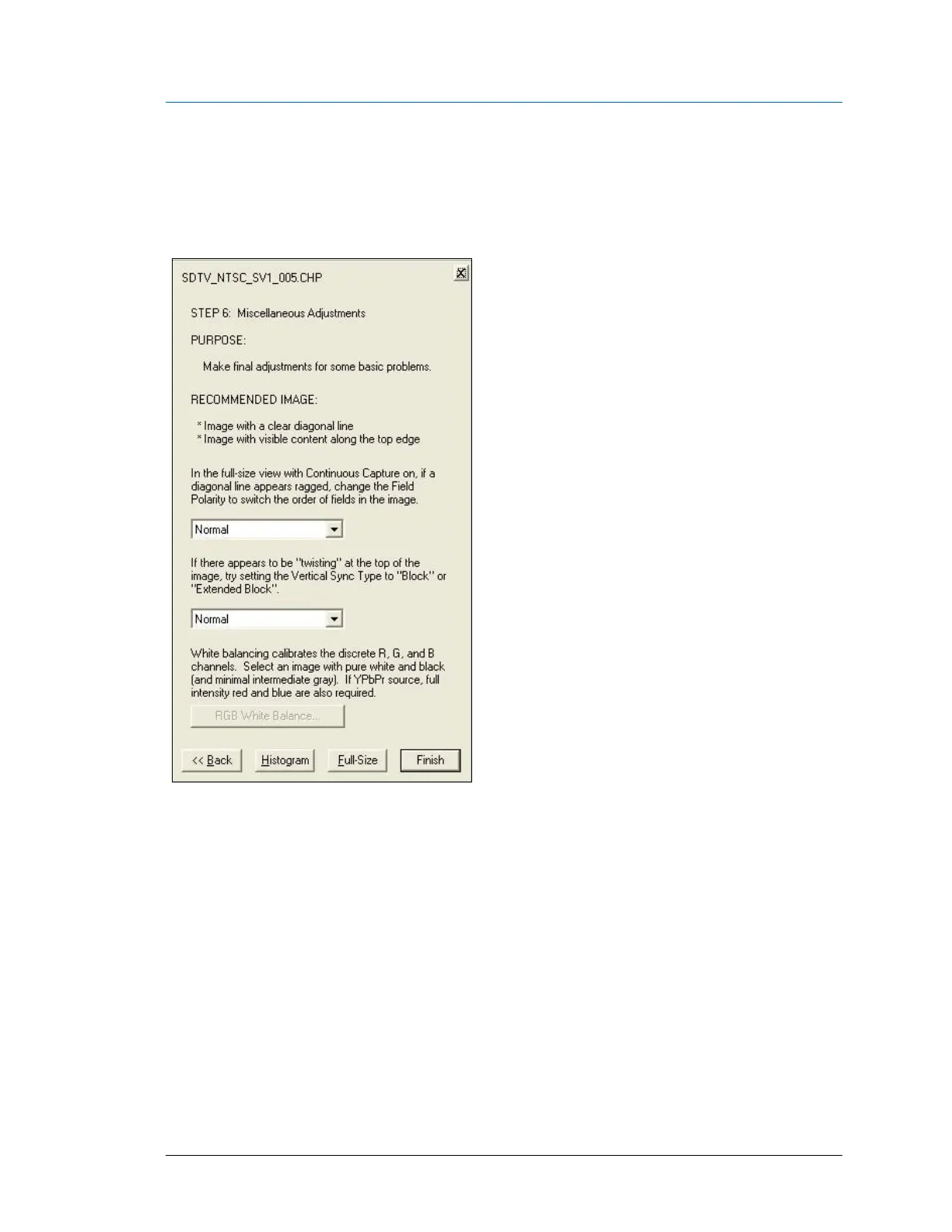

Figure 125: Auto-SYNC Wizard Step 6
A full-size view on an image that has content along the top edge and contains some diagonal
lines or text is recommended; the SMPTE or linearity patterns are ideal.
