Get Connected
TIMS MVP™ Setup and Configuration Guide 11
Connecting Your Video Source to AccuStream HD+
DVI-IN Video Sources

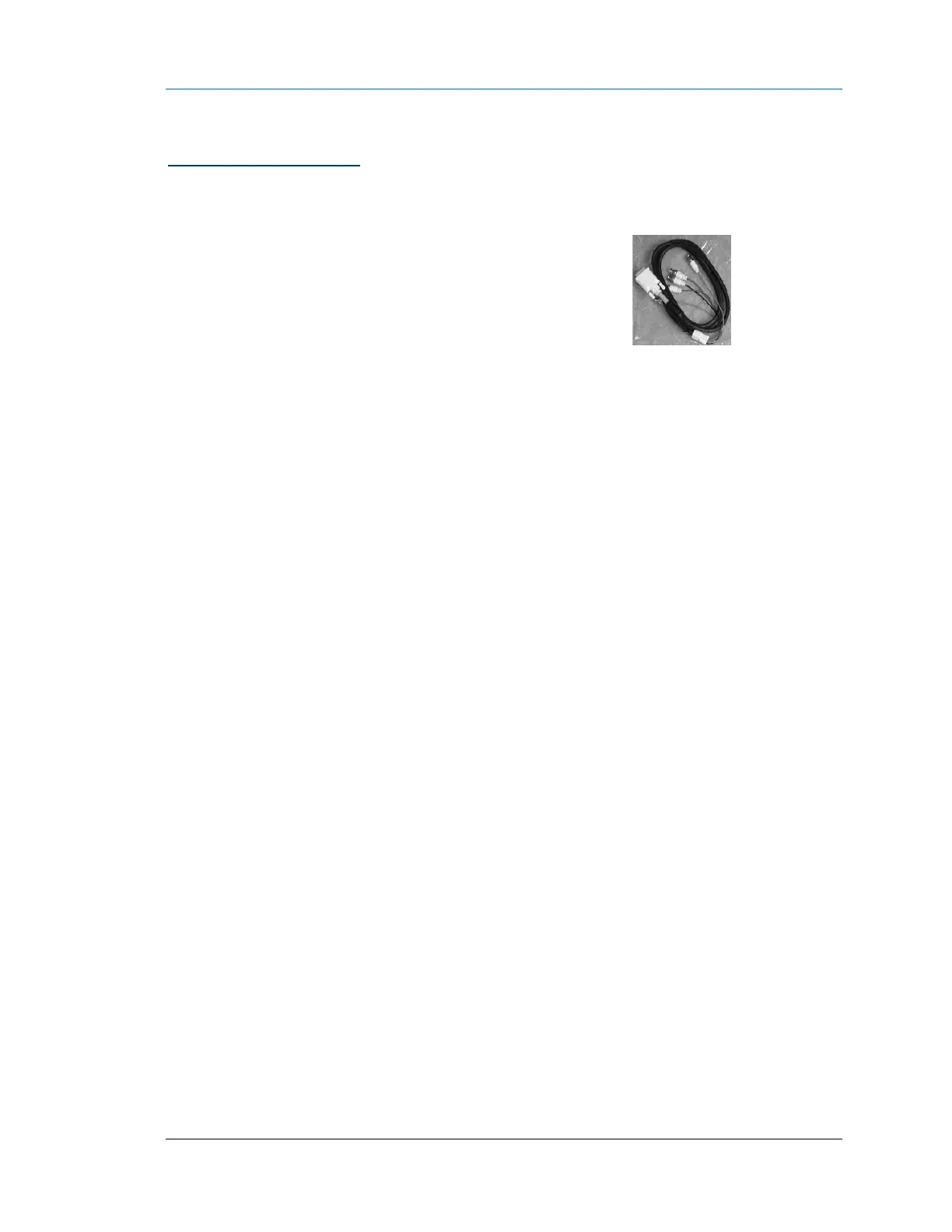

A DVI to BNC cable is supplied for imaging devices:
For RGB Connections
DVI to 5-BNC Cable (P/N: 030193), Male
Connection Steps:
Using the color-coded BNC wires as your guide:
1. Connect DVI to TIMS .
2. Make the Red, Green, and Blue connections to device.
3. Make the Sync connection to device:
• If Composite Sync, use Gray for Comp/H-Sync
• If Horizontal Sync, use Gray for H-Sync
• If Vertical Sync, use Black for V-Sync
For Monochrome Connections
DVI to 5-BNC Cable (P/N: 030193), Male
Connection Steps:
Using the color-coded BNC wires as your guide:
1. Connect DVI to TIMS .
2. Make the Green to Monochrome video connection.
3. Make the Sync connection:
• If Composite Sync, use Gray for Comp/H-Sync
• If Horizontal Sync, use Gray for H-Sync
• If Vertical Sync, use Black for V-Sync
