IDEA Auto-SYNC with RGB/VGA/DVI Analog Video
TIMS MVP™ Setup and Configuration Guide 141
In the next example, the lines are broken and distorted. In order to adjust the image, change the
Field Polarity.

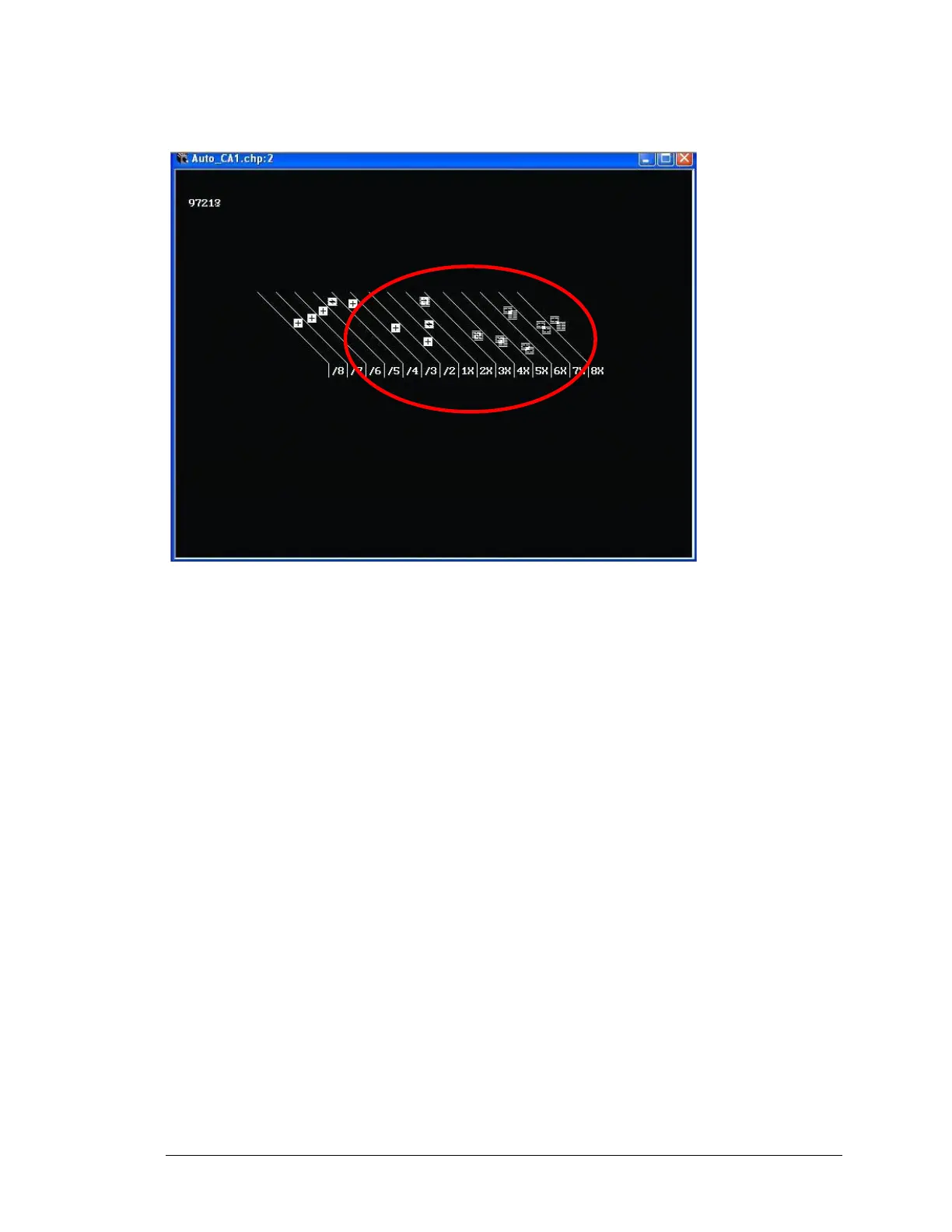

Figure 46: Example of video image with the improper Field Polarity setting
Tips:
▪ Field Polarity
Fields are jagged in interlaced image – select Odd Field Up
▪ Vertical Sync Type
Flagging at the top of the image – select Block as source
