Using Auto-SYNC for Digital Input Connections
TIMS MVP™ Setup and Configuration Guide 197
When the Auto-SYNC wizard start page appears, ensure that your PC monitor is properly
calibrated and you are working in the same illumination as the system you will use. Use the
calibration dialog to help you determine what changes you need to make, if any. Use the Snap
(F5) button to refresh the Auto-SYNC window.
Note: Analog Images used in this example.

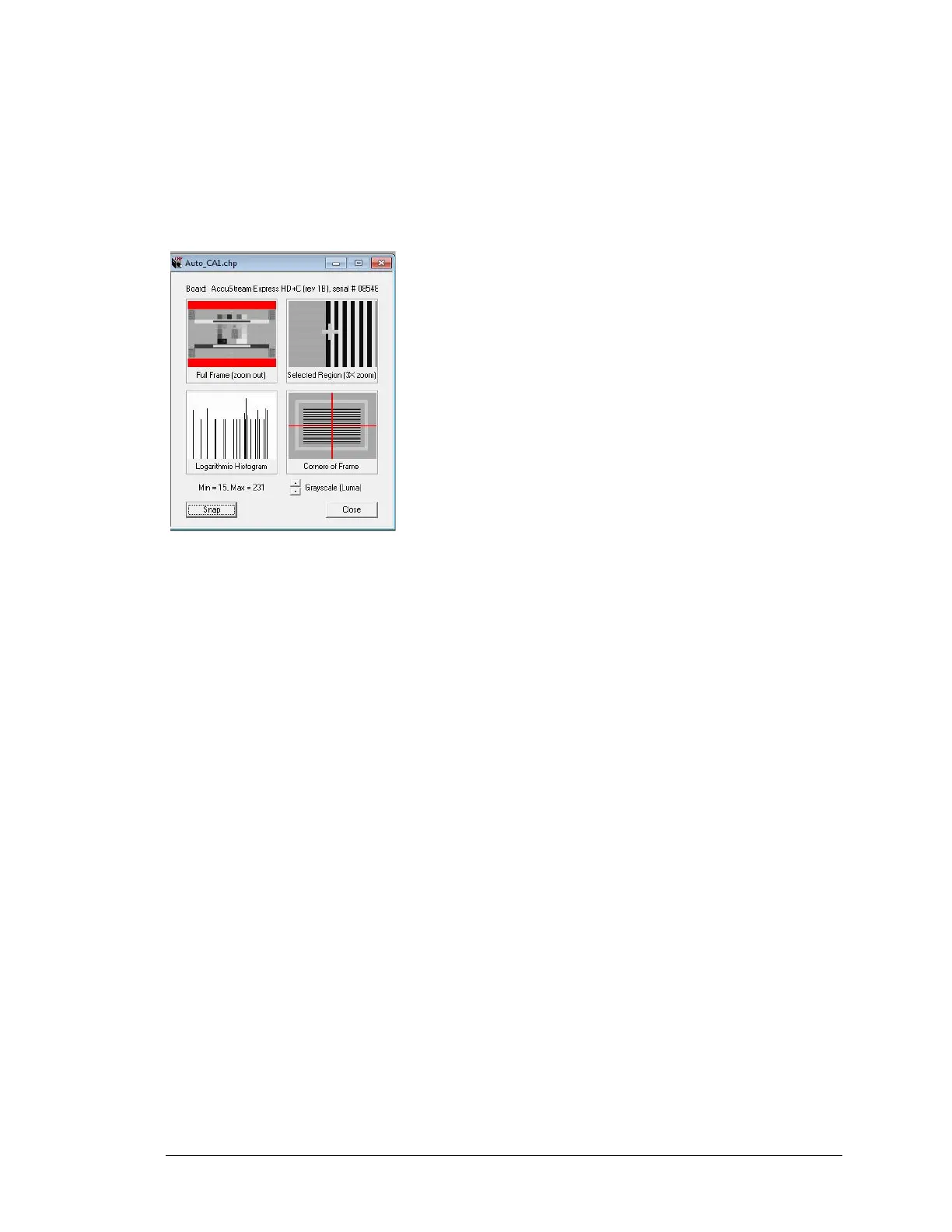

Figure 100: Calibration Dialog
After selecting the input video being provided, you can start the Auto-SYNC wizard. See Running
the Auto-SYNC Wizard on page 105.
