Using Auto-SYNC for Digital Input Connections
TIMS MVP™ Setup and Configuration Guide 225

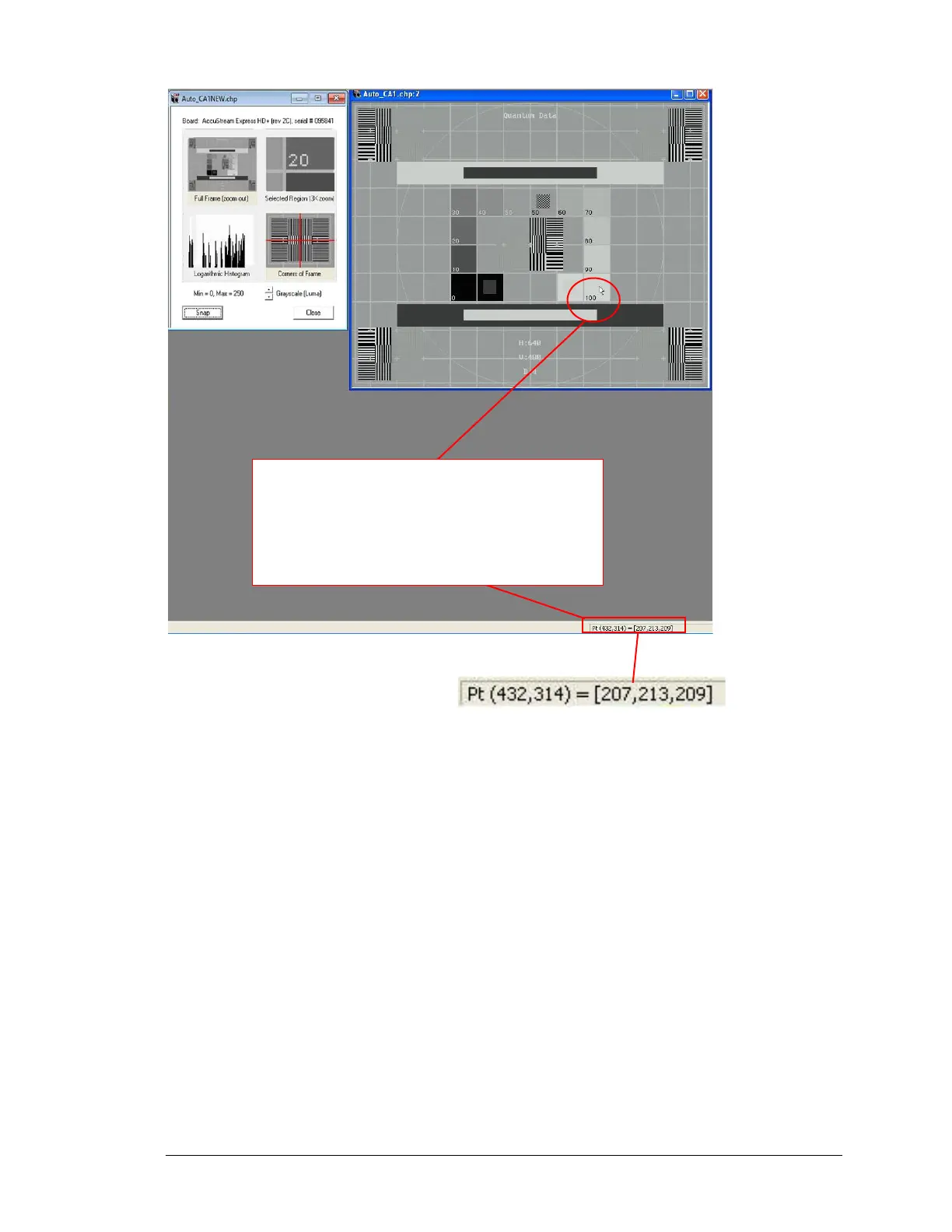

Figure 122: Example of video image where the contrast (White Level) is set too low
To adjust this value, do the following:
1. Click your mouse cursor over the Contrast field on the left hand side.
2. Move your mouse cursor over the lowest Contrast (White) value on the video image.
3. Use the up arrow key to move the Contrast setting to 255,255,255 which is displayed in
the bottom right hand corner. Stop pressing the arrow key as soon as you reach the
255,255,255 level since if you continue to press the key, the Contrast value will be set
too high for contrast.
The mouse cursor must be positioned over the area
considered to have the correct Contrast value of 255,255,
255. This is white value.
Notice below in the left hand corner the value is set too
low.
