Default settings 5 Operation
DMS Go+ Edition 4 (05/2014) 5-7
Assignment of function key 4
You can assign a function to the function key 4 (see
Section Overview of operator's controls, page 4-2) to
be able to trigger this function any time. In this way, you
can switch for example from right-handed operation
over to left-handed operation by pressing the function
key
4 (option LH/RH).
The following settings are possible:
● NOT DEFINED (no function assigned)
● NOTE (choosing a comment, see page 6-20)
● µGRID (adding a MicroGrid, see page 6-29)
● LH/RH (instrument orientation, see page 5-6)
● OBSTR/CLEAR (no measurement possible or delete
reading,
see page 6-15 f.)
● FREEZE (display freeze, see page 5-52)
● CAL (calibration start, see page 5-25)
● ZOOM (gate magnifier, see page 5-53)

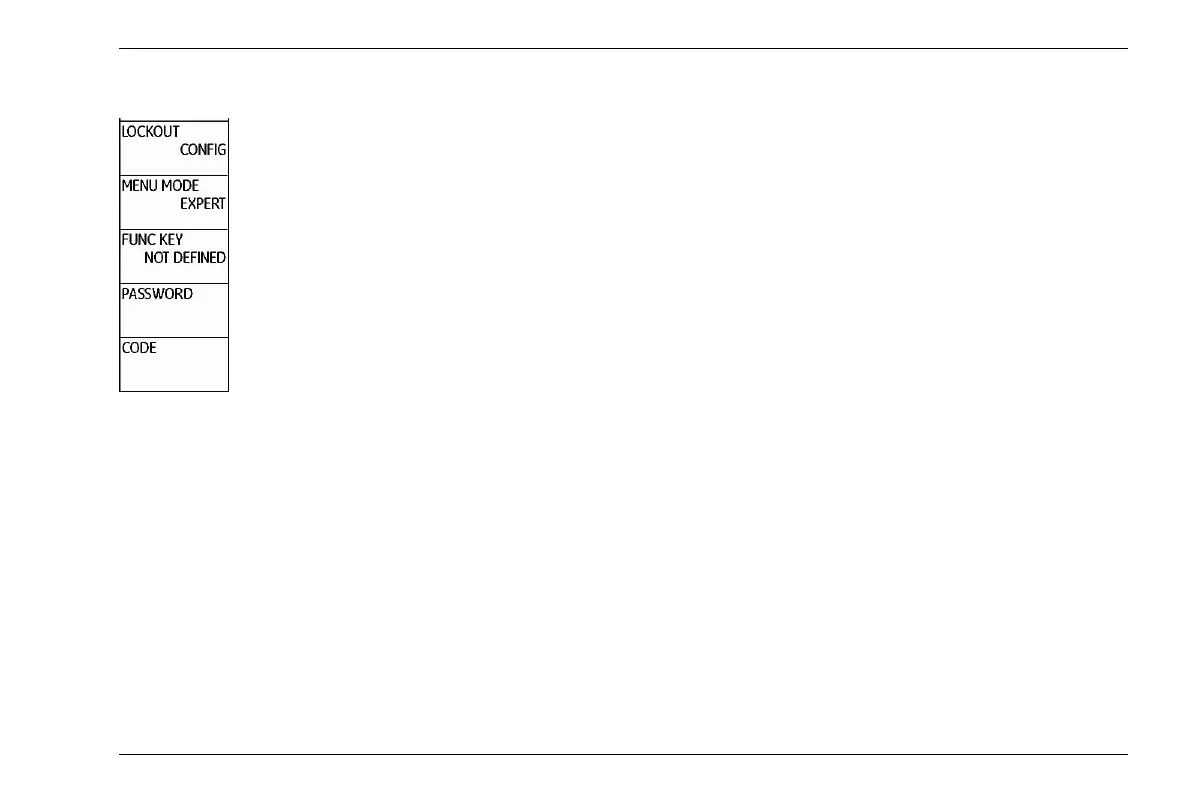

– In the function group CONFIG, select the function
FUNC KEY.
– Choose the required function.
– Press the function key 4 to test the function.
