Chapter 6: Receiver Configuration Modules Satellite Receiver Configuration
© Harmonic Inc. Manual p/n 101543/Ver 1.0 6-11 ProView 2900 Series/SW Version 1.94

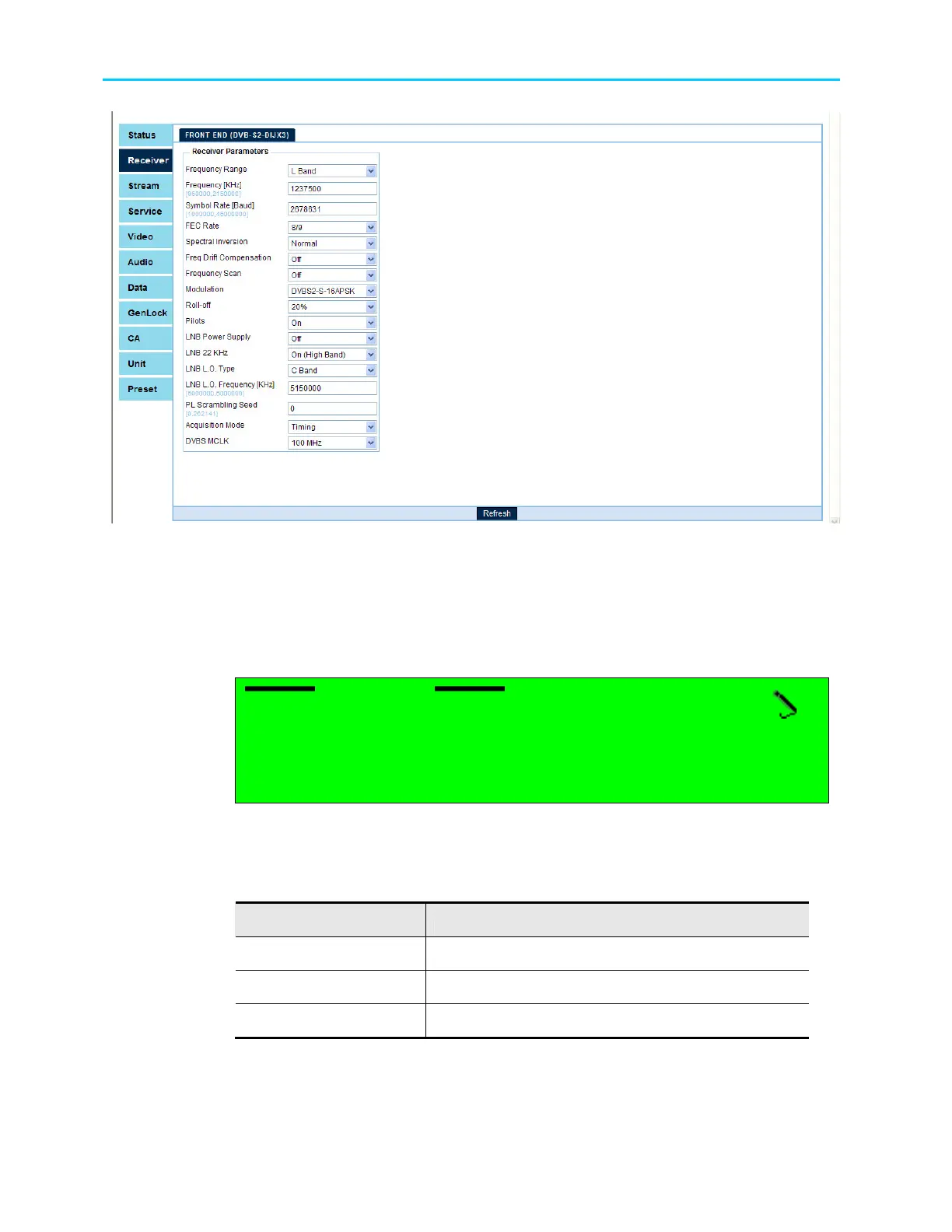

Figure 6-3: DVB-S2 Receiver Parameters Menu Screen
6.2.2.1. Frequency
The Frequency parameter must be set in accordance with the required satellite transponder
frequency. The frequency can be acquired from the satellite transponder information.
The following figure illustrates the L-Band Frequency screen.
Frequency
Frequency Frequency
Frequency
1.068000 [GHz]
1.068000 [GHz]1.068000 [GHz]
1.068000 [GHz]
<0.950000
<0.950000 <0.950000
<0.950000 -
--
- 2.150000>
2.150000> 2.150000>
2.150000>
The displayed frequency range corresponds with the frequency band that is currently
selected. Selecting the receiver frequency is done from the Frequency Range configuration
function, detailed in paragraph 6.2.1.10).
The following table lists the different bands, and their respective frequency ranges.
Band Frequency
L-Band
0.950000-2.150000GHz
C-Band
3.200000-4.200000GHz
Ku-Band
10.700000-12.750000GHz
