Chapter 3: ProView 2900 Control Interfaces Electrical Installation
© Harmonic Inc. Manual p/n 101543/Ver 1.0 3-5 ProView 2900 Series/SW Version 1.94
3.3. Electrical Installation
DANGER: Do not connect power to the unit until you have verified that the line voltage is
correct and the correct fuses are installed. Failure to do so may result in electrical shock. If
the unit is rack mounted, ensure that the unit is grounded to the rack and the rack is correctly
grounded.
CAUTION: This product relies on the building’s electrical installation for short-circuit
(overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 20 A
U.S. (240 VAC, 20 A international) is used on the phase conductors (all current-carrying
conductors).
ATTENTION: Pour ce qui est de la protection contre les courts-circuits (surtension), ce
produit dépend de l’installation électrique du local. Vérifier qu’un fusible ou qu’un disjoncteur
de 120 V alt., 20 A U.S. maximum (240 V alt., 20 A international) est utilisé sur les
conducteurs de phase (conducteurs de charge).
WARNUNG: Dieses Produkt ist darauf angewiesen, daß im Gebäude ein Kurzschluß-bzw.
Überstromschutz installiert ist. Stellen sie sicher, daß eine Sicherung oder ein Unterbrecher
von nicht mehr als 240 V Wechselstrom, 20 A (bzw. in den USA 120 V Wechselstrom, 20 A)
an den Phasenleitern (allen stromführenden Leitern) verwendet wird.
3.3.1. Cable Connection
The ProView 2900 provides all the connections on its rear panel. The rear panel is comprised
of audio outputs, video outputs, data outputs, and control interfaces.
Figure 3-2 illustrates the ProView 2992 rear panel in order show connector types and Table
3-1 describes the various connectors and cables required to connect the unit.

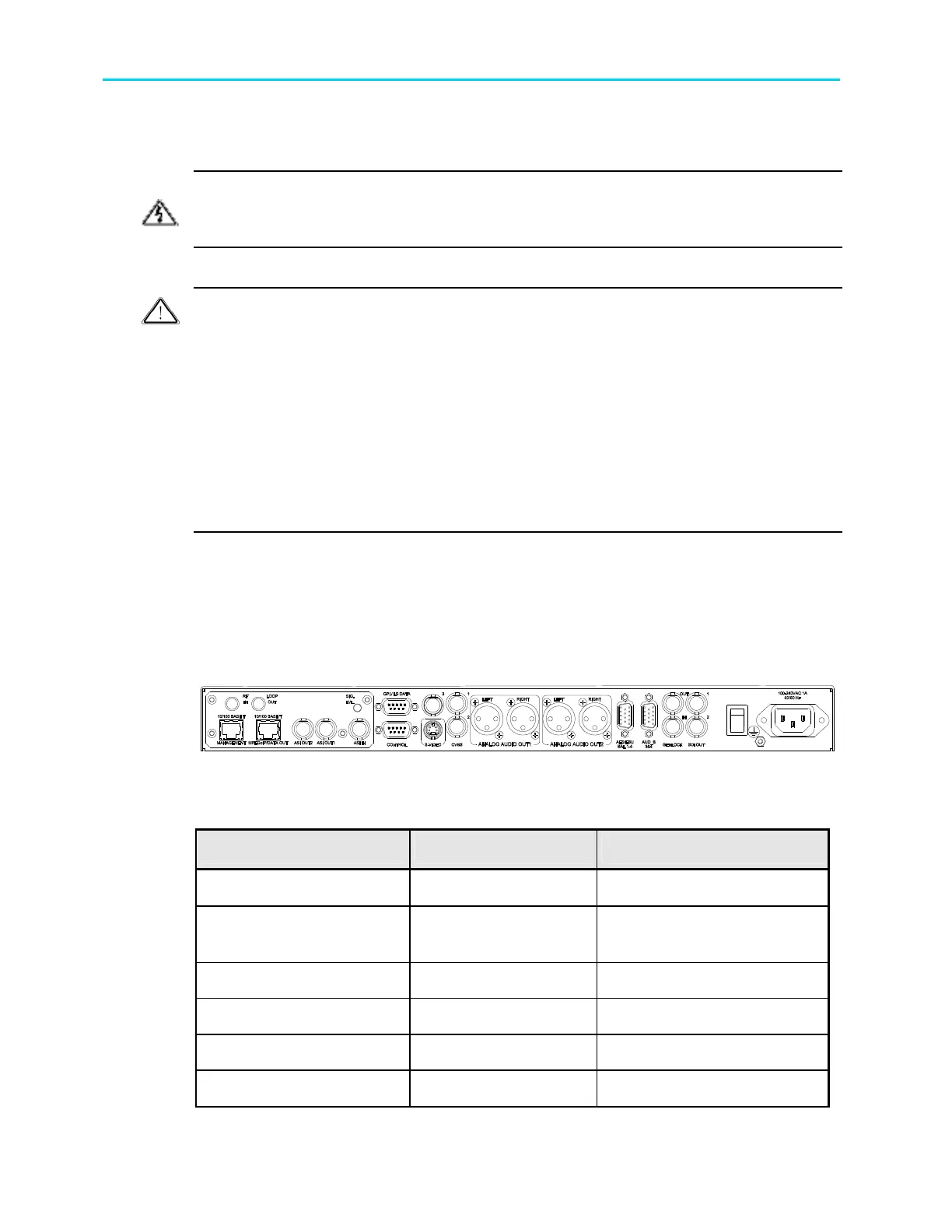

Figure 3-2: ProView 2992 Rear Panel
Table 3-1: ProView 2900 Rear Panel – Connectors and Cables
Interface Connector Type Cable Type
L-Band Front-end RF IN
75 Ω F-Type
RG-6
L-Band Front-end
Loop-Through Connector
75 Ω F-Type
RG-6
MPEGoIP Input
RJ-45 FTP Cat 5
Management
RJ-45 FTP Cat 5
MPEGoIP/DATA Output
RJ-45 FTP Cat 5
Analog Audio Out1 left
600 Ω XLR (balanced)
Shielded audio cable
