LANtools network management
BAT54-Rail/F..
Release
7.54
06/08
5.2
Project management with LANconfig
179

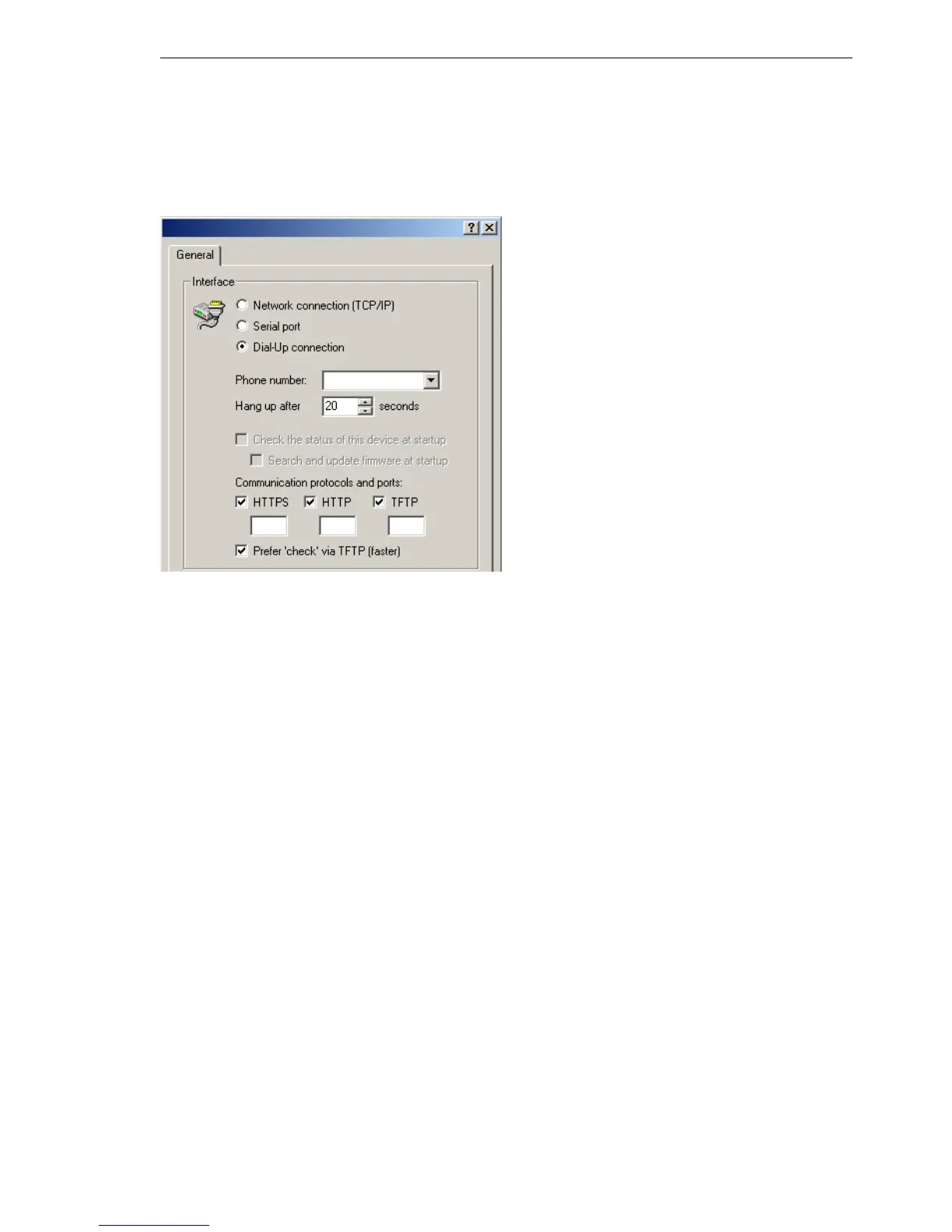

U Configuration of the specific communication settings
For configuring the specific communications settings, the properties dialog of
a device is opened via the context menu (right-click on mouse):
D HTTPS, HTTP, TFPT
Select the communications protocols as described in the global settings:
In the fields under the protocols, the port to be used can be entered using
the following default values:
D HTTPS: 443
D HTTP: 80
D TFTP: 69
D Prefer checks via TFTP
Preferred checking via TFTP as described in the global settings.
Caution: For all specific communications settings, the global settings are
considered to be superordinate. A protocol can therefore only be used for
operating a device when it is also activated in the global settings.
5.2.8 LANconfig behavior at Windows startup
LANconfig can be automatically started when the operating system starts.
