Virtual LANs (VLANs)
BAT54-Rail/F..
Release
7.54
06/08
10.7
VLAN tags for DSL interfaces
349
D Layer2-Layer3 tagging
The setting for Layer3-Layer2 tagging regulates the behavior when a
data packet is transmitted.
D Off: VLAN tags are not generated.
D On: VLAN tags with priority bits originating from the DSCP precedence
will be generated if the recipient has sent at least one tagged packet.
10.7VLAN tags for DSL interfaces
Some DSL networks use VLAN tags in the same way as they are used in lo-
cal networks to differentiate between logical networks on shared transmis-
sion media. The BAT Router can process these VLAN tags correctly if a
VLAN ID is defined for each DSL remote site.
D VLAN ID
ID used to explicitly identify the VLAN over the DSL connection.
D Default: 0
With VLAN ID '0' only untagged packets are accepted; with any other
VLAN ID only packets with the corresponding tag are accepted.

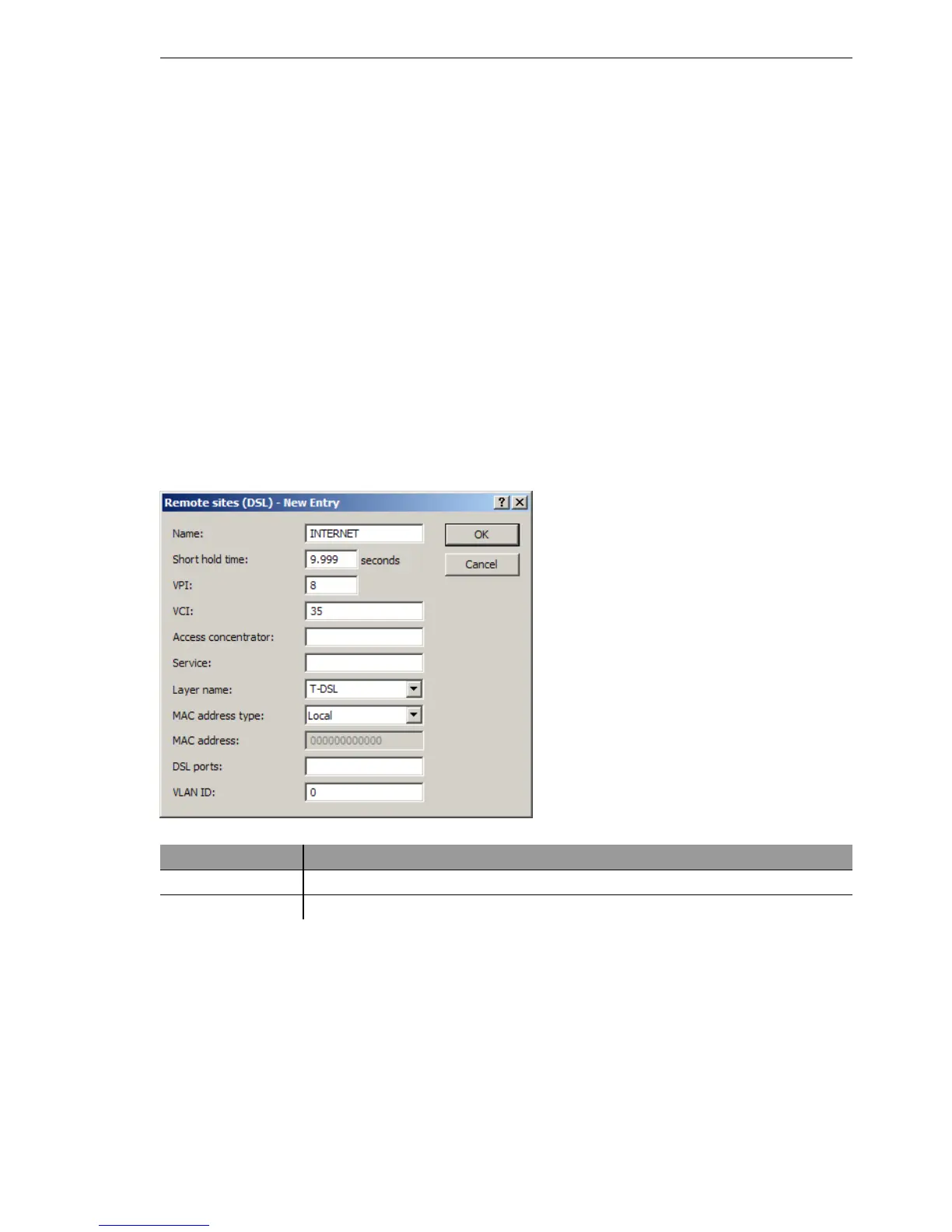

Configuration tool Call
LANconfig Communication
 Remote sites  Remote sites (DSL)
WEBconfig, Telnet Expert Configuration > Setup > WAN > DSL Broadband Peers
