Routing and WAN connections
BAT54-Rail/F..
Release
7.54
06/08
11.13
Callback functions
441
In addition to callback via the D channel, the CBCP (Callback Control
Protocol) specified by Microsoft and callback via PPP as per RFC 1570 (PPP
LCP extensions) are also offered. There is also the option of a particularly
fast callback using a process. PCs with Windows operating system can be
called back only via the CBCP.
11.13.1Callback for Microsoft CBCP
With Microsoft CBCP, the callback number can be determined in various
ways.
D The party called does not call back.
D The party called allows the caller to specify the callback number itself.
D The party called knows the callback numbers and only calls these back.

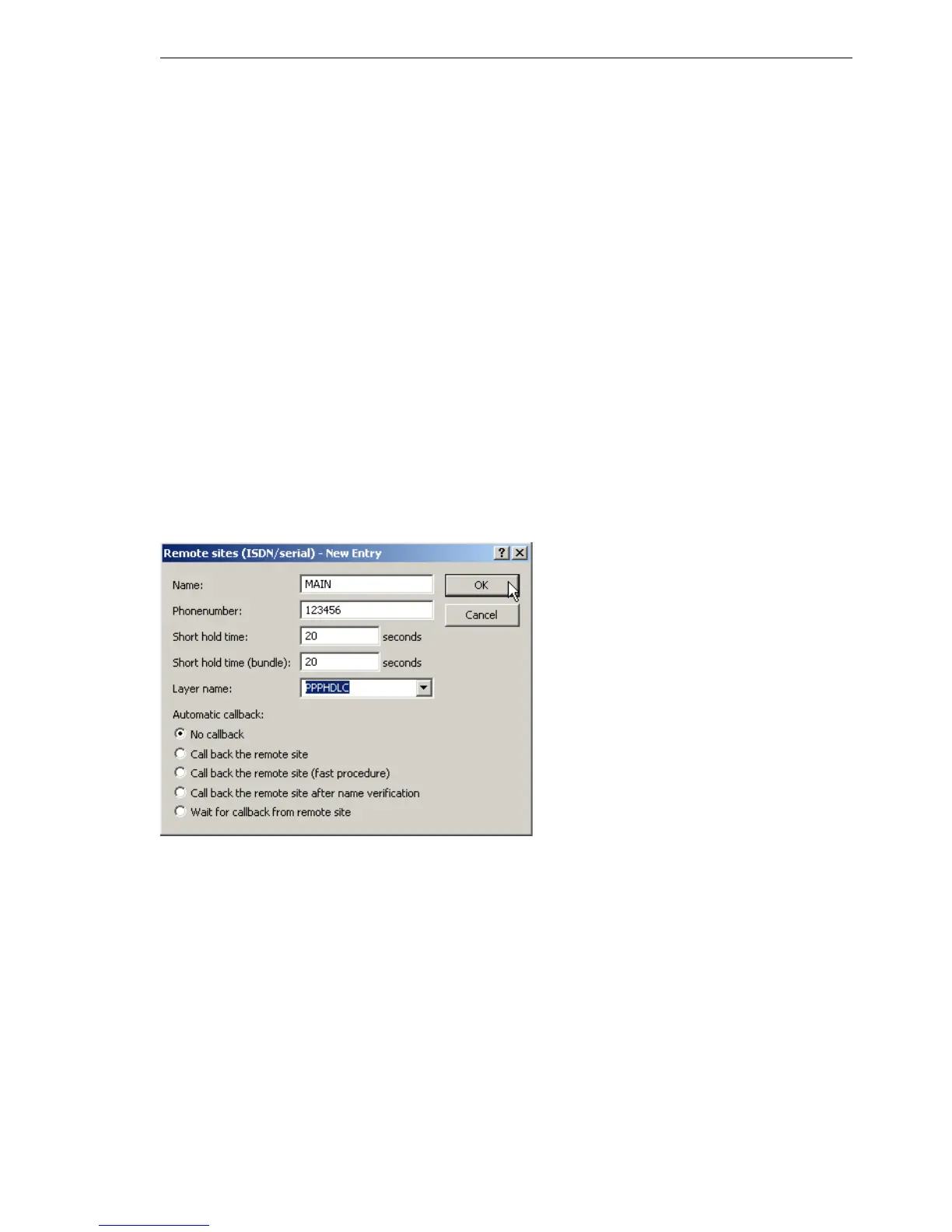

Via CBCP, it is possible to establish connection to the BAT from a PC with
Windows operating system and also to be called back by this PC. Three pos-
sible settings are selected in the remote sites list via the callback entry as well
as the calling number entry.
U No callback
For this setting, the callback entry must be set to 'off' when configuring via
WEBconfig or in the console.
U Callback number specified by caller
For this setting the callback entry must be set to 'Call back the remote site
after name verification' (or must have the value 'Name' in WEBconfig or in the
console). In the peer list no telephone number may be specified.
