Wireless LAN – WLAN
104
3.7
IEEE 802.11i for point-to-point connections
BAT54-Rail/F..
Release
7.54
06/08
Initially only one of the two antennas should be adjusted until a maximum val-
ue is achieved. This first antenna is then fixed and the second antenna is
then adjusted to attain the best signal quality.
3.7.2 Configuration
In the configuration of point-to-point connections, entries have to be made for
the point-to-point operation mode, the channel selection scheme and the
MAC addresses of the remote sites.
Configuration with LANconfig
For configuration with LANconfig you will find the settings for P2P connec-
tions under the configuration area 'Interfaces' on the 'Wireless LAN' tab.
Note: The configuration of the P2P connections can also be carried out with
the WLAN Wizards in LANconfig.

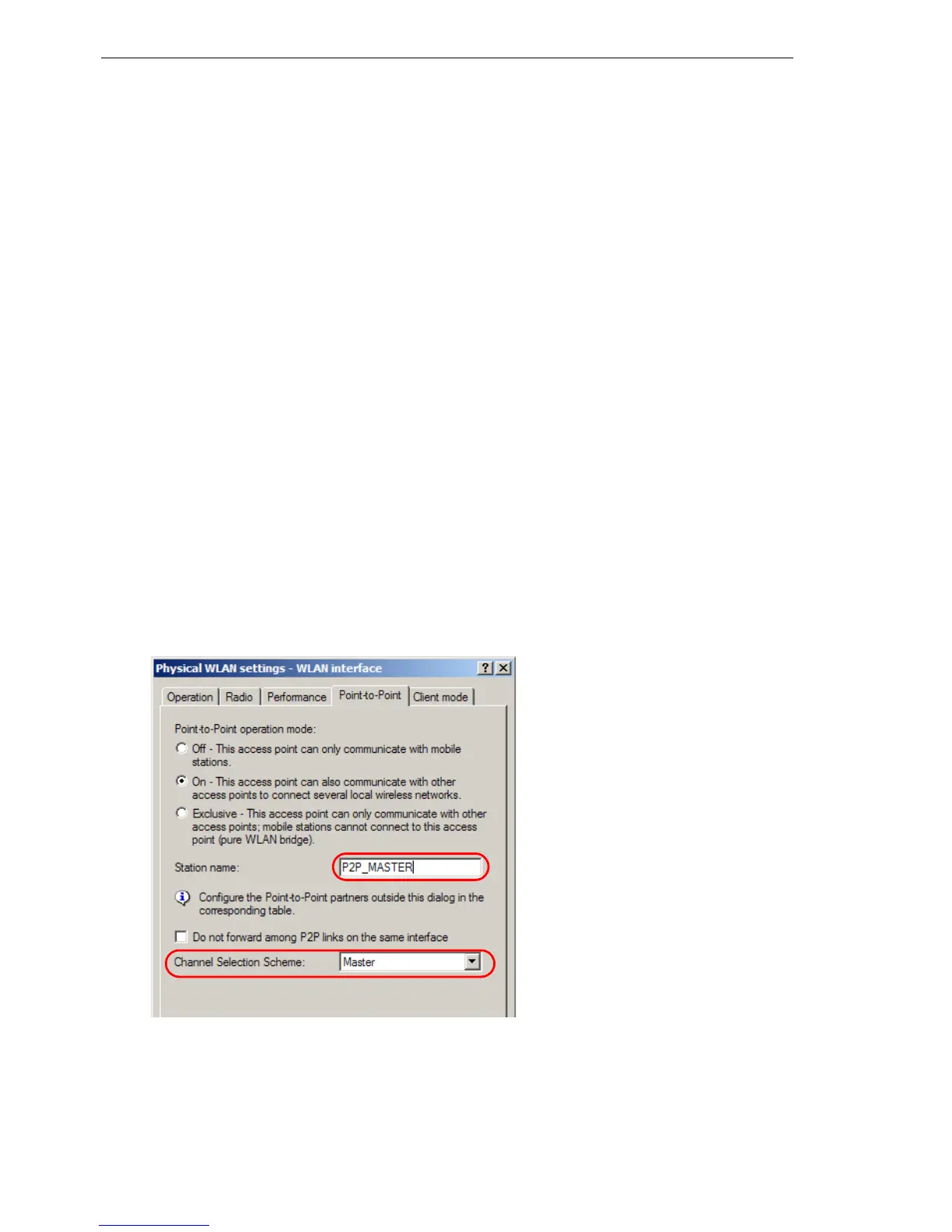

V Click on the button Physical WLAN settings to open the corresponding
WLAN interface and select the tab for 'Point-to-Point'.
V Activate the suitable point-to-point operation mode here and set the chan-
nel selection scheme to either 'Master' or 'Slave'. If the peers of the P2P
connections are to be identified via their station names, then enter a
unique name for this WLAN station.
V Close the physical WLAN settings and open the list of Point-to-point
partners. For each of the maximum of six P2P connections, enter either
the MAC address of the WLAN card at the remote station or enter the
WLAN station's name (depending on the chosen method of identification).
