Quality of Service
BAT54-Rail/F..
Release 7.54 06/08
9.7 QoS configuration
331
9.7.4 Sending and receiving direction
LANconfig

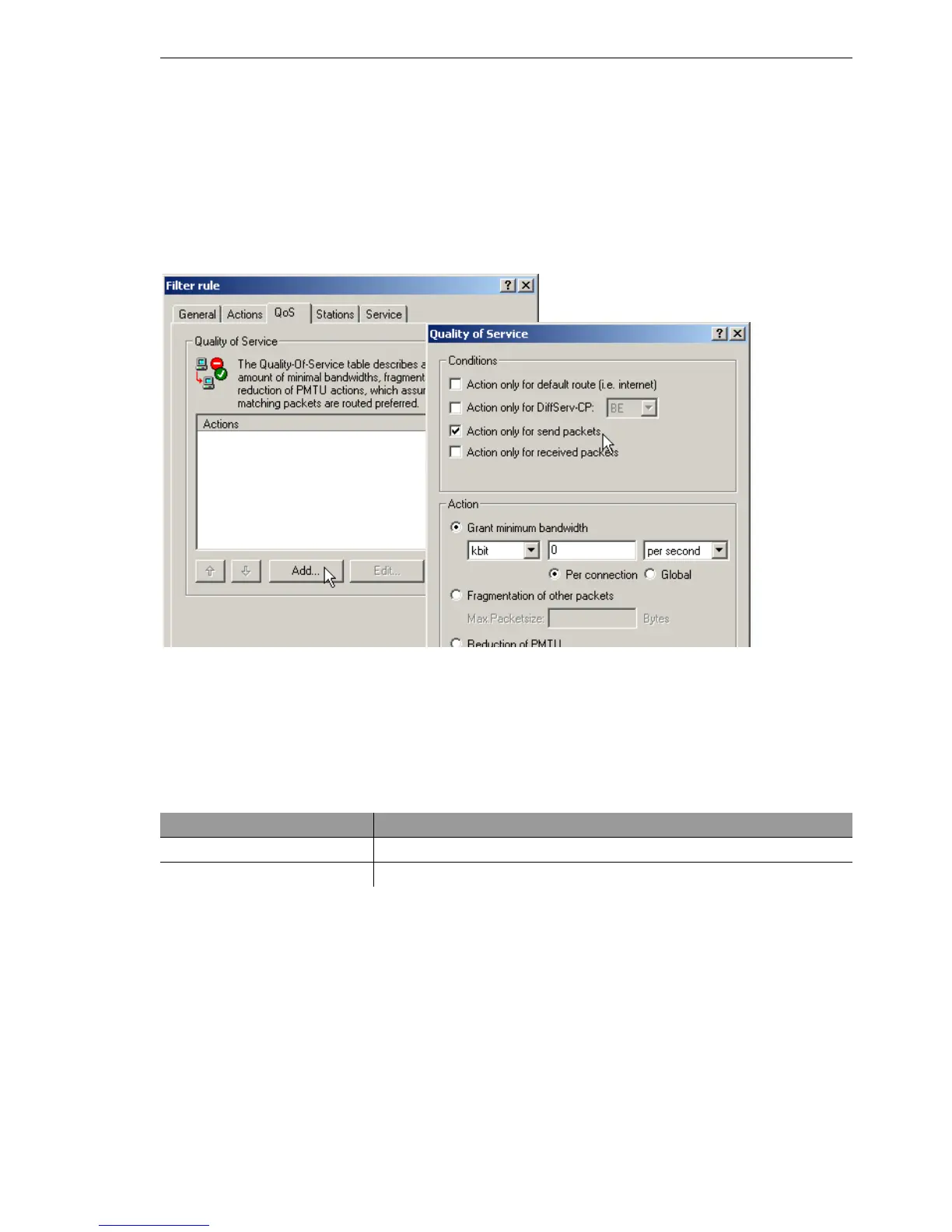

The interpretation of the data transfer direction can be adjusted in LANconfig
when defining the QoS rule:
WEBconfig, Telnet
For configuration with WEBconfig or Telnet, the interpretation of the data
transfer direction is specified at the following places in a new Firewall rule by
parameters “R” for receive, “T” for transmit (send) and “W” for reference to
the WAN interface:
A restriction of data transfer to 16 Kbps in sending direction applying to the
physical WAN interface is e.g. made by the following Firewall rule:
D %Lcdstw16%d
9.7.5 Reducing the packet length
The length reduction of the data packets is defined by a Firewall rule accord-
ing to the following conditions:
Configuration tool Run
WEBconfig Setup/IP router/Firewall/Rule list
Telnet Setup/IP router/Firewall/Rule list
