Making Measurements
Measuring Group Delay
Enter
the
Measurement
Parameters

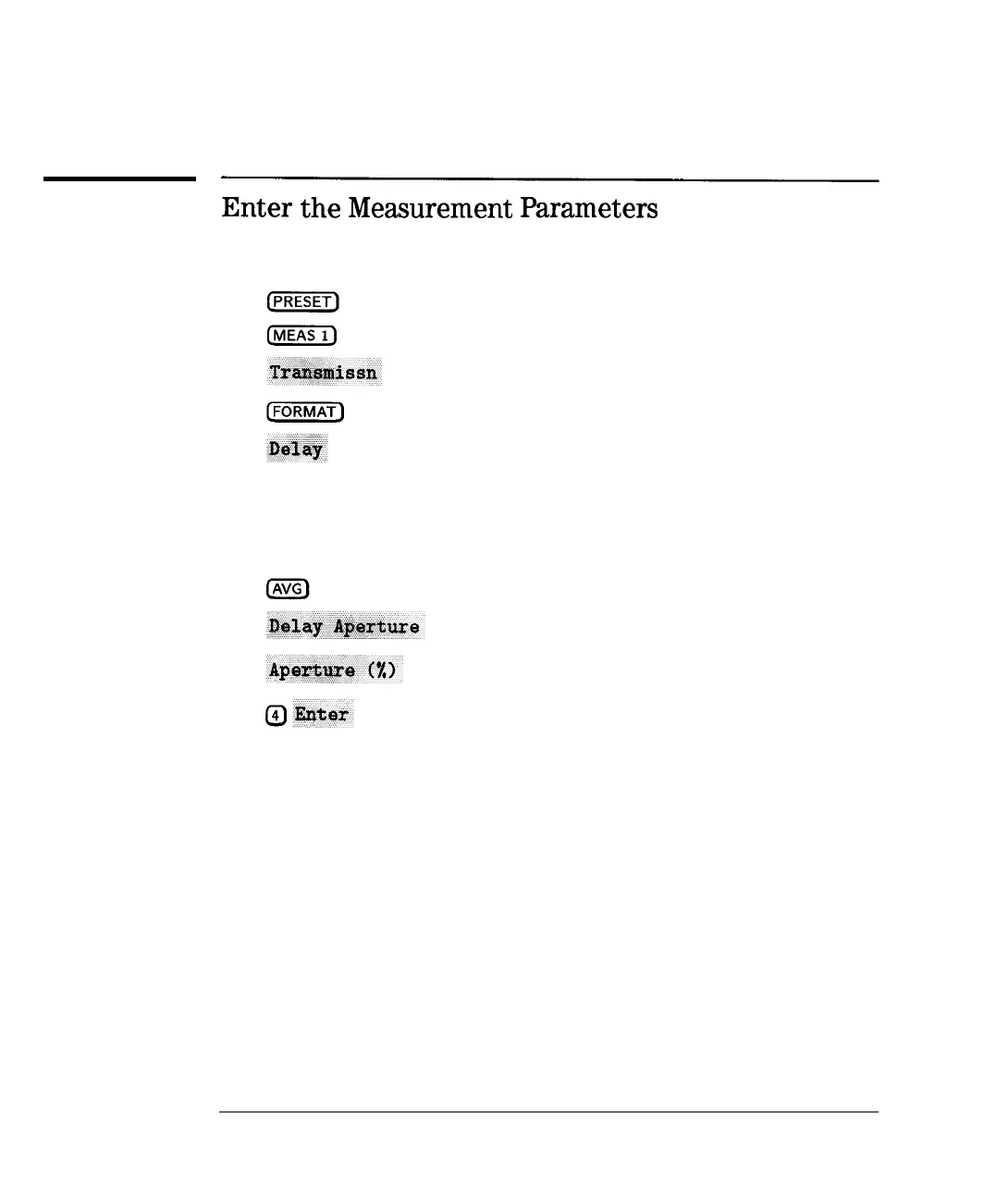

1. Press the following keys on the analyzer:
2. Choose an aperture. When choosing an aperture, there is a tradeoff
between minimum apertures (giving more resolution but noisier responses)
and maximum apertures (giving less resolution but smoother responses).
For this example, choose an aperture of 4% by pressing:
3-50
-1
I
-
102
104
