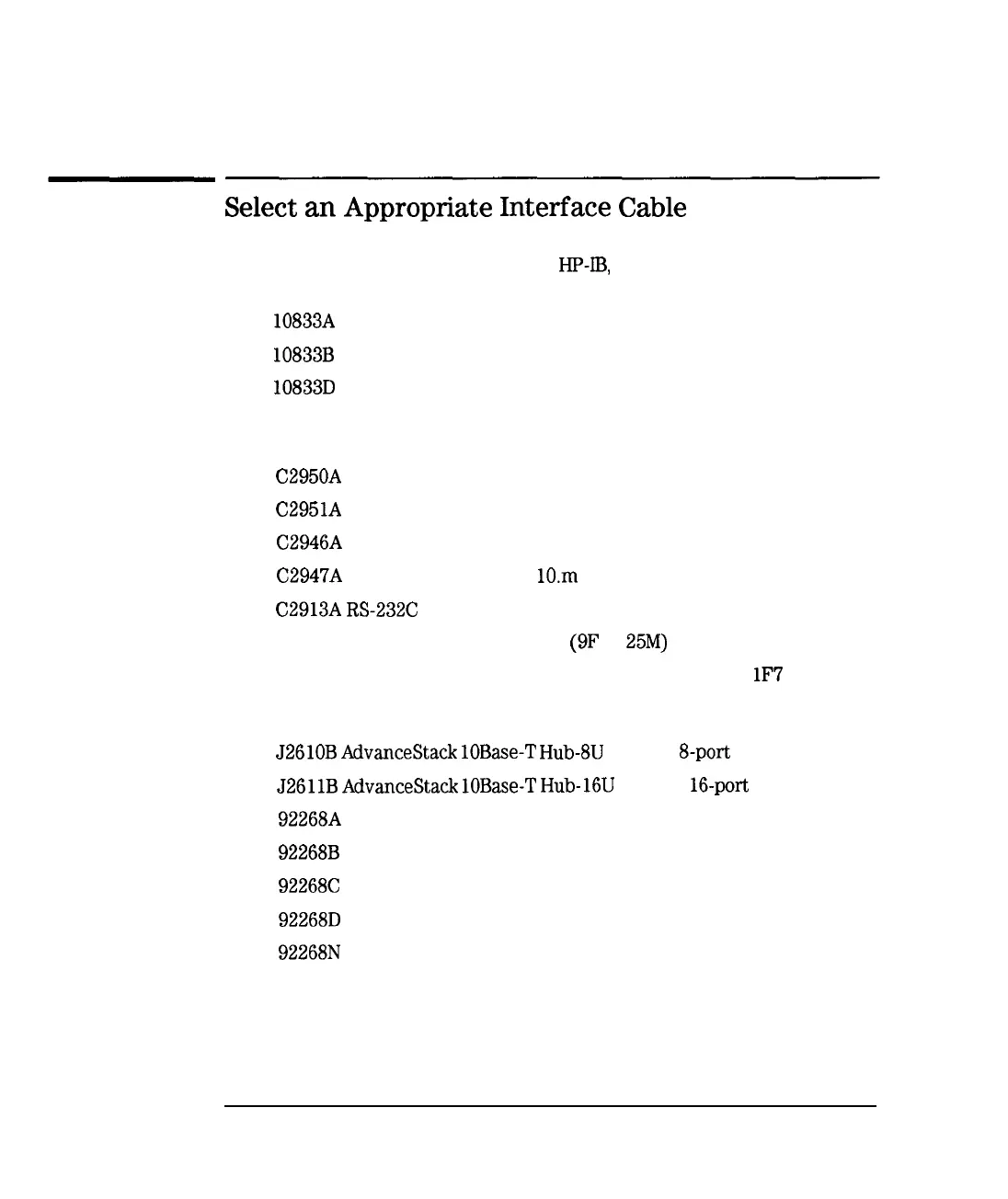

Using Instrument Functions
Connecting and Configuring Printers and Plotters
Select
an
Appropriate
Interface
Cable
If your peripheral is to be connected to HP-& choose one of the following
cables:
l
HP
10833A
HP-IB Cable, 1.0 m
l
HP
10833B
HP-IB Cable, 2.0 m
l
HP
10833D
HP-IB Cable, 0.5 m
If your peripheral is to be connected via the parallel or serial port on the
analyzer, choose from the following recommended cables:
l
HP
C295OA
Parallel Interface Cable, 2.0 m
l
HP
C2951A
Parallel Interface Cable, 3.0 m
l
HP
C2946A
Parallel Printer Cable, 3.0 m
l
HP
C2947A
Parallel Printer Cable,
10.m
l
HP
C2913A
RS-232C
(Serial) Interface Cable, 1.2 m
l
HP 245426 Serial Interface Cable, 3 m
(9F
to
25M)
If your peripheral is to be connected via the LAN port (Option lF7 only) on
the analyzer, you will need a LAN hub and 2 Ether-twist cables. Choose from
the following:
l HP
J2610B
AdvanceStack
lOBase-T
Hub-8U
(typical
g-port
hub)
l HP
J2611B
AdvanceStack
lOBase-T
Hub-16U
(typical
16-port
hub)
l
HP
92268A
Twisted-pair “straight-through” cable, 4 m
l
HP
92268B
Twisted-pair “straight-through” cable, 8 m
l
HP
92268C
Twisted-pair “straight-through” cable, 16 m
l
HP
92268D
Twisted-pair “straight-through” cable, 32 m
l
HP
92268N
Twisted-pair “straight-through” cable, 300 m
