Making Measurements

Measuring Group Delay

Connect

the

DUT

NETWORK ANALYZER

DEVICE

RF IN

UNDER

TEST

3-52

Figure

3-19.

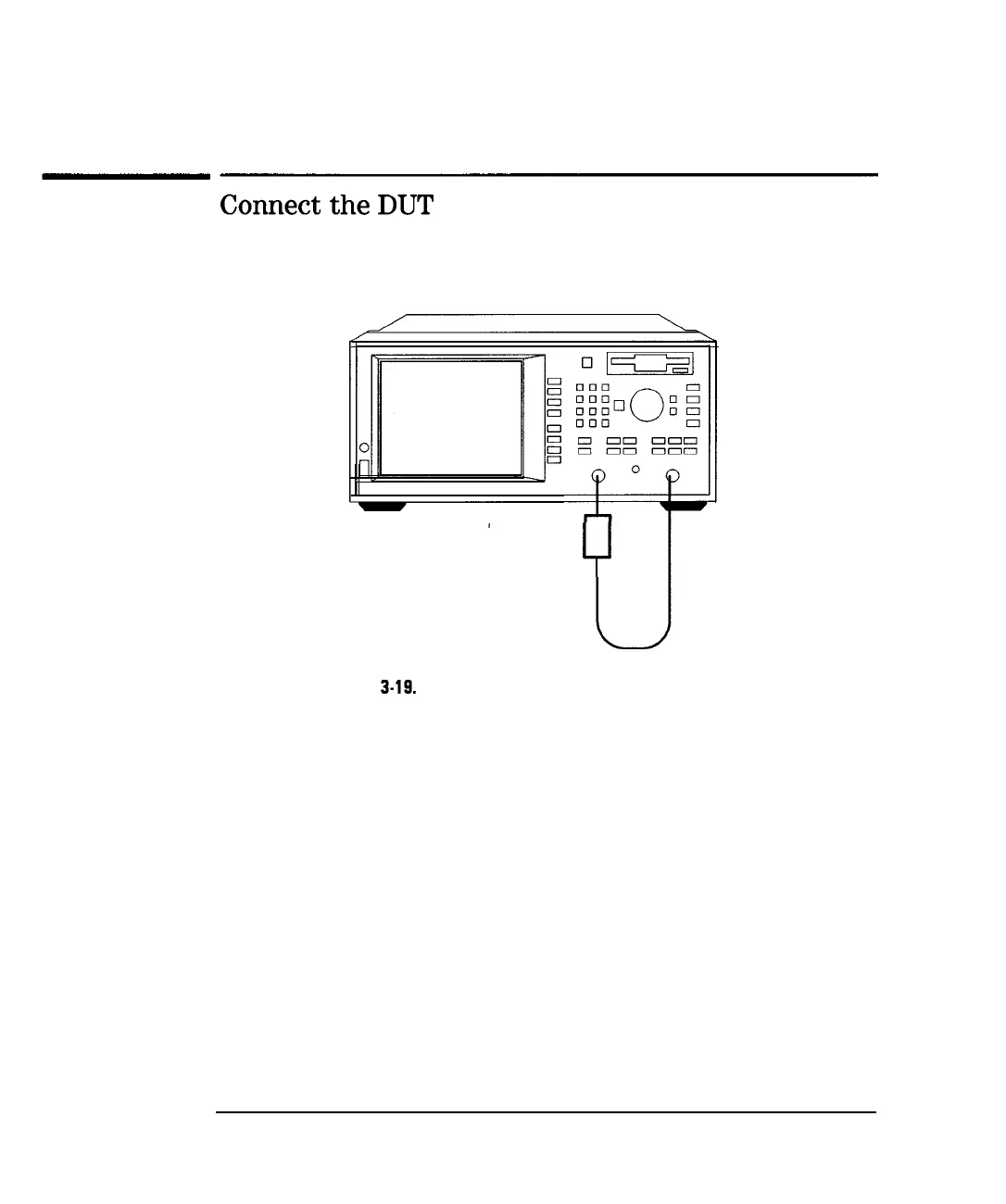

Equipment Setup For a Group Delay Measurement
