Display Intensity Control

NETWORK

ANALYZER

po627b

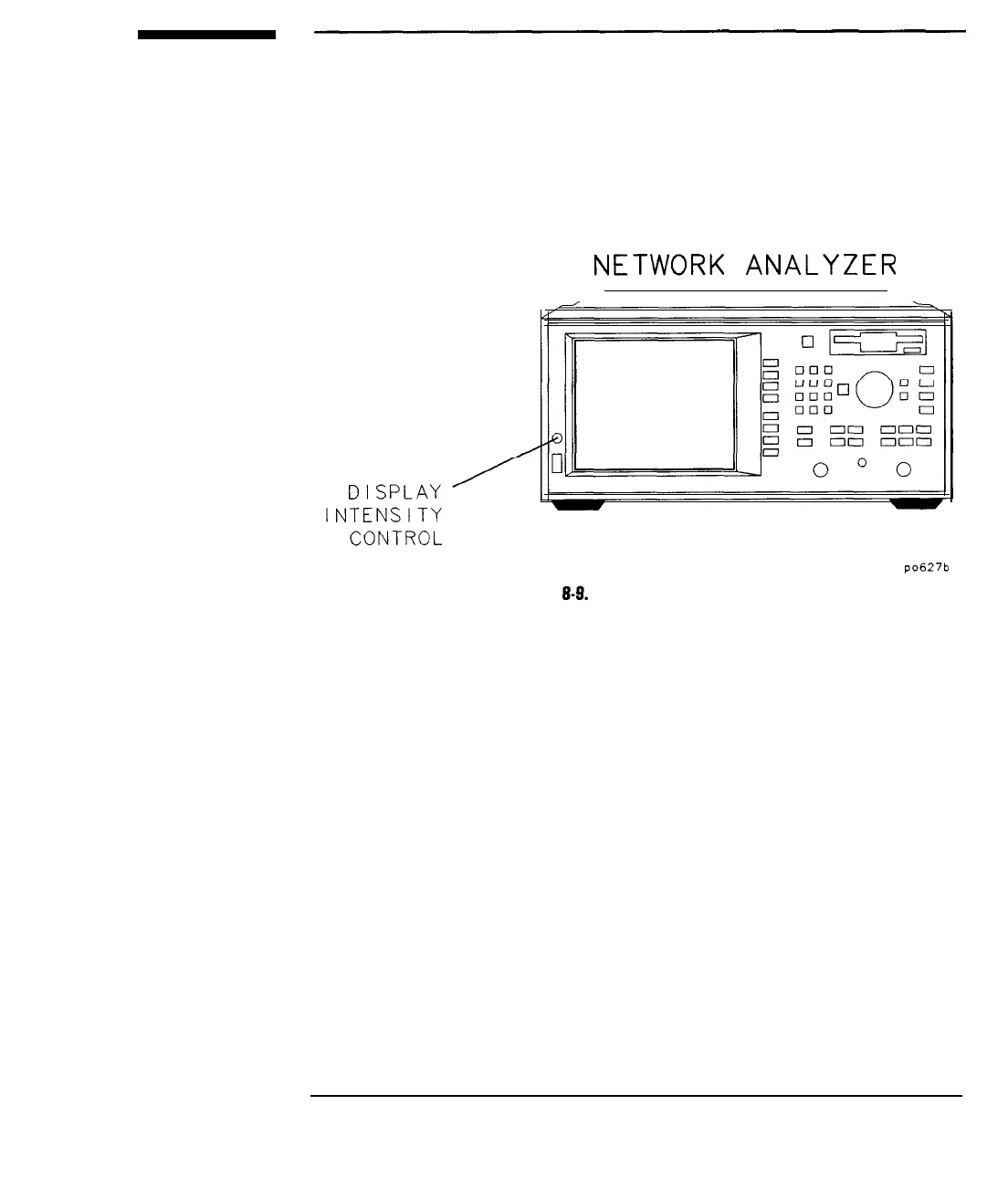

Figure

84.

Display Intensity Control

The intensity control adjusts the brightness of the display.

8-19
