HP 8712C - Network Analyzer Front Panel Features

Getting Started
The HP 8712C and HP 8714C are easy-to-use, fully integrated RF component
test systems. Each instrument includes a synthesized source, a wide dynamic
range receiver and a built-in test set. Controls are grouped by functional
block, and settings are displayed on the instrument CRT. This section
familiarizes new users with the layout of the front panel and the process of
entering measurement parameters into the analyzer.
Dob48b

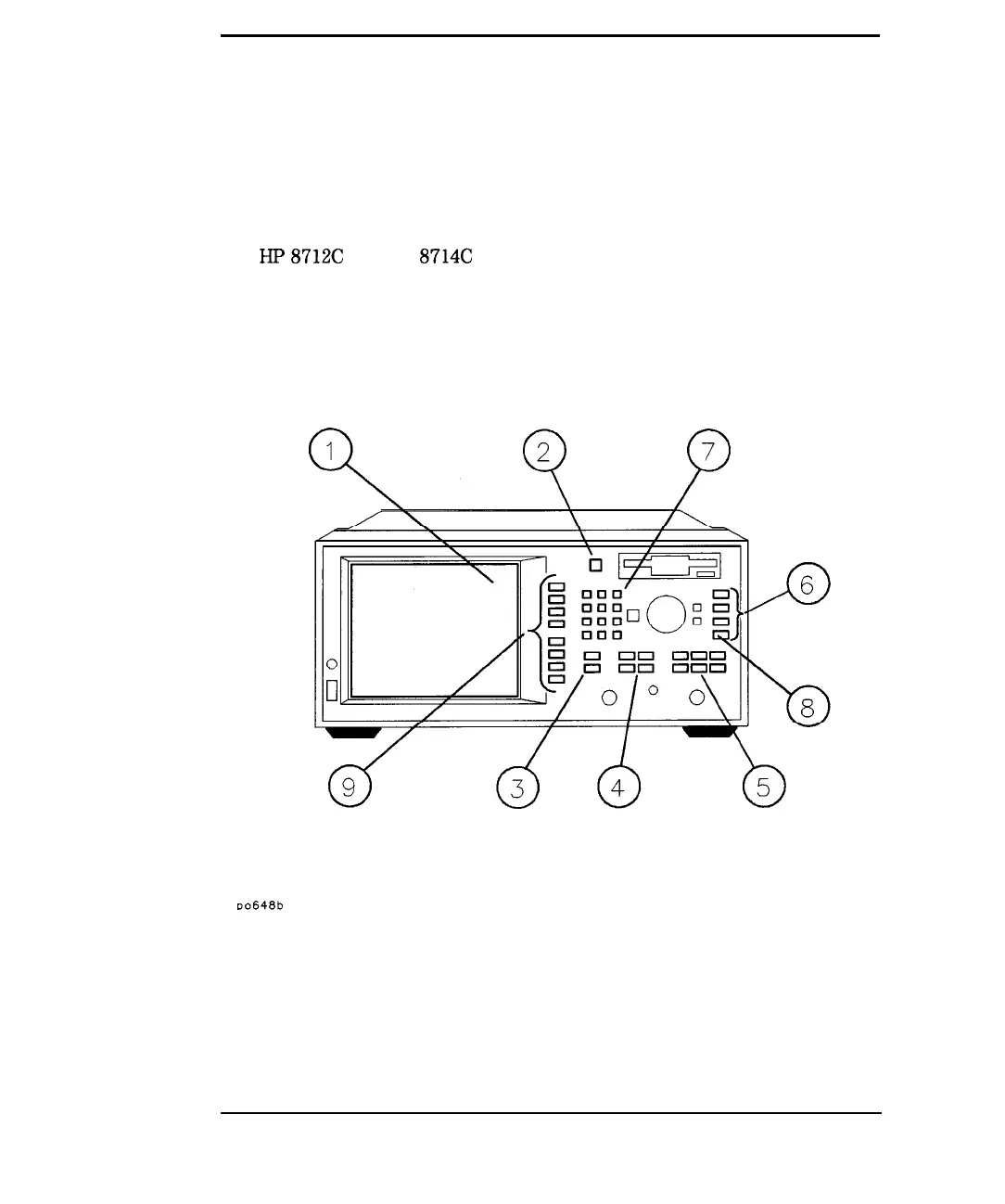

Figure 2-1. Network Analyzer Front Panel Features
