Using Instrument Functions
Using Markers
When the maximum or minimum point is at or near either edge of the
display, the excursion requirement is satisfied by a half of a division excursion
on just one side of the maximum (or minimum). See Figure 4-9.
-60dB
i/2 Division

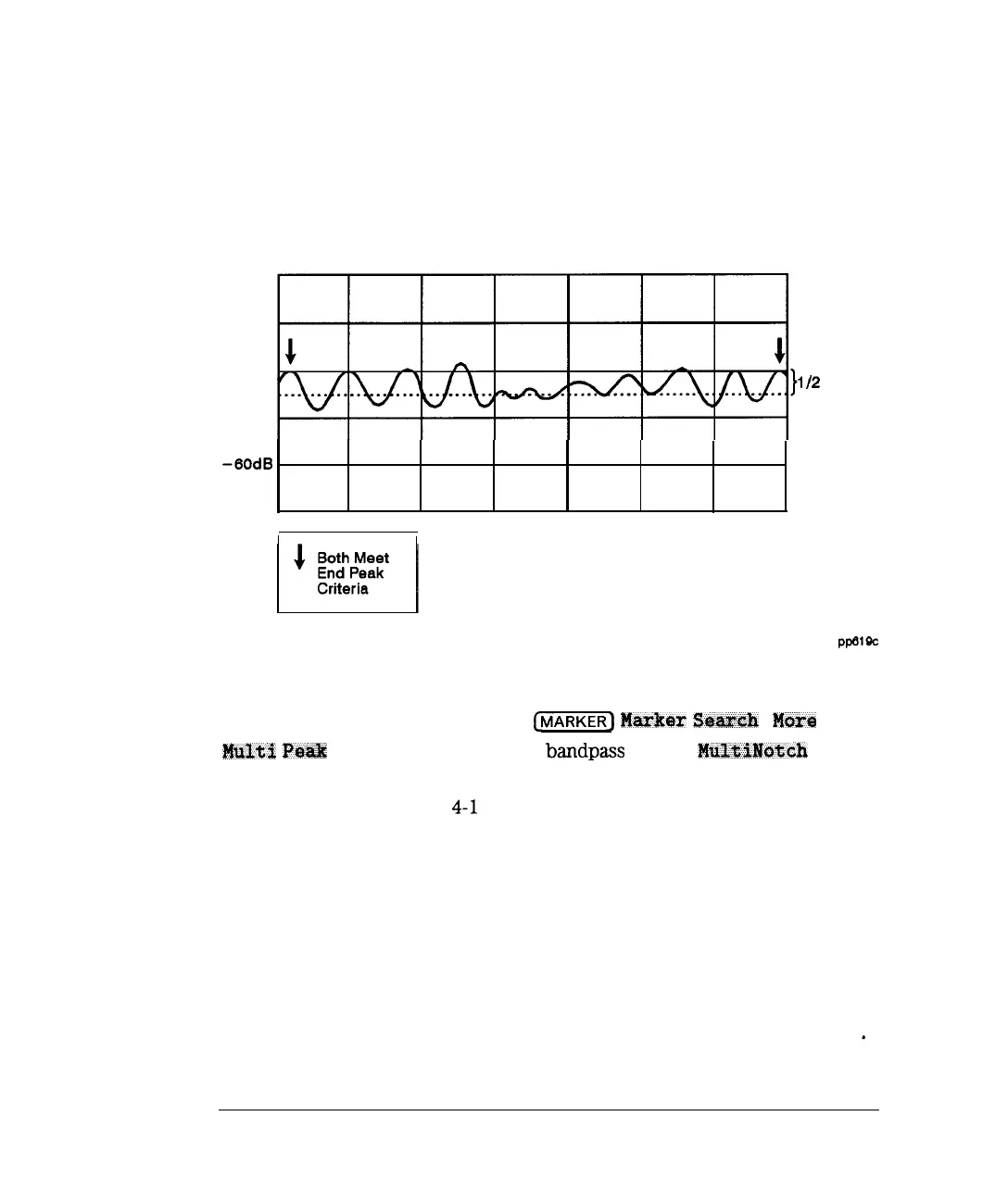

Figure 4-9. Peak and Minimum Search Criteria at Display Endpoints
Connect a multi-pole Elter and press C-1 HWwtr Search More and
I#uXti PM& if measuring a multi-pole bandpass filter or ?WtiWatch if
measuring a multi-pole notch Elter.
See Figure 4-10 and Figure 4-l 1 for examples of a multi-peak and a
multi-notch search, respectively.
