READ ANALOGUE VALUES
In some systems Analogue Input modules are
installed to monitor variable parameters such as
Temperature, humidity, fluid levels, etc.
“READ ANALOGUE” can then be used to
display the current values of the analogue inputs.
(V3 or later only)

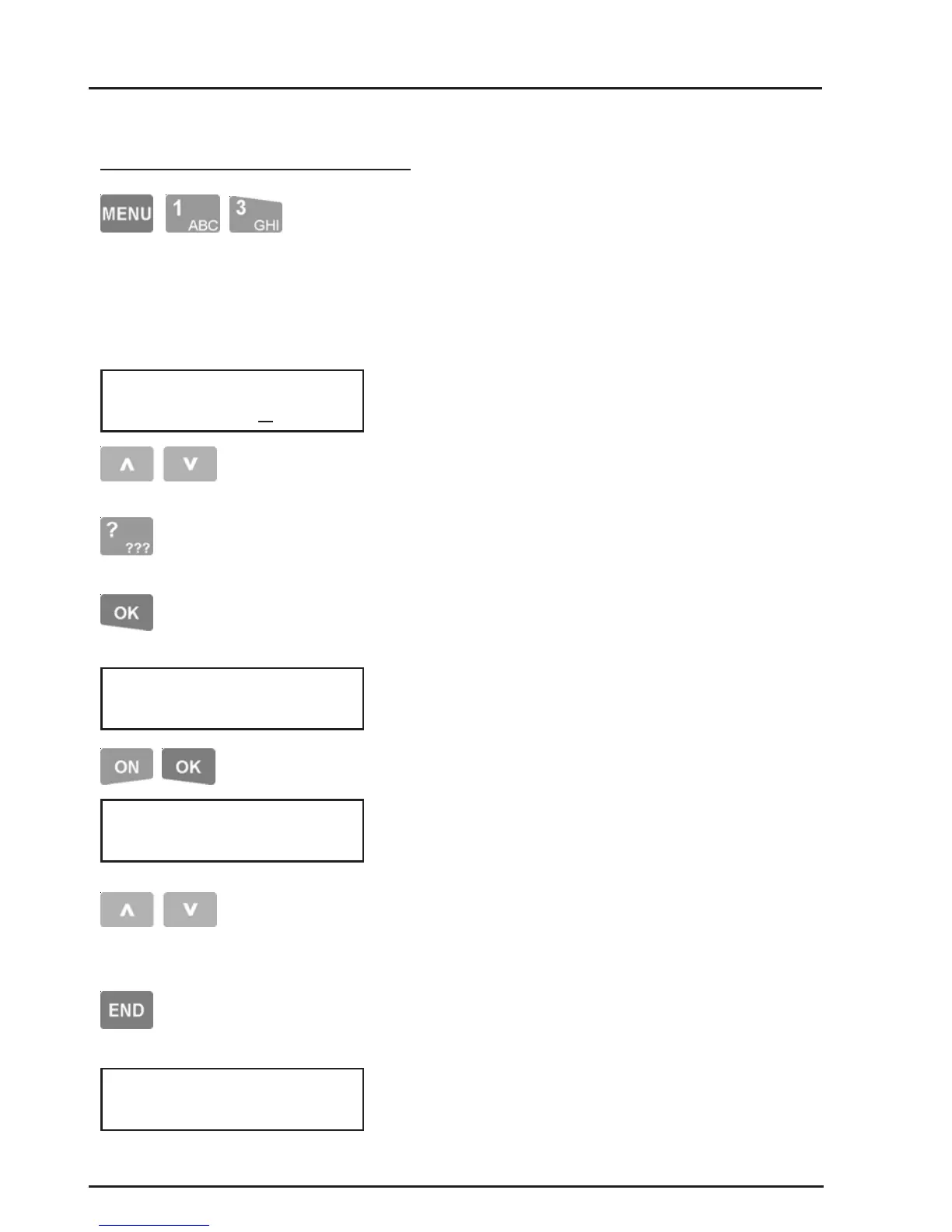

The display will prompt for an Analogue Module
number to view.
The <UP> and <DOWN> arrow keys can be used
to search for a particular Analogue Module,
OR
Use the <DIGIT> keys to enter the Analogue
Module number.
Press the <OK> key to select the module number
displayed.
The display will show the value of the first
Analogue input on the selected module.
Value updates every 2 seconds and stops updating
after 2 mins. Press <ON> to refresh the display.
Press <OK> to scroll through the Values for other
Zones/Inputs on the same Analogue Module.
Use the <UP> and <DOWN> Arrow keys to scroll
through the Analogue values for the same Zone
input number on other Analogue Modules.
Press the <END> key to exit to the normal
display.
NOTE: All Analogue Zone Inputs used in the
system should always be named by the Installer.
A screen similar to this showing the default Zone
ID will be displayed for Zones that are not used.






























