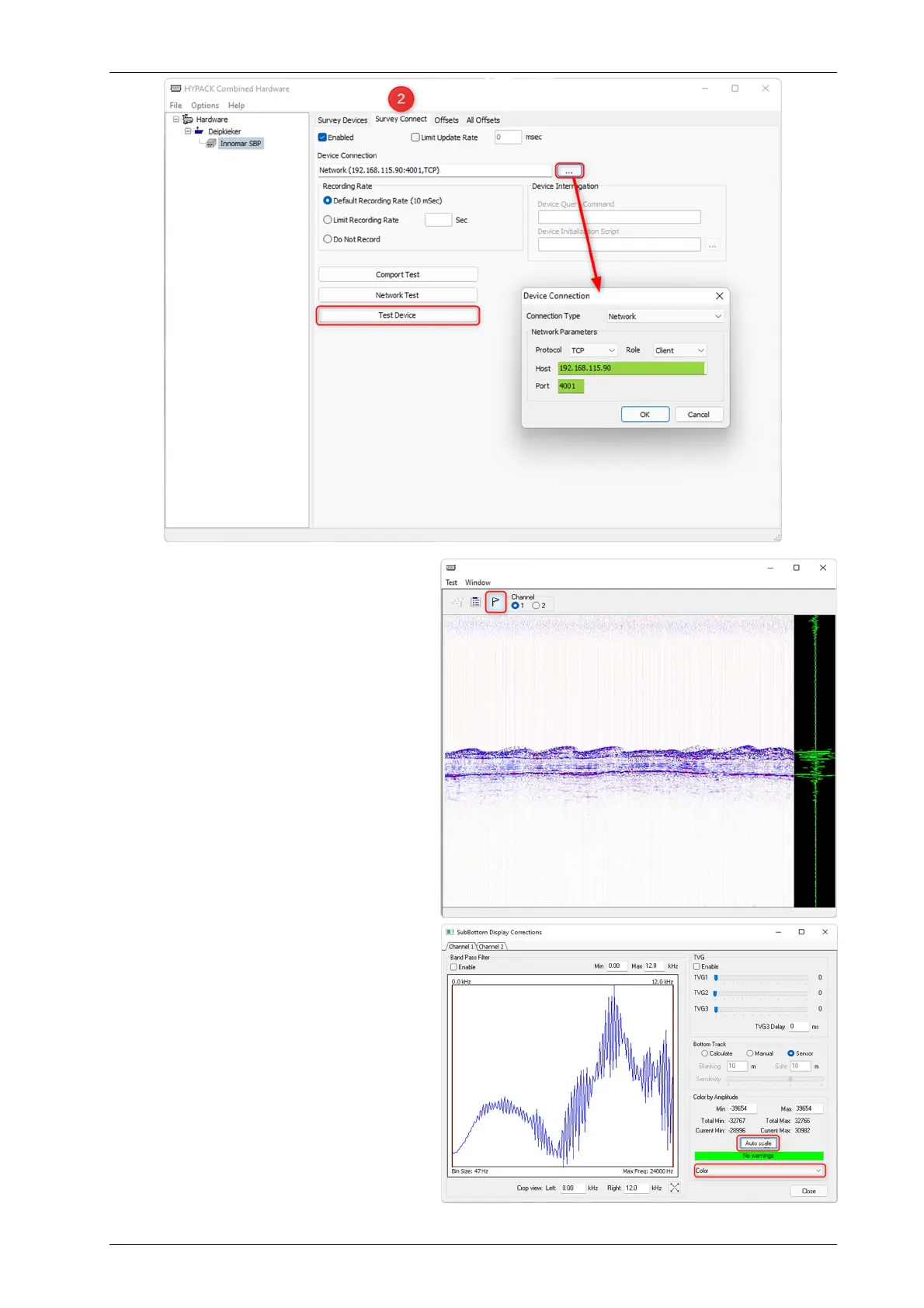

Once all needed parameters are entered,
the connection can be tested to make
sure it is working properly.
The Sub-bottom controls (flag button)
provide a few options to optimize
displaying the data. The amplitude values
of the transmitted raw data are in 16bit
which means the value range is between
-32767 to 32767. In Color by Amplitude
an auto scale can be applied to increase
the contrast of the visualized data. It is
also possible to set minimum and
maximum values manually to get an even
higher contrast. Also, there different
visualization modes can be applied such
as color, bipolar, unipolar and rectified
(absolute). Furthermore, a band pass
filter and a TVG can be applied if needed.
All these parameters can be set up
separately for both channels.
