2.4 SESWIN Setup – General Settings
See also section 5.11.1 on page 58.

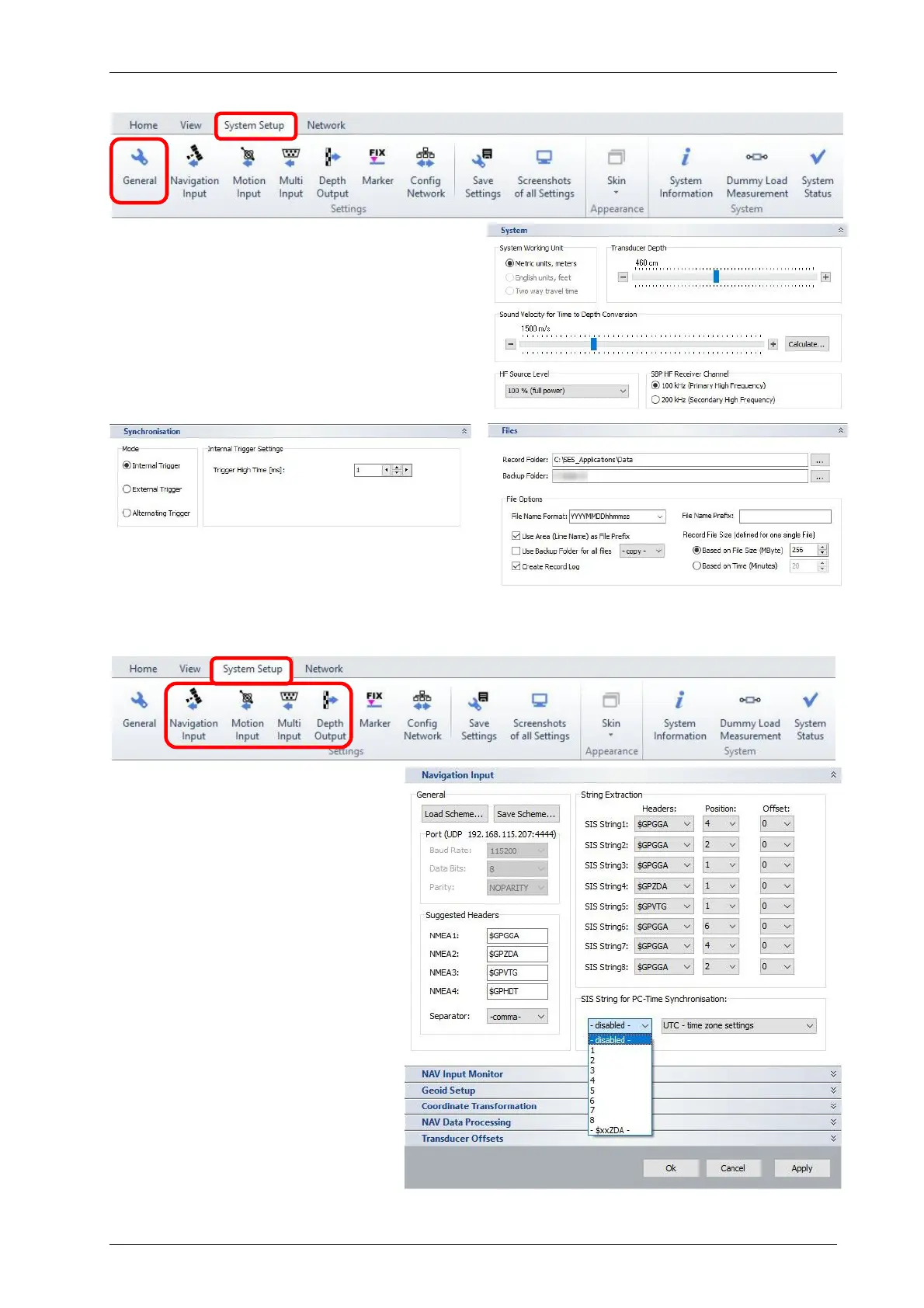

 Set transducer draught (1)
 Set average sound speed for time-to-depth
conversion (2)
 Set HF source level  keep 100% (3)
 Set trigger / synchronisation as required (4)
 Set record file location (5) and naming (6)
For trigger / synchronisation setting details
see chapter 6 on pages 81 ff.
2.5 SESWIN Setup – Interface Configuration
NAV Input (GNSS Position)
see section 5.11.8 on page 64
 Check port settings (1)
for COM port set baud rate (as
high as possible)
 Check incoming data with NAV
input monitor (2)
 Set NMEA headers to be used
and separator (3)
 Set what parts to be extracted
and stored to SIS fields (4)
 Set PC clock synchronisation
(preferably to “$xxZDA”) (5)
 Optional: set geoid (6) and
projection (7) parameters
 Optional: set processing (8)
 Optional: set offsets (9)
