5.11.3 System Setup – Settings – General – Synchronisation

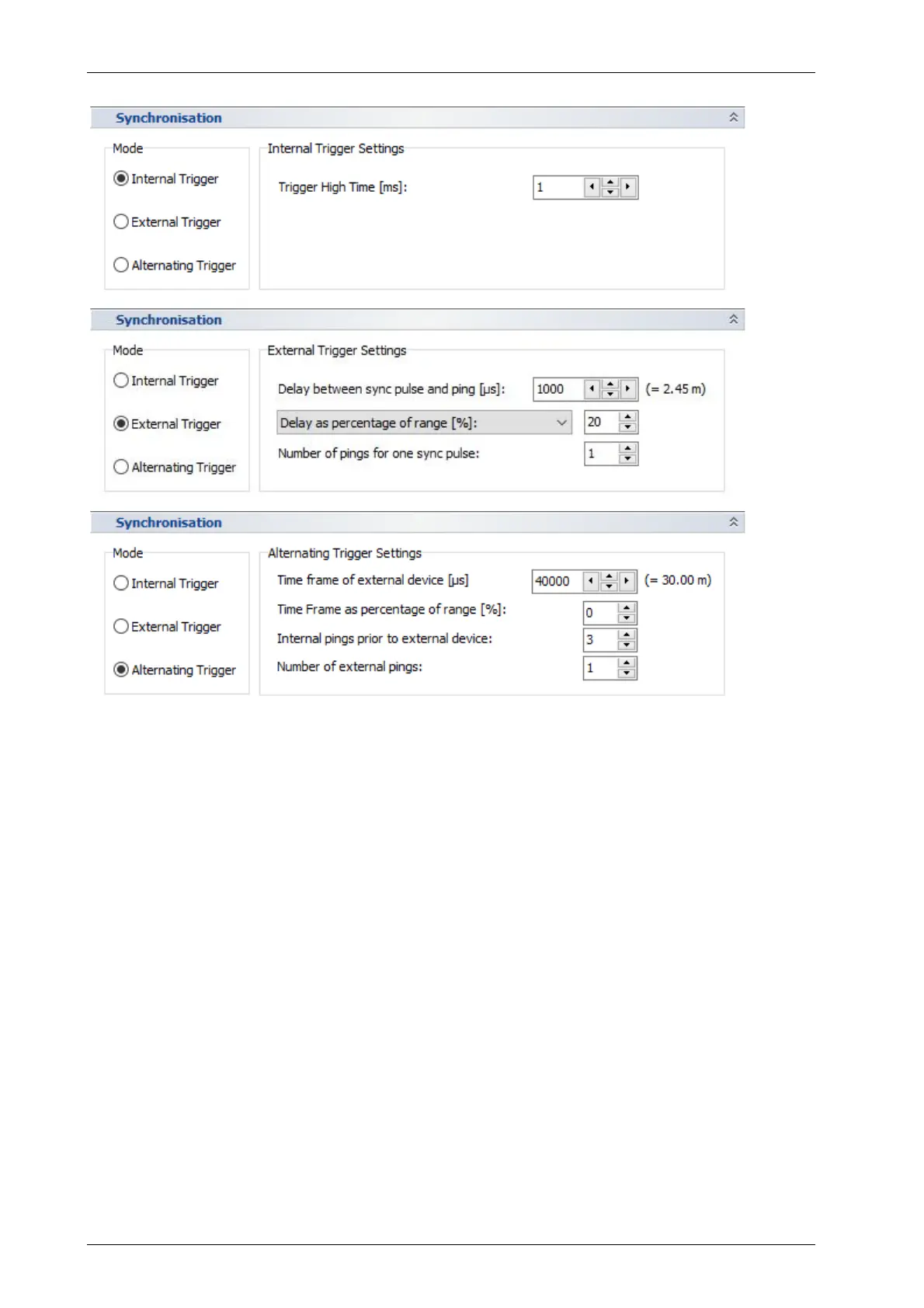

In this dialog there are settings for synchronizing with other acoustic systems. All settings are
described in detail in section 6 starting on page 81.
Mode: There are three different modes for the INNOMAR SBP synchronisation:
Internal (INNOMAR SBP stand-alone or “master” device; default setting)
External (INNOMAR SBP “slave” device, triggered by other equipment)
Alternating (INNOMAR SBP master device, pinging alternating with external device)
Internal Trigger Settings: If the INNOMAR SBP system is running as master, it is possible to set
the length (high-time) of the trigger pulse generated on the “SyncOUT” BNC connector to trigger
other equipment. This allows an adjustable trigger delay on the falling edge.
External Trigger Settings: If the INNOMAR system is triggered externally you can apply a trigger
delay and/or transmit bursts of pings with each trigger event.
Alternating Trigger Settings: With “Alternating Trigger” the INNOMAR system is running as
master and generates a trigger pulse at “Trigger OUT” when an external device shall ping rather
than pinging itself.
