User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN 15
Innomar Technologie GmbH (2023-01) 15

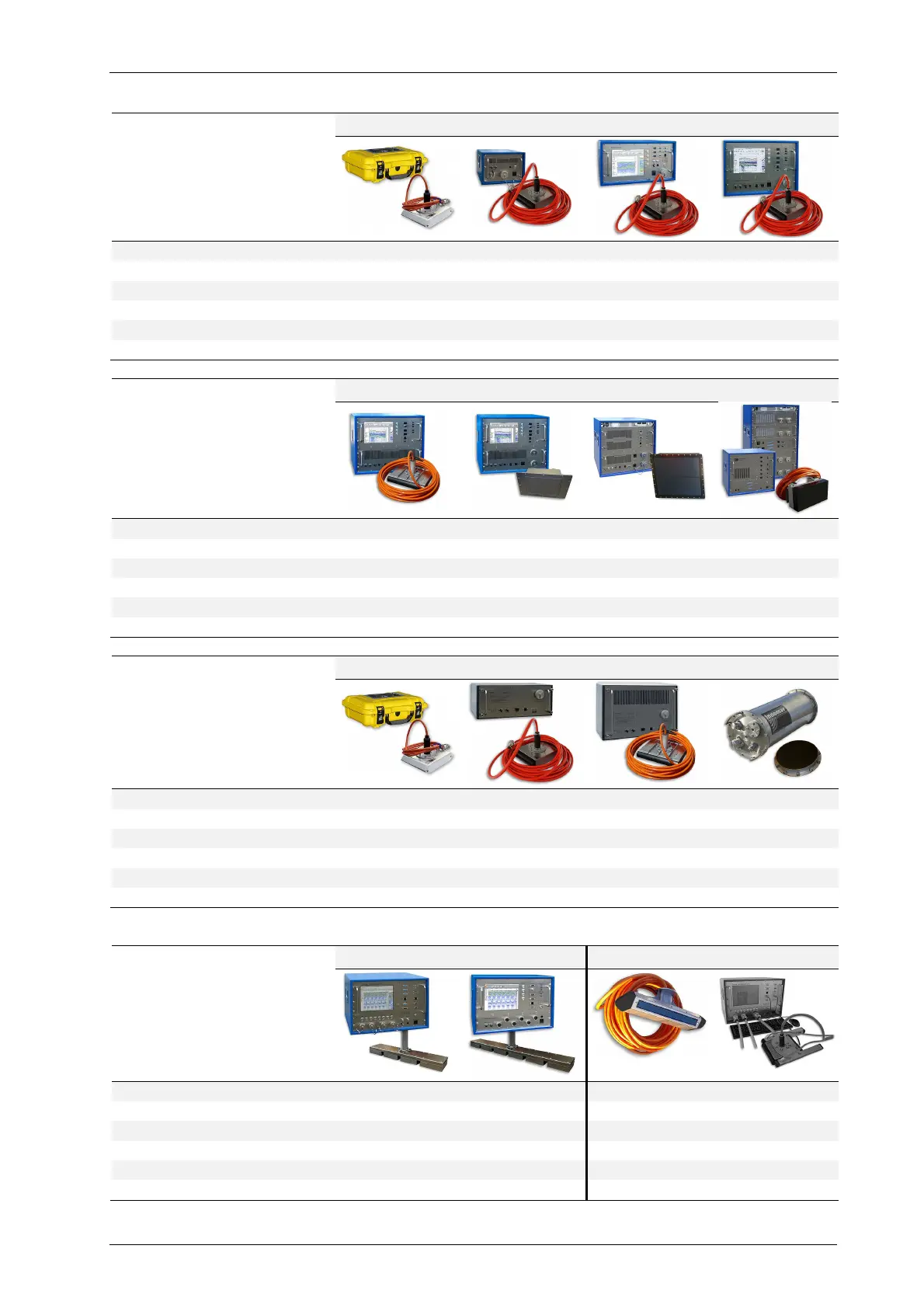

1.4 Innomar SBP Models
Shallow-Water
Solutions
when portability matters
from less than one meter
smart compact light standard
Mean Primary Frequency ~ 100 kHz ~ 100 kHz ~ 100 kHz ~ 100 kHz
Secondary Low Frequencies 10 kHz 4 – 15 kHz 4 – 15 kHz 4 – 15 kHz
Depth Below Transducer 0.5 – 100 m 0.5 – 400 m 0.5 – 400 m 0.5 – 500 m
Seabed Penetration up to 20 m up to 40 m up to 40 m up to 50 m
Heave / Roll / Pitch Comp. / – / – / – / – / – / – / / –
Technical Specifications A.1, page 165 A.2, page 167 A.3, page 169 A.4, page 171
High-Power
Solutions
when penetration is a key
requirement
for shallow and deep waters
medium-100 medium-70 deep-36 deep-15
Mean Primary Frequency ~ 100 kHz ~ 70 kHz ~ 36 kHz ~ 15 kHz
Secondary Low Frequencies 4 – 15 kHz 3 – 12 kHz 2 – 7 kHz 1 – 4 kHz
Depth Below Transducer 2 – 2,000 m 2 – 2,500 m 5 – 6,000 m 10 – 11,000 m
Seabed Penetration up to 70 m up to 100 m up to 150 m up to 250 m
Heave / Roll / Pitch Comp. / / – / / () / / () / /
Technical Specifications A.8, page 181 A.10, page 187 A.11, page 191 A.12, page 195
Remotely Operated
Solutions
when the focus is autonomy
for ASV / USV / ROV
integration at all scales
Smart
(*)
standard-usv medium-usv standard-rov
Mean Primary Frequency ~ 100 kHz ~ 100 kHz ~ 100 kHz ~ 100 kHz
Secondary Low Frequencies 10 kHz 4 – 15 kHz 4 – 15 kHz 5 – 15 kHz
Depth Below Transducer 0.5 – 100 m 0.5 – 500 m 2 – 2,000 m 0.5 – 500 m
Seabed Penetration up to 20 m up to 50 m up to 70 m up to 50 m
Heave / Roll / Pitch Comp. / – / – / / – / / – / – /
Technical Specifications A.1, page 165 A.5, page 173 A.9, page 185 A.7, page 177
* The “smart” model is also used within the Innomar “autonomous” ASV, see A.15 on page 205
Multi-Transducer and
Sidescan Solutions
when 3D sub-seabed data
gives additional answers
for buried objects & cables
quattro sixpack sidescan-100 xxx-plus
(**)
(for “compact”)
Mean Primary Frequency ~ 100 kHz ~ 100 kHz 100 kHz 250 / 410 / 600
Secondary Low Frequencies 4 – 15 kHz 4 – 15 kHz – –
Depth Below Transducer 0.5 – 30 / 500 m 0.5 – 30 / 900 m 1 – 50 m 1 – 30 m
Seabed Penetration up to 20 / 50 m up to 20 / 60 m – –
Heave / Roll / Pitch Comp. / – / – / – / – / – / – / – / –
Technical Specifications A.13 on page 199 A.14, page 203 A.16, page 207
** The “light-plus” and “standard-plus” models are obsolete and out of production.
