A.16 Innomar light-plus & standard-plus SBP with
Sidescan (OBSOLETE)

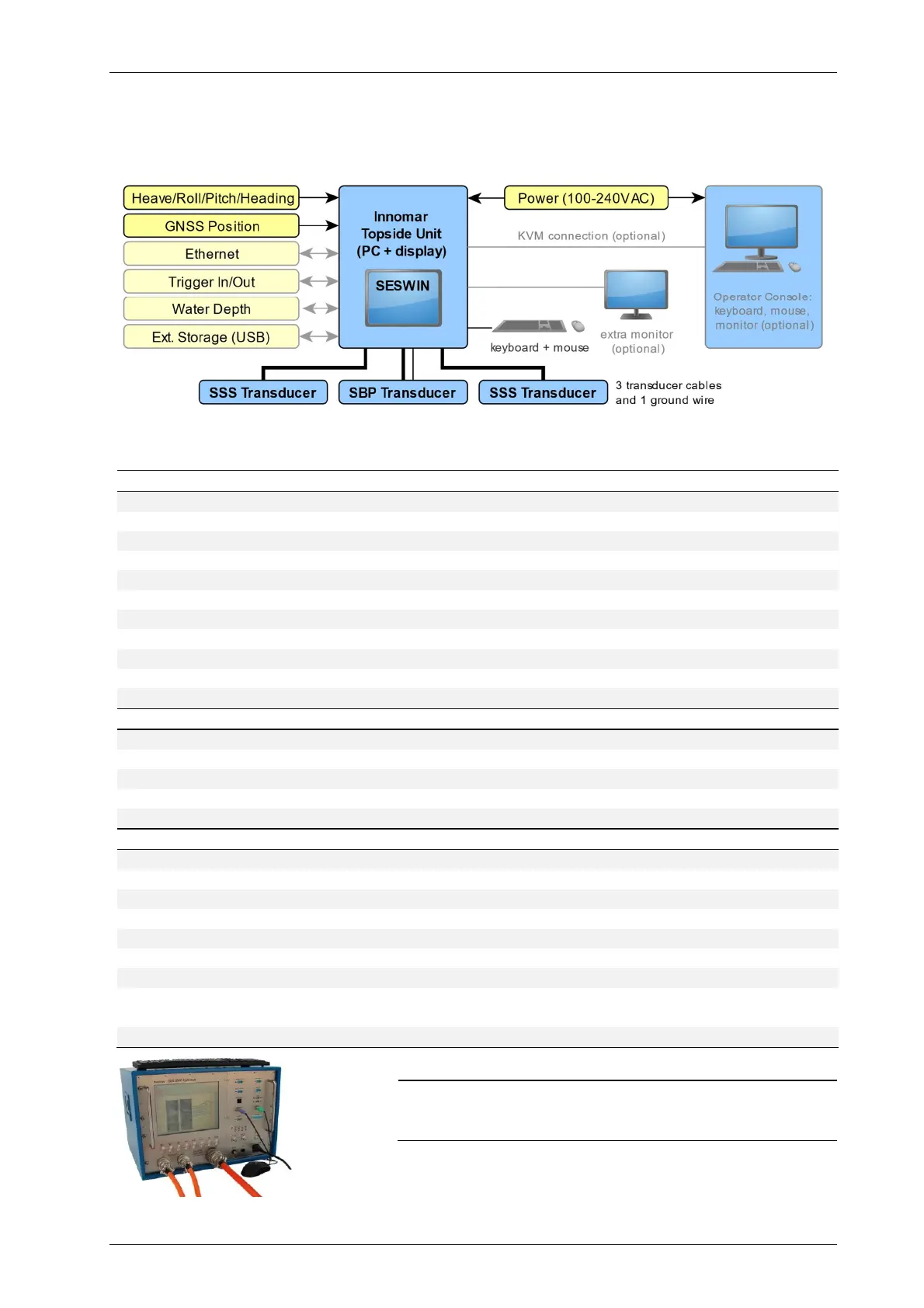

System Components / Wiring Schematic
Main Technical Specifications “light-plus”
Sub-Bottom-Profiler (SBP)
SBP primary frequency range (PHF) approx. 100 kHz (band 85 – 115 kHz)
SBP primary source level > 238 dB//µPa re 1m
SBP secondary low frequencies (SLF) 4, 5, 6, 8,10,12, 15 kHz (centre frequency, user selectable)
SBP SLF total frequency band up to 2 – 22 kHz
SBP SLF pulse type Ricker, CW
SBP SLF pulse width 0.07 – 1 ms (user selectable)
SBP beam width (-3dB) about ±2° for all frequencies / footprint <7% of water depth
SBP heave / roll / pitch compensation heave; depending on external sensor data
SBP water depth range 0.5 – 400 m
SBP sediment penetration up to 40 m (depending on sediment type and noise)
SBP sample / range resolution <1 cm / up to 5 cm (depending on pulse settings)
Sidescan Sonar (SSS)
SSS water depth range 1 – 30 m
SSS frequency 250, 410, 600 kHz
SSS source level > 210 dB//µPa re 1m
SSS beam width (-3dB) approx. 0.8° × 58° for all frequencies
SSS pulse type / width CW (40, 80 µs); LFM chirp (500 µs / 35 kHz bandwidth)
General
Pulse rate up to 50 pings/s (multi-ping mode available)
Data acquisition digital 24 bit / 96 kHz; envelope or full waveform
External sensor interfaces HRP sensor, GNSS, Depth
Bottom detection internal (HF and SLF data) or external depth
Depth accuracy (2 cm @ 100 kHz / 4 cm @ 10 kHz) + 0.06% of water depth
Power supply 100 – 240 V AC / 50 – 60 Hz (fuse 16 A / slow)
Power consumption <250 W (max. power-on inrush current 20 A / <100 ms)
Environmental conditions Storage: -10…+60°C / <90% non-condensing rel. humidity
Operation: 0…+35°C / <70% non-condensing rel. Humidity
Production Start / End 2009 / 2017
Topside Unit
Dimensions (L×W×H) 52 cm × 40 cm × 35 cm
Housing 19 inch / 7U
Weight about 35 kg
