User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN 63
Innomar Technologie GmbH (2023-01) 63

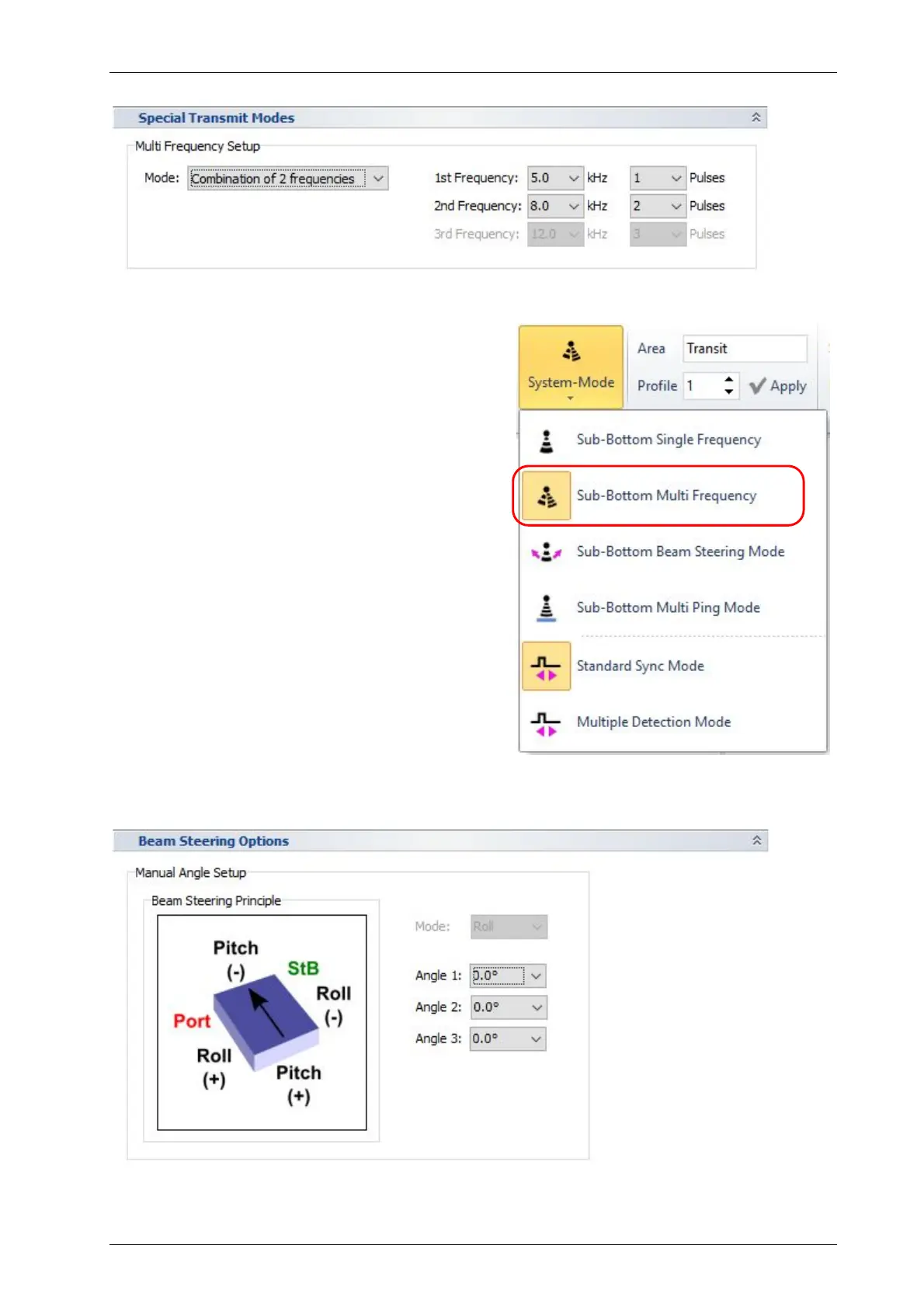

5.11.6 System Setup – Settings – General – Special Transmit Modes
This item is not available with the INNOMAR “smart” model.
Multi Frequency Setup
It is possible to transmit two or three SBP
frequency / pulse-width combinations sub-
sequently. Centre frequency and pulse width can
be chosen arbitrarily.
In Multi Frequency Mode the number of
frequency/pulses combinations used reduces
pulse repetition rate per frequency/pulse setting. If
two settings are used, every second ping is using
the first setting and the pings in between the
second setting. This results in half the ping rate for
each setting.
All necessary settings are made in this “Special
Transmit Modes” dialog while the transmit mode
itself is activated via “Home – General – System
Mode” menu, see picture on the right and section
5.9.1 on page 46.
5.11.7 System Setup – Settings – General – Beam Steering Options
This item is not available with the INNOMAR “smart”, “compact” and “light” models.
