10 Innomar SES-Convert Software
This chapter describes how INNOMAR data files can be converted into the SEG-Y data format,
which is often used by seismic processing software. Make sure to convert the “RAW” or “SES3”
data files; “SES” data files are not sufficient for SEG-Y data processing.
10.1 Example data at Innomar’s ISE post-processing software

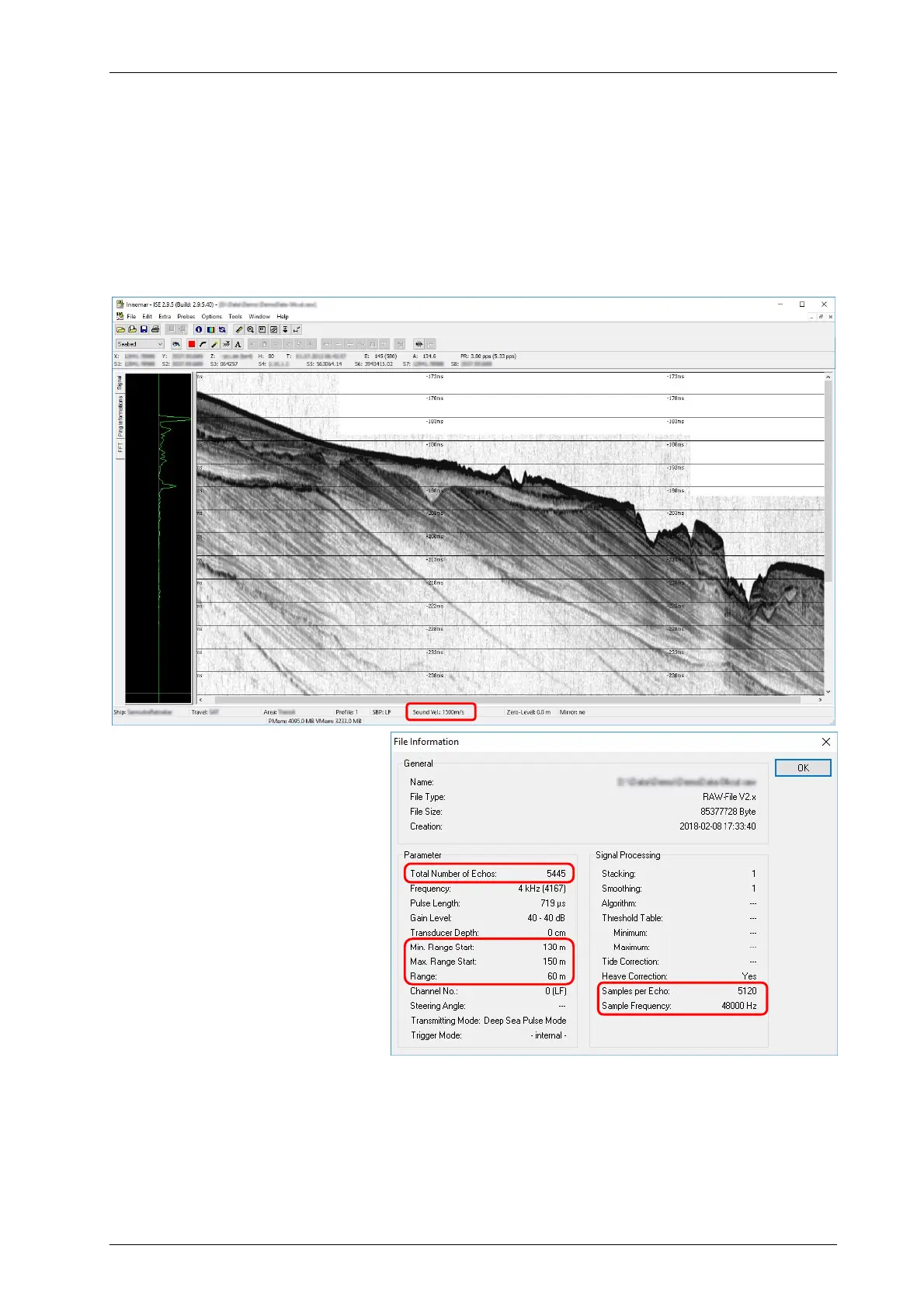

The following picture shows a INNOMAR SBP data example as viewed using the INNOMAR ISE
post-processing software (processed RAW data file: envelope / amplitude view).
The screen shot on top shows
data with TWT lines in ms-scale to
have a better comparison with the
SEG-Y data shown later on.
According to the screen shot on
the right, there are 5445 traces
with 5120 samples each within
the data file. Data were sampled
in a range of 60 m (80 ms),
starting between 130 m (173 ms)
and 150 m (200 ms).
Sample frequency was 48 kHz
(data were recorded with the
INNOMAR “deep-36” model).
