14 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
14 Innomar Technologie GmbH (2023-01)
1.3 What is shipped?
Most models are shipped in two boxes:
BOX 1:
o Topside unit
o Bag with software and manuals on USB thumb drive
(and optional ISE USB dongle)
o Printed Quick-Start sheet
o Accessories like cables, keyboard and mouse
BOX 2
o Transducer with cable
o Extra ground wire
o Printed handling instructions
o Accessories like rubber washers, washers, hex nuts and tools

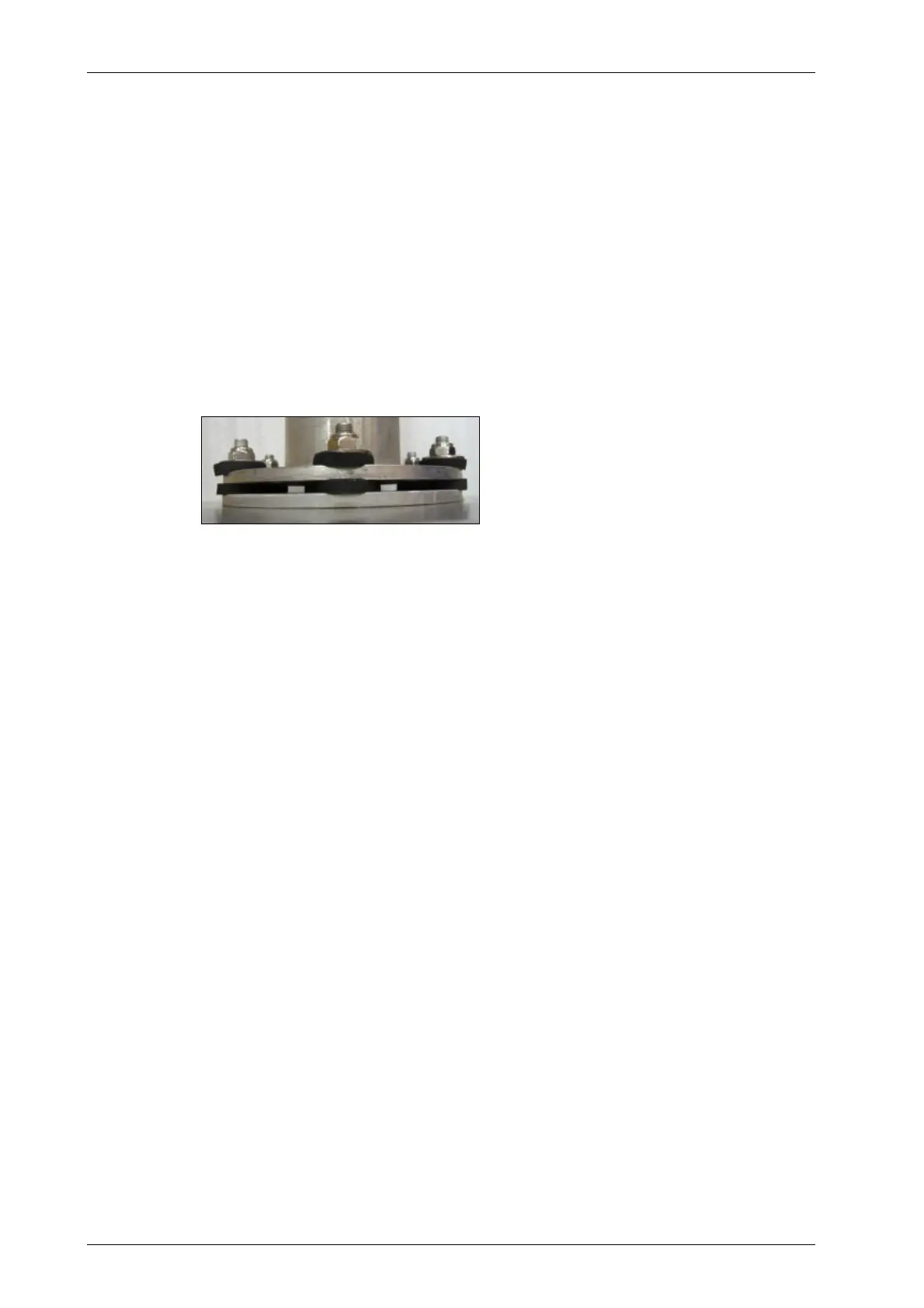

This picture illustrates how to use the provided
mounting material for the transducer
For model specific items detailed technical specifications, wiring diagrams, weights and dimen-
sions as well as drawings of the transducers, please see the appendix as given in the tables on
next page.
All items of the INNOMAR systems are shipped in strong transport boxes with anti-shock foam.
These boxes are fitted for all kind of transportation, including air- and sea shipping and should
be used during any transport and storage.
!
Before putting the system components back into the transport boxes after a survey,
make sure all items are cleaned and in dry condition.
During storage in dry environment keep the boxes open to allow air circulation.
