58 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
58 Innomar Technologie GmbH (2023-01)

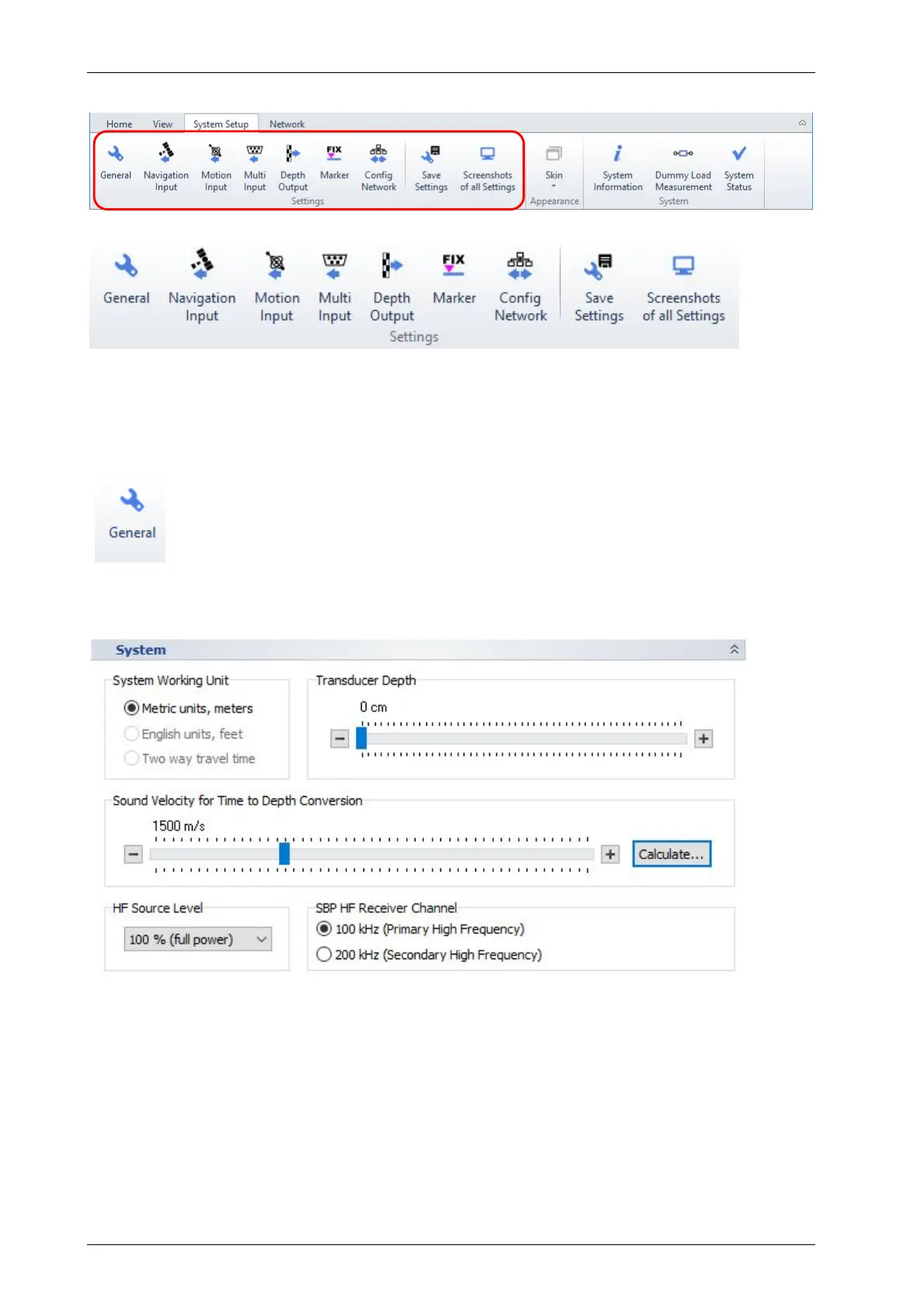

5.11 SESWIN System Setup – Settings
Several system parameters need to be properly set up within the “System Setup” menu before
the survey starts. Most menu items are disabled once data logging has started.
5.11.1 System Setup – Settings – General
This is used to set general system parameters like transducer draught and
synchronisation/trigger modes.
5.11.2 System Setup – Settings – General – System
For this Dialog see also section 7.2 on page 90.
System Working Unit: Sets the base unit for the system’s time regime. Is fixed to “meters” now,
but other units may be available in future.
Transducer Depth: Draught of the transducer’s bottom below water surface. This must be set
properly to get correct water depths and echo plots related to water surface. If set to 0 (zero) all
echo plots and depth values are related to the transducer’s face (bottom).
