96 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
96 Innomar Technologie GmbH (2023-01)

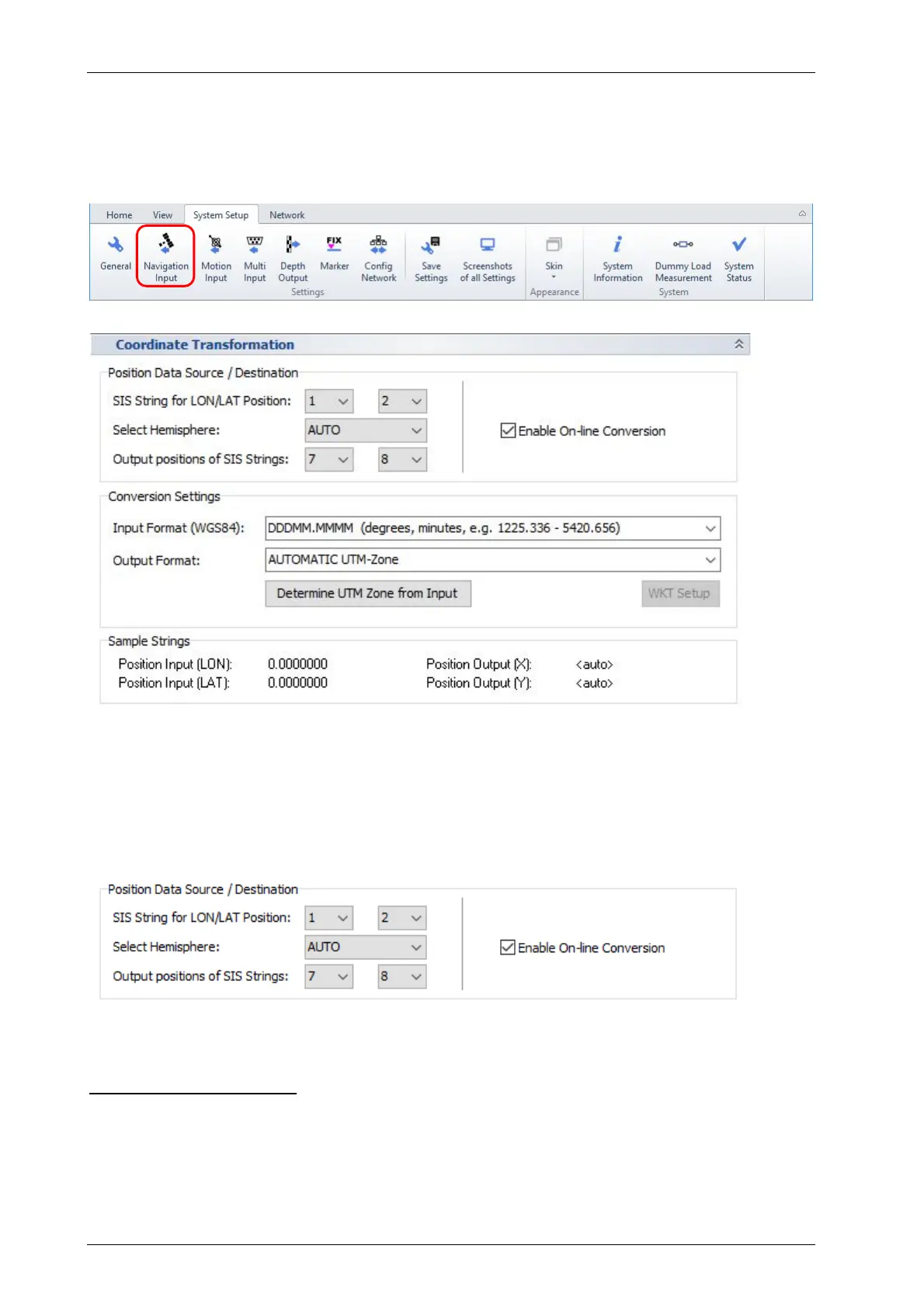

7.4 How to set up UTM conversion
Within SESWIN it is possible to transform WGS84 Latitude / Longitude coordinates into UTM
coordinates (Northing / Easting) by using either standard or user-defined transformation
parameters. This feature has to be set up in the SESWIN – System Setup – Settings – Navigation
Input – UTM Conversion tab, see section 5.11.11 on page 67.
7.4.1 Position Data Source / Destination
You have to set the SIS string IDs for WGS84 position data: longitude (LON) and latitude (LAT)
values as defined in the “Navigation Input” dialog, see previous section. East/West and
North/South hemisphere have to be specified or can be set to be detected from the GGA NMEA
sentence automatically.
The destination SIS string IDs have to be set as well. The new calculated X and Y position values
will replace any values that are stored at these IDs before!
Enable On-line Conversion: if checked the conversion takes place and the X, Y values are written
to the specified SIS strings.
!
Make sure not to overwrite any important values at the destination IDs!
