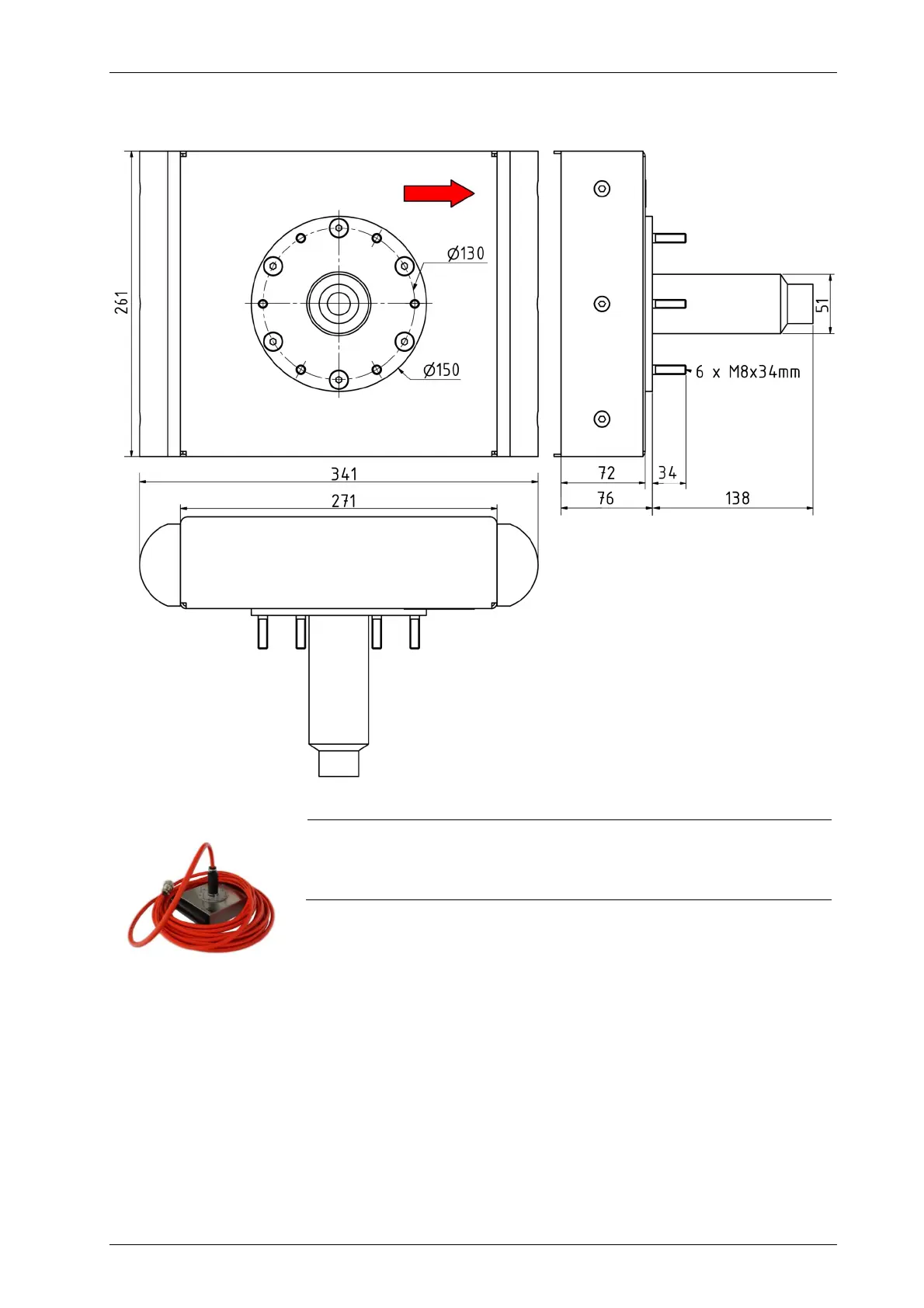

A.6 Transducers Innomar compact / light / standard
Pole-Mount Transducer
Dimensions (L×W×H) 34 cm × 26 cm × 8 cm
Weight “compact” and “light” c. 22 kg (incl. 20 m cable)
Weight “standard” c. 30 kg (incl. 30 m cable)
Cable / Connector Diameter c. 20 (22) mm / c. 54 mm
The cable is moulded non-removable to the transducer, the standard
cable lengths are given in the table.
For hull- or moon-pool installations there is also a special mounting
frame available, see next page. The fairings (black plastic parts) at the
transducers must not be removed by the user. Please ask INNOMAR for
advice if you need them removed, e.g. for mounting into a moon-pool.
Transducers for the INNOMAR “compact”, “light” and “standard” models have the same
dimensions, but differ in electrical connections. Make sure to use the correct transducer and
check the serial number!
For the “standard” transducer the correct orientation (arrow pointing forward to the vessel’s bow)
is important for correct beam stabilisation!
Transducer mounting via six threaded
studs (M8, length c. 34 mm) arranged
on a 130 mm circle.
