174 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
174 Innomar Technologie GmbH (2023-01)

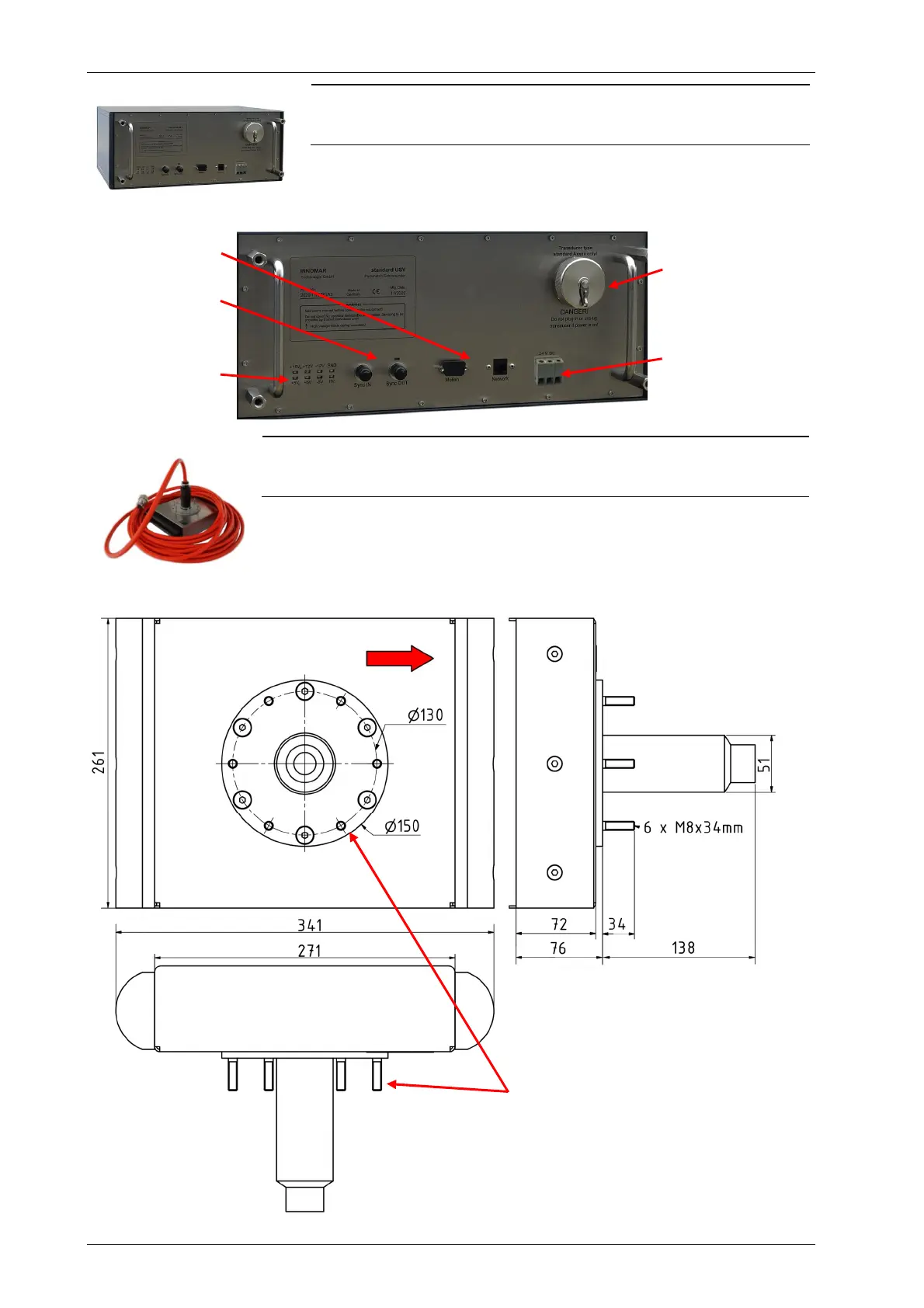

Topside Unit
Dimensions (W×D×H) 45 cm × 36 cm × 18 cm
Housing 19 inch / 4U rack-mountable
Weight c. 16 kg
This unit requires an external Windows® based control- and data
acquisition PC, which connects via Ethernet to the topside. Please
note, the air-intake openings at the bottom must not be blocked.
Motion IN
Trigger IN / OUT
Voltage
indicators
(LEDs)
Transducer
connector
Power input
Transducer
S/N starts with “A”
Dimensions (W×D×H) 34 cm × 26 cm × 8 cm
Weight in air c. 15 kg (excl. cable)
Cable / Connector Diameter c. 22 mm / c. 54 mm
The transducer cable is moulded non-removable to the transducer. The
cable length is 7 to 15 meters (default 10m).
The fairings (black parts) can be removed for hull-mounting; ask INNOMAR
for instructions. There is also a hull-mount frame with shock absorbers.
Transducer mounting via six threaded
studs (M8, length c. 34 mm) arranged
on a 130 mm circle. Make sure the
correct orientation (arrow pointing
forward) for correct beam-steering.
For drawings see also pages 175 f.
