156 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
156 Innomar Technologie GmbH (2023-01)

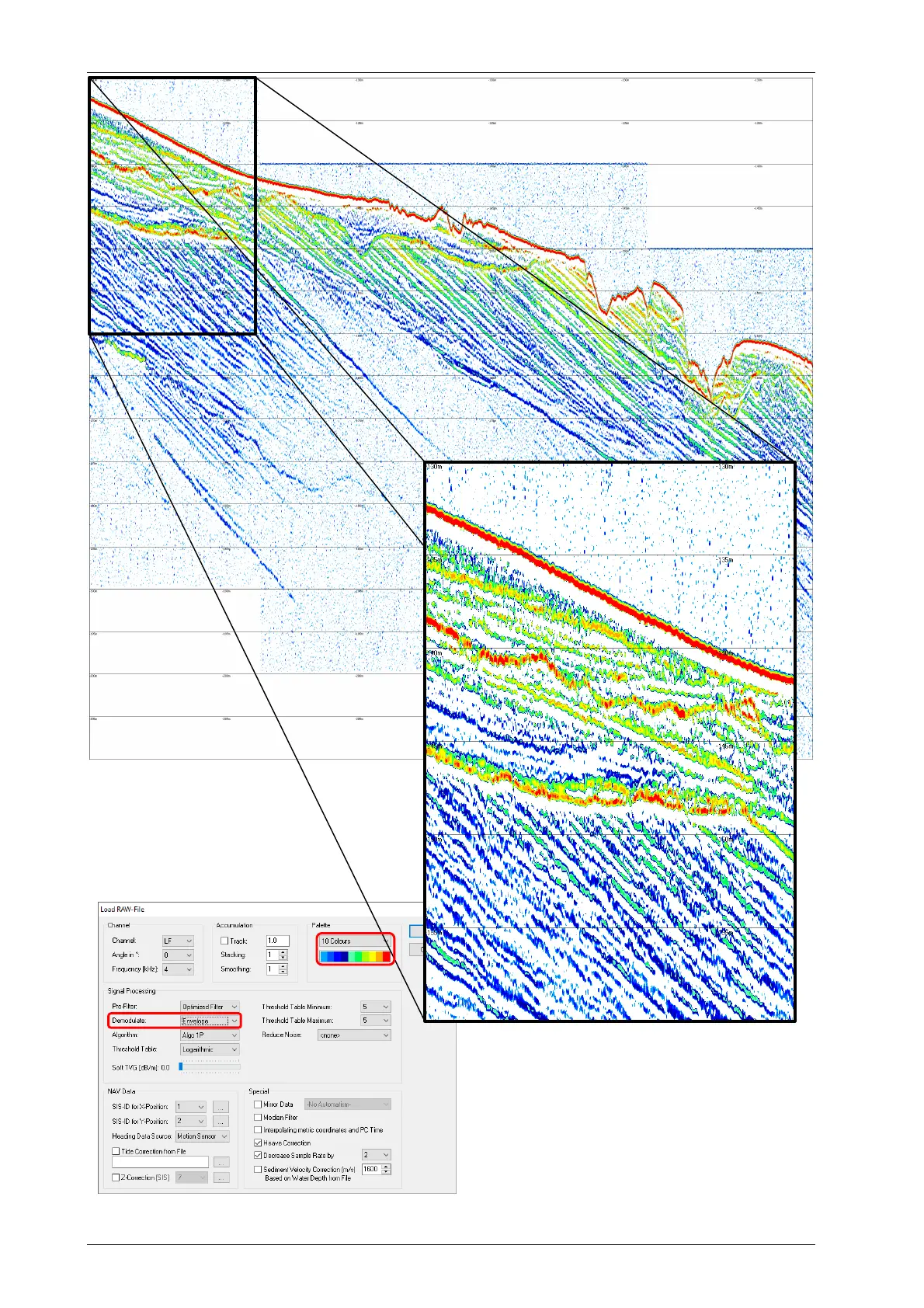

Echo plot from RAW file format
(3800 samples per trace of 60m)
and zoom (25% original size).
In the ISE “Load RAW File” dialogue,
set “Demodulate” to “Envelope” or
“Envelope + Post Filter”
use a colour “Palette”
“Pre-Filter” might be at any setting,
but
“Optimized Filter” is a good choice.
