166 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
166 Innomar Technologie GmbH (2023-01)

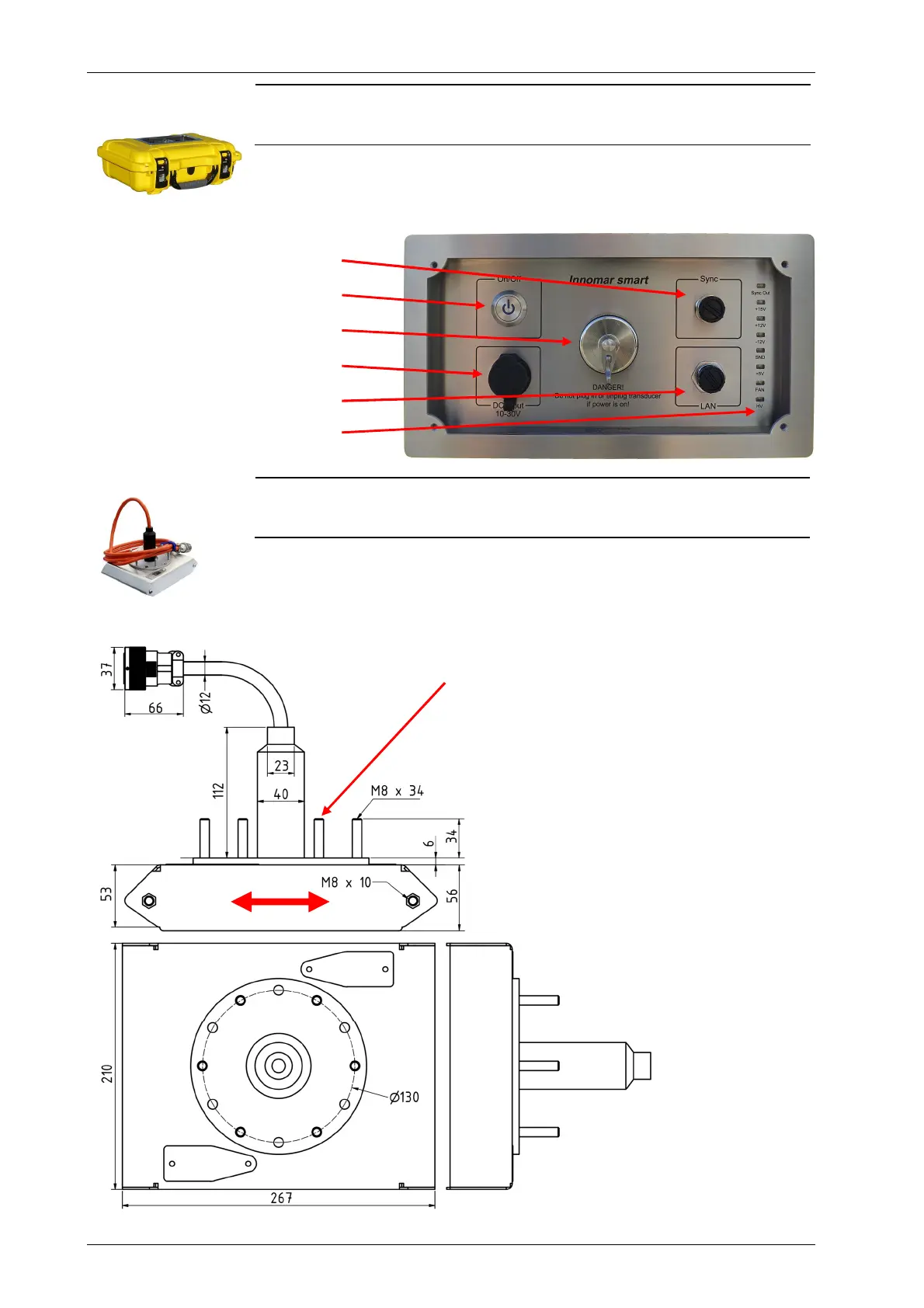

Topside Unit
Dimensions (W×D×H) 47 cm × 36 cm × 17 cm
Housing Plastic case IP65
Weight c. 9 kg
For operating the topside unit an external control computer (tablet or laptop
PC; MS Windows
®
operating system) is required. This PC is not part of the
supply, but may be ordered separately.
Trigger IN / OUT connector
Power ON/ OFF switch
Transducer connector
Power connector
Ethernet connector (M12)
Status LEDs
Transducer
S/N starts with “M”
Dimensions (W×D×H) 27 cm × 21 cm × 6 cm
Weight in air incl. 15m cable c. 10 kg
Cable / Connector Diameter c. 12 mm / c. 37 mm
The transducer is used for transmitting and receiving. It may be pole- or
hull-mounted or used in a moon-pool. There is no towed equipment.
The transducer cable is moulded non-removable to the transducer. The
default cable length is 15 meters.
Transducer mounting via six threaded studs
(M8 x 34 mm) arranged on a 130 mm circle.
Make sure the correct orientation along vessel
(transducer front and aft are the same).
