168 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
168 Innomar Technologie GmbH (2023-01)
Topside Unit
Dimensions (W×D×H) 30 cm × 40 cm × 20 cm
Housing ½ 19 inch / 4U
Weight c. 15 kg
For operating the topside unit an external control computer (MS Windows
®
operating system) is required. This PC is not part of the supply, but may be
ordered separately.
Power indicators
Trigger IN / OUT
(BNC)
Ethernet (RJ45)
Ground wire socket
Power ON/ OFF switch
(push-button)
Transducer connector
Power connector (mains)
Transducer
S/N starts with “C”
Dimensions (W×D×H) 34 cm × 26 cm × 8 cm
Weight in air incl. 20m cable c. 22 kg
Cable / Connector Diameter c. 20 mm / c. 54 mm
The transducer cable is moulded non-removable to the transducer. The
default cable length is 20 meters.
The fairings (black parts) can be removed for hull-mounting; ask INNOMAR
for instructions. There is also a hull-mount frame with shock absorbers.

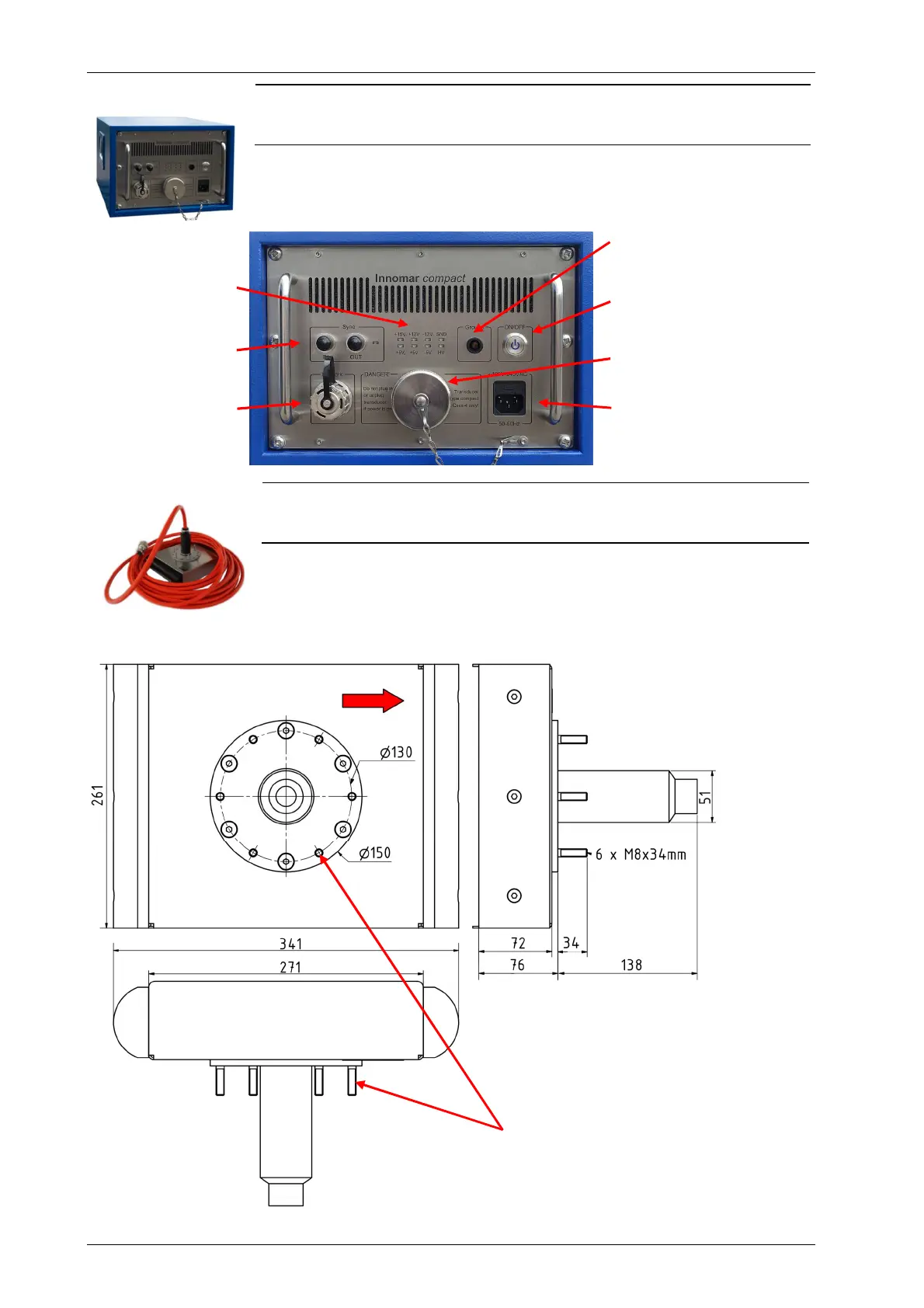

Transducer mounting via six threaded
studs (M8, length c. 34 mm) arranged
on a 130 mm circle.
For drawings see also pages 175 f.
