172 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
172 Innomar Technologie GmbH (2023-01)

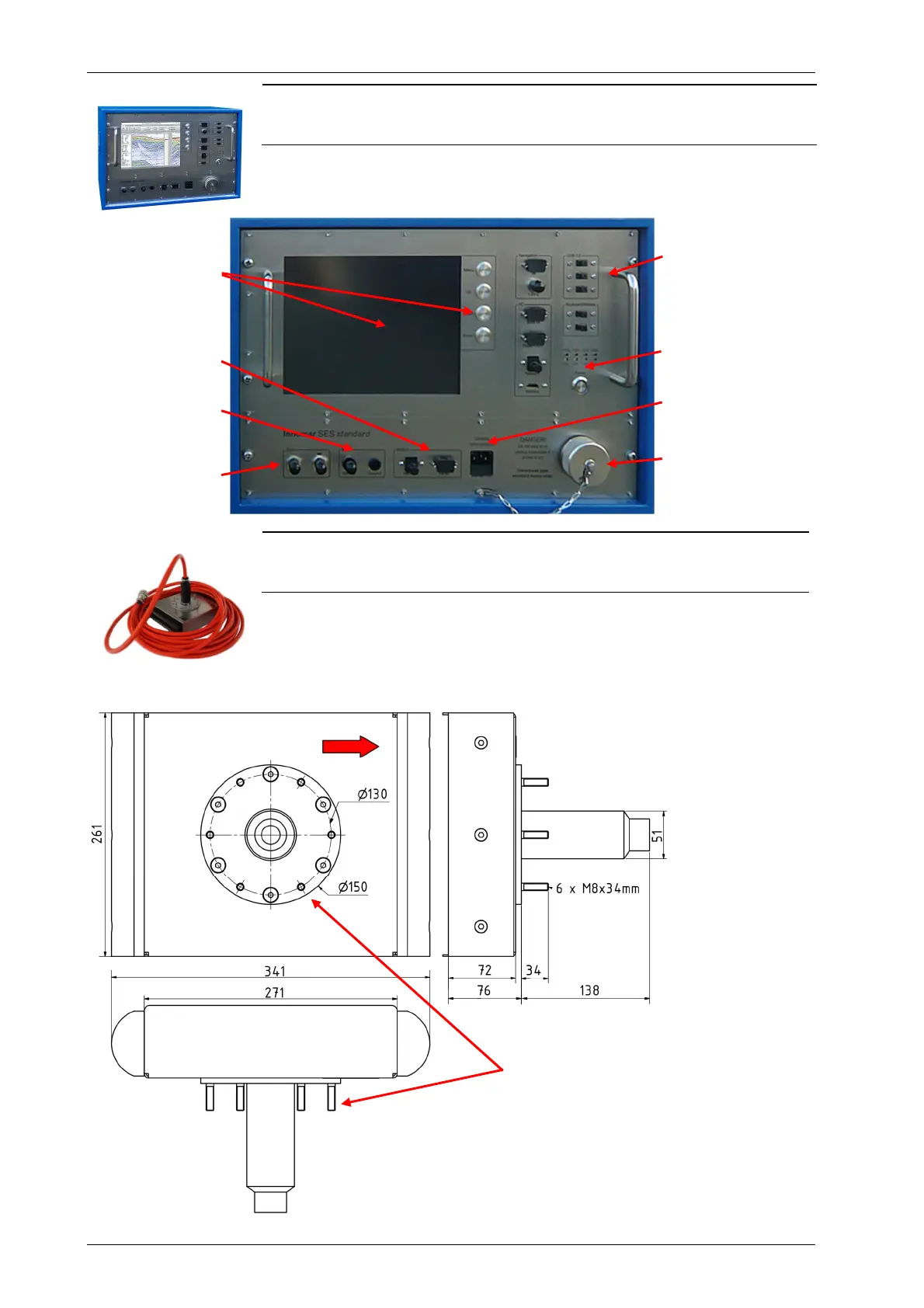

Topside Unit
Dimensions (W×D×H) 52 cm × 40 cm × 34 cm
Housing 19 inch / 7U
Weight c. 35 kg
The control- and data acquisition PC is integrated into the topside unit.
If required, this PC can be remote-controlled.
TFT display +
control buttons
Motion IN
LF out (BNC),
ground wire
Trigger IN / OUT
PC interfaces
(RS232 COM ports,
USB, HDMI monitor,
RJ45 Ethernet)
Power ON/ OFF +
power indicators
Power connector
Transducer
connector
Transducer
S/N starts with “A”
Dimensions (W×D×H) 34 cm × 26 cm × 8 cm
Weight in air incl. 30m cable c. 30 kg
Cable / Connector Diameter c. 22 mm / c. 54 mm
The transducer cable is moulded non-removable to the transducer. The
default cable length is 30 meters.
The fairings (black parts) can be removed for hull-mounting; ask INNOMAR
for instructions. There is also a hull-mount frame with shock absorbers.
Transducer mounting via six threaded
studs (M8, length c. 34 mm) arranged
on a 130 mm circle. Make sure the
correct orientation (arrow pointing
forward) for correct beam-steering.
For drawings see also pages 175 f.
