186 User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN
186 Innomar Technologie GmbH (2023-01)

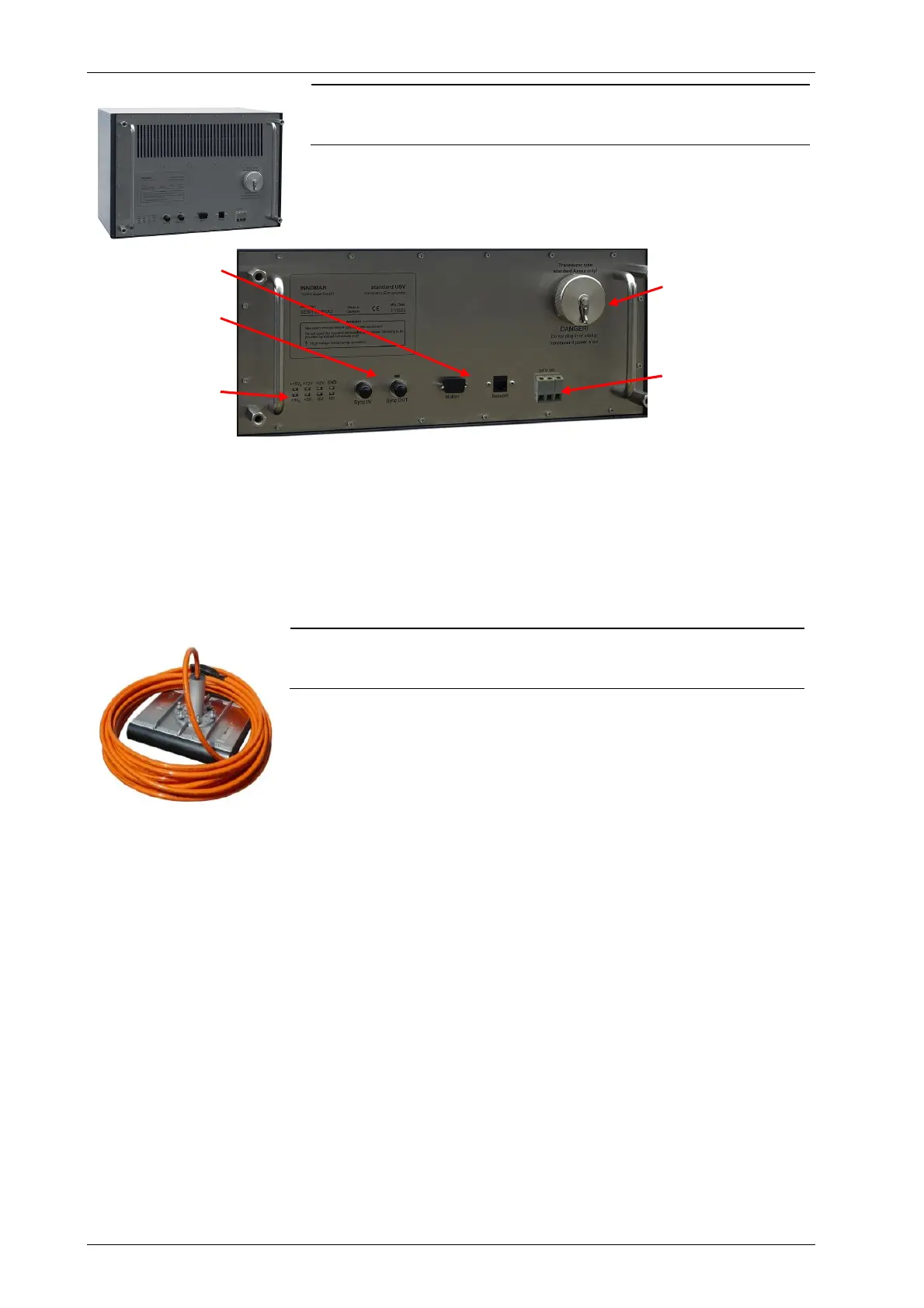

Topside Unit
Dimensions (W×D×H) 45 cm × 36 cm × 31 cm
Housing 19 inch / 7U rack-mountable
Weight c. 24 kg
This unit requires an external Windows® based control- and data
acquisition PC, which connects via Ethernet to the topside.
Motion IN
Trigger IN / OUT
Voltage
indicators
(LEDs)
Transducer
connector
Power input
The topside unit has to be installed on a dry and safe place and should be fixed to avoid
mechanical destructions during rough sea.
!
Protect the unit and the installation place against water!
Make sure that the cooling slots are open and the fans can get air! There are openings
for air-intake at the front panels of the topside units. Fans are installed in the rear panels.
Transducer
S/N starts with “E”
Dimensions (L×W×H) 50 cm × 50 cm × 12 cm
Weight in air c. 40 kg (excl. cable)
Cable / Connector Diameter c. 22 mm / c. 54 mm
The transducer cable is moulded non-removable to the transducer.
The cable length can be chosen from 7 to 15 meters (default 10m).
The fairings (black parts) can be removed for hull-mounting; ask
INNOMAR for instructions. There is also a hull-mount frame with shock
absorbers.
