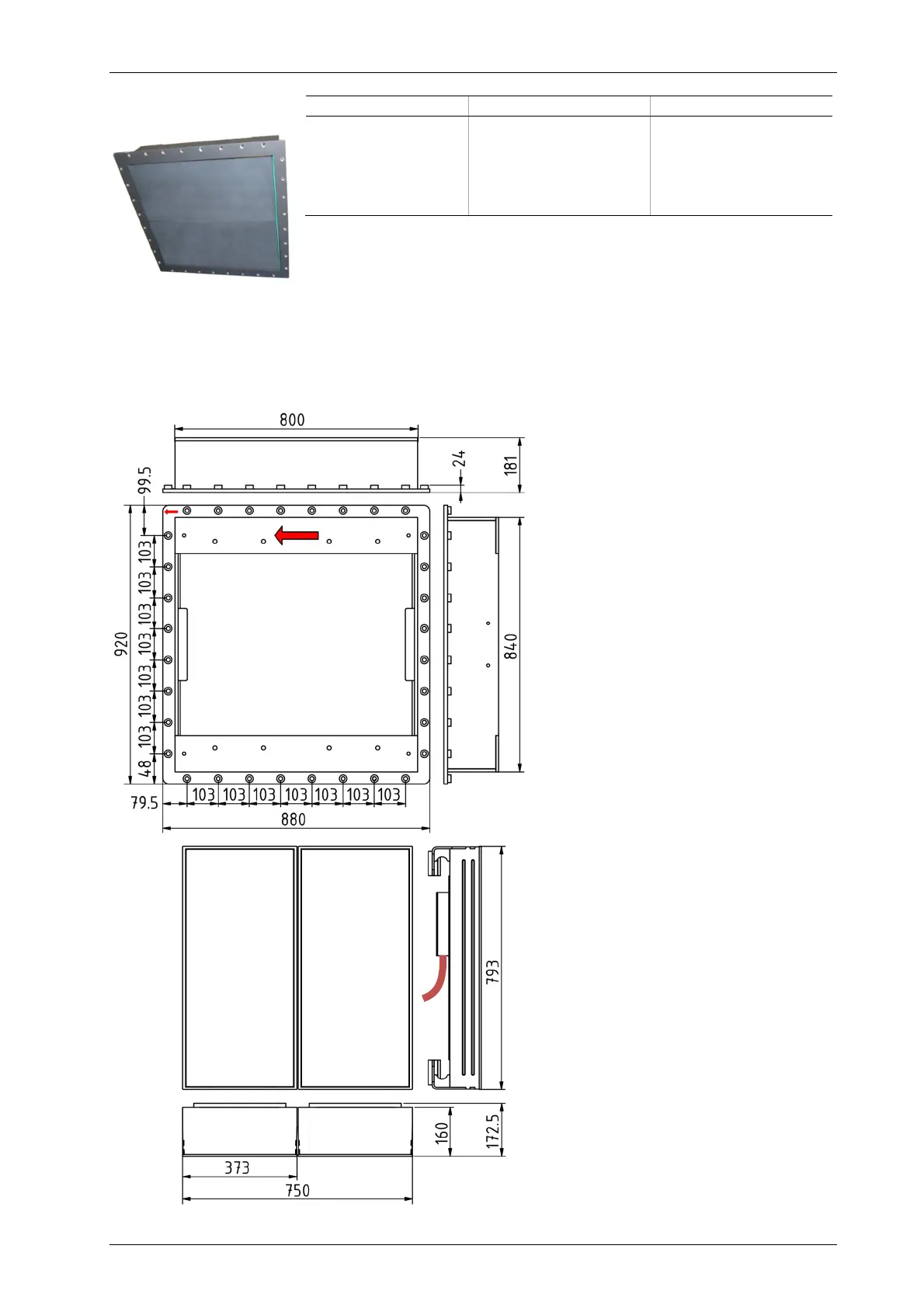

Transducer
excl. mounting frame incl. mounting frame
Dimensions (L×W×H) 75 cm × 80 cm × 16 cm 88 cm × 92 cm × 18 cm
Weight (excl. cables) c. 165 kg c. 245 kg
Weight (incl. cables) c. 215 kg (“Basic” ver.)
c. 300 kg (“RP” version)
c. 300 kg (“Basic” vers.)
c. 380 kg (“RP” version)
Cable / Connector Ø c. 22 mm / 54 mm c. 22 mm / 54 mm
The transducer consists of two sections and there is one cable moulded
non-removable to each transducer section. For the “RP” model version
there are three cables per section.
The default cable length is 30 meters.
The transducer sections are mounted into a frame with shock absorbers to avoid structure-borne
noise picked up. This frame can be mounted into a sea chest, blister or gondola using 32 bolts
M12. It can also be used in a moon-pool or drop-keel.
Make sure the correct orientation (arrow
pointing forward) for beam-steering.
Transducer mounting frame without transducer
sections
Two transducer sections (seen from below).
The cable (orange) is moulded to the section
and cannot be disconnected. Please note that
at delivery the sections are usually already
mounted into the frame.
