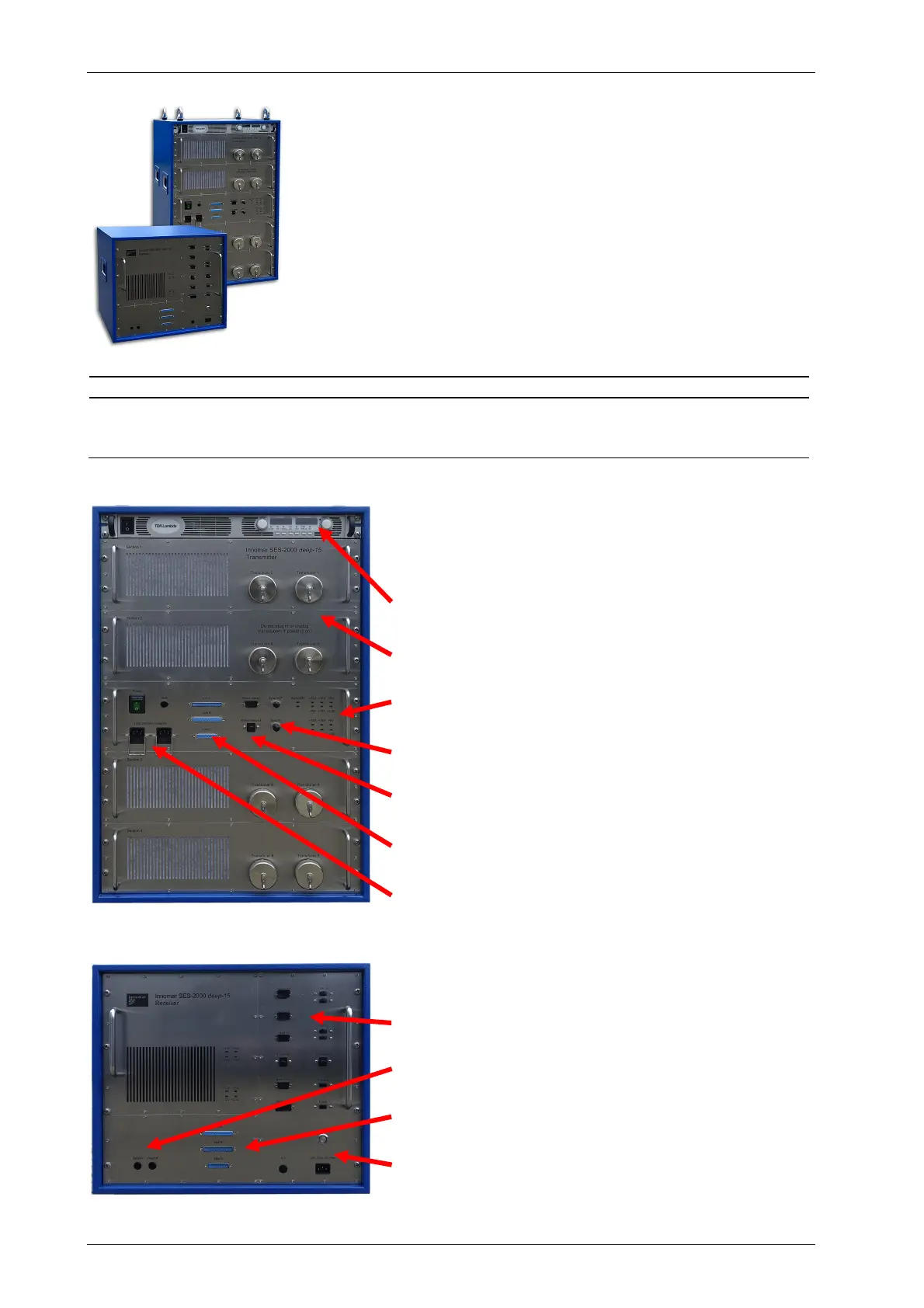

Transceiver Units
There are two topside units: one transmitter unit (19’’/16U) and one
receiver unit (19’’/9U). Both units have to be placed close together,
preferably on shock-absorbers (provided by Innomar, not shown on
the photo) into an air-conditioned room. There has to be enough
space for connections and maintenance as well as air venting around
the units.
For operating the system there is an operator console with monitor,
keyboard, mouse connected to the receiver unit via KVM (provided
by Innomar, dedicated Ethernet cable required, distance up to 100
m).
Transmitter Unit Receiver Unit Operator Console
Dimensions (L×W×H) 0.52 m × 0.50 m × 0.74 m 0.52 m × 0.40 m × 0.44 m n/a
Housing type 19 inch / 16U 19 inch / 9U n/a
Weight c. 95 kg (incl. cables) c. 40 kg (incl. cables) c. 25 kg
Transmitter Unit This unitnit contains all the transmitter electronics with
power supply and there are eight (8) connectors for the
transducer cables (one cable per module, see below).
Make sure to connect according to the labels.
Transmitter power supply
Transducer connectors
Power control LEDs
Sync OUT/IN (BNC connectors)
Motion data IN (serial RS232 or Ethernet)
Link to Receiver Unit (3 cables)
Power switch and mains connectors
Receiver Unit This unit contains the receiver electronics and the data
acquisition & control computer.
PC interfaces (UART, USB, HDMI, ...)
Ground cable to Transmitter Unit
Link to Transmitter Unit (3 cables)
Power switch and mains connector, main fuse
