User’s Manual INNOMAR Parametric Sub-Bottom Profilers / SESWIN 209
Innomar Technologie GmbH (2023-01) 209
Transducers
SBP Transducer
Dimensions (L×W×H) 34 cm × 26 cm × 8 cm
Weight “light-plus” c. 22 kg (incl. 20 m cable, letter “A”)
Weight “standard-plus” c. 30 kg (incl. 30 m cable, letter “C”)
Sidescan Transducers
Dimensions (L×W×H) 52 cm × 6 cm × 6 cm
Weight incl. 20 m cable about 10 kg
There are arrows at the transducers, which have to point in forward direction (to the bow).
All transducer cables are moulded non-removable to the transducer, standard cable length is 20
meters for the sidescan transducers. The fairings at the transducers (black plastic parts) must
not be removed by the user. Please ask INNOMAR for advice if you need them removed.
For SBP transducer drawings see page 175.

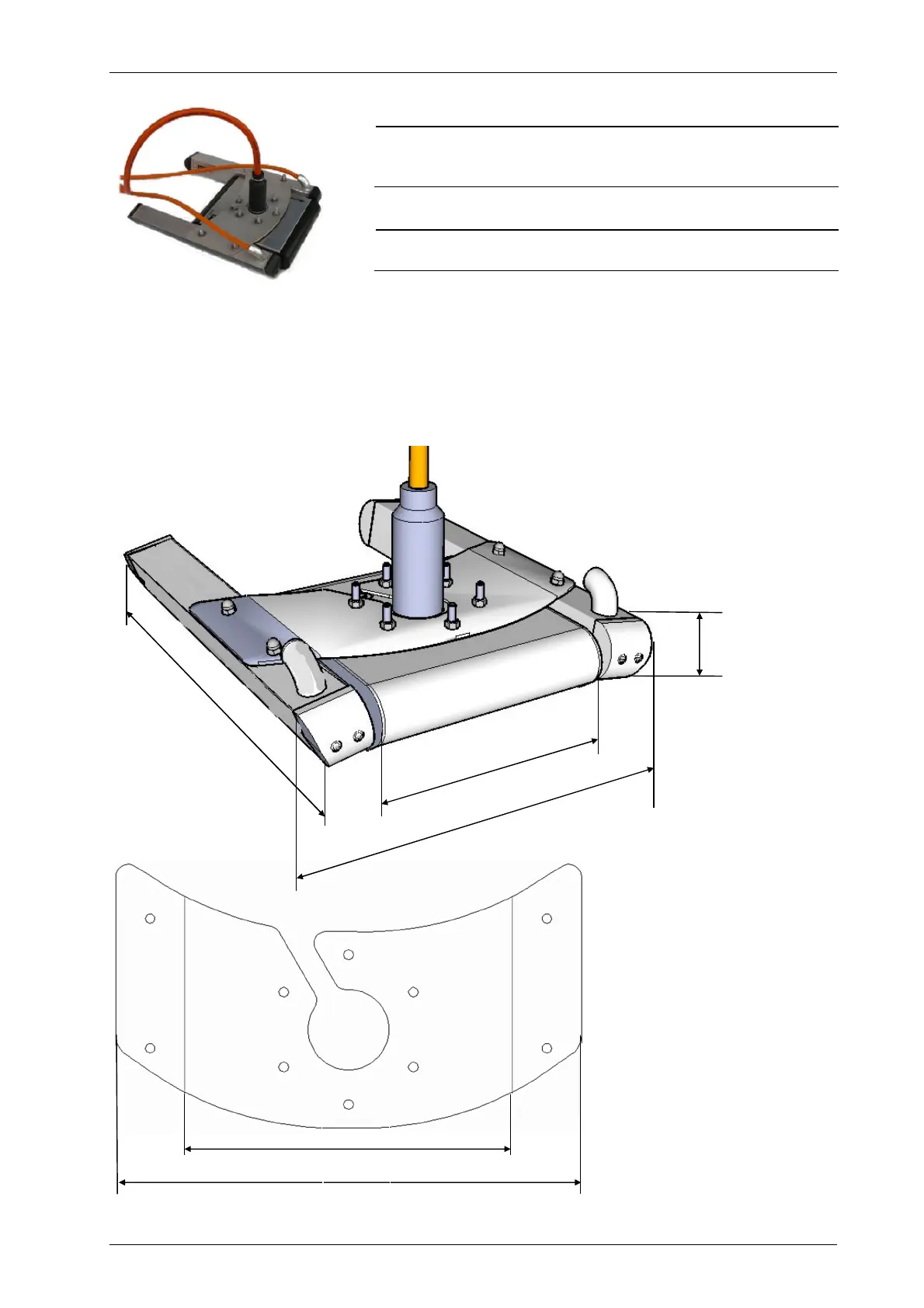

The sidescan transducers are attached to the SBP transducer using a mounting plate (provided
by INNOMAR).
405
261
522
76
285
405
All holes diameter 8.2mm.
